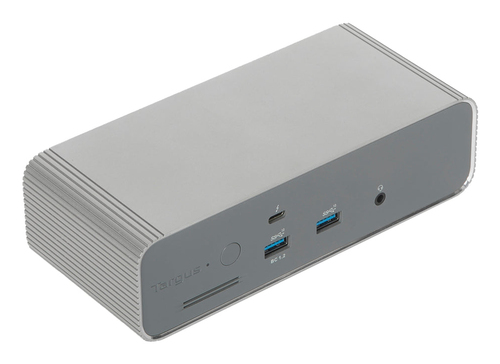

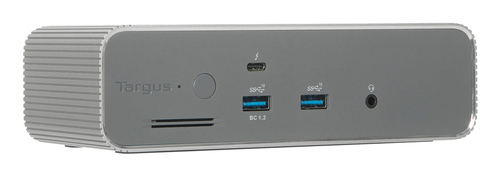

Targus DOCK230EUZ laptop dock/port replicator

DOCK230EUZ - 5063194002675

Targus DOCK230EUZ laptop dock/port replicator Wired Thunderbolt 5 Silver


Brand
TARGUS HARDWARE
Product code
DOCK230EUZ
SKU
3JD5CXOQKBVTI
EAN/GTIN
5063194002675

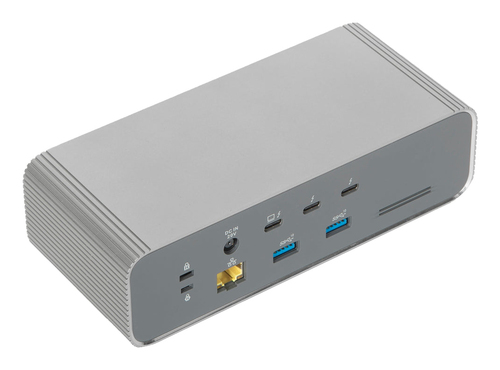

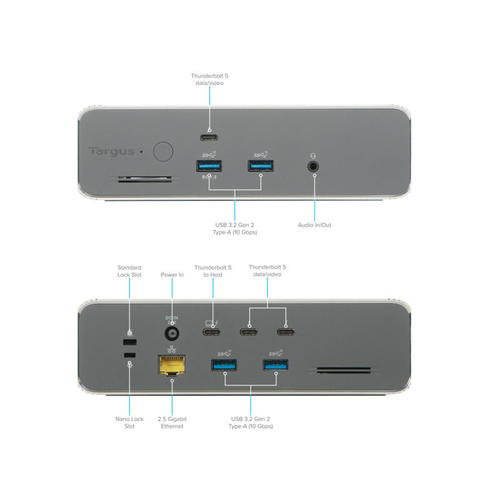

  • Supports single, dual, or triple 8K displays via three Thunderbolt 5 connectors
  • Power Delivery 3.1 up to 140W EPR
  • 1x Thunderbolt™ 5 upstream port
  • 3x Thunderbolt™ 5 downstream ports with up to 80 Gbps of data throughput and up to 120 Gbps display bandwidth
  • 4x USB 3.2 Gen 2 Type A (10 Gbps) ports (1 supports fast charging)
  • 1x 2.5 Gigabit Ethernet port
  • 1x 3.5mm combo Audio In/Out port for mics, speakers, and headphones
  • Integrated standard and nano security lock slots to safeguard equipment
  • VESA mount compatible (sold separately)
  • Supports displays, keyboard, mouse, and file sharing between two PCs with Intel Thunderbolt Share™ technology (license included)
€435.11 (Inc. VAT)
Sold Out
(Delivery 2-4 working days)

Product Info

Thunderbolt 5 Triple Video 8K EcoSmart Dock with 140W EPR, Silver

Targus DOCK230EUZ. Connectivity technology: Wired, Host interface: Thunderbolt 5, USB Power Delivery up to: 140 W. Ethernet LAN data rates: 2500 Mbit/s. Product colour: Silver, Data transfer rate: 80 Gbit/s, HD type: 8K Ultra HD. Power source type: AC, DC, Power supply: 180 W, Power plug type: Type A. Width: 178 mm, Depth: 78 mm, Height: 50 mm

Give your workspace the ultimate boost with the Thunderbolt™ 5 Triple Video 8K EcoSmart™ Docking Station with 140W EPR. Whether you’re juggling a multi-monitor setup or need some serious charging power, this dock has it all. Zip through data transfers at a lightning-fast 80 Gbps and enjoy up to three video streams at 120 Gbps, all thanks to Thunderbolt 5 connectivity. Plus, enjoy ultra-fast network connections with 2.5G Ethernet, all while keeping it powered up with a robust 140W EPR.

In addition to being speedy, this dock lets you multitask like a pro with two laptops by incorporating Intel’s Thunderbolt Share™ technology for seamless sharing of displays and files with just one keyboard and mouse.

And while a true powerhouse on the inside, it’s designed with recycled materials on the outside, making it the sustainable choice for earth-conscious power users.

Unmatched Speeds
Move over Thunderbolt 4 and USB4 and make way for the unbeatable Thunderbolt™ 5 speeds. Experience the next generation of docking with up to 3x the bandwidth over TB4 and USB. But don’t worry. It’s fully compatible with both TB4 and USB4 – making it a true team player. Don’t forget, it also supports elevated network speeds with its 2.5G Ethernet port – perfect for those high-performance needs.

Triple Video Support

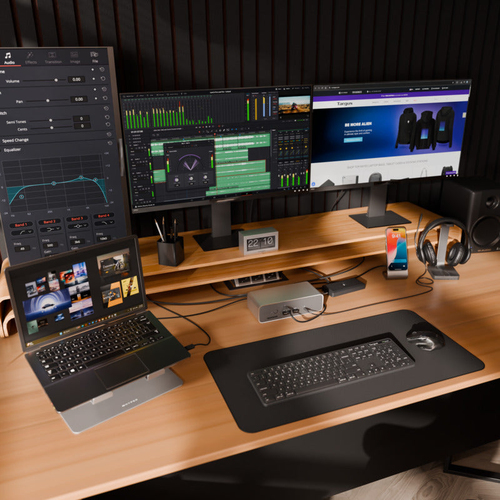

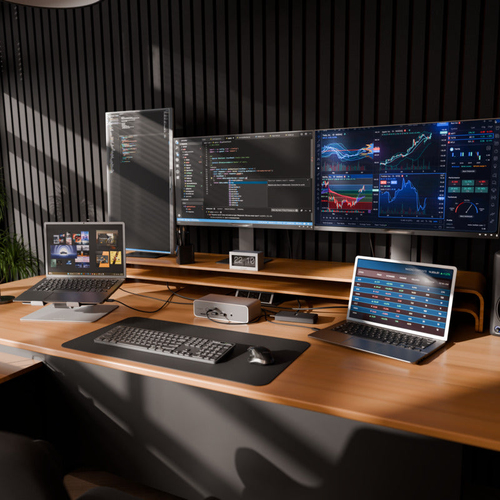

Maximize your productivity with the capability to connect up to three monitors. Our docking station transforms your workspace, allowing for effortless multitasking with single, dual even triple 8K resolution support.

Amped up Charging
Equip your high-performance laptop with equally impressive power. With up to 140W EPR, DOCK230 will keep your laptop and accessories charged and ready for action.

Ports for Peripherals
While stacked with Thunderbolt™ 5 ports, this dock also features four USB 3.2 Gen 2 Type-A ports for connecting those latest keyboards, exterior drives, and other peripherals needed to customize your workspace.

Eco-Friendly Exterior
Crafted with 75% recycled post-consumer plastics and aluminum, this dock combines outstanding performance with a commitment to sustainability, contributing to a greener future without compromising on speed or reliability.

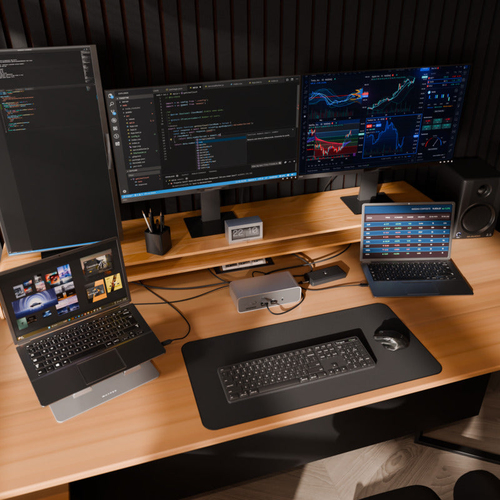

Do More with Thunderbolt™ Share
Elevate your productivity and collaboration with Intel’s Thunderbolt™ Share. Effortlessly share screens, files, or peripherals between two PCs at lightning-fast Thunderbolt™ speeds. Unlock this seamless PC-to-PC connection by downloading the included Thunderbolt Share software. See our user guide for additional details.

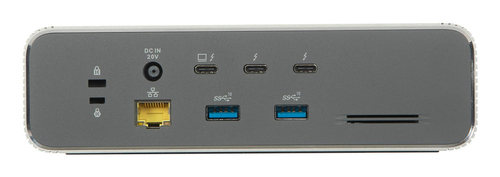

Ports & interfaces
Connectivity technology Wired
Host interface Thunderbolt 5
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4
USB Power Delivery (USB PD) Yes
USB Power Delivery revision 3.1
USB Power Delivery up to 140 W
Thunderbolt ports quantity 4
Thunderbolt 5 ports quantity 4
Microphone in No
Combo headphone/mic port Yes
Headphone outputs 1
Headphone connectivity 3.5 mm
DC-in jack Yes
Network
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 2500 Mbit/s
Performance
Card reader integrated No
Data transfer rate 80 Gbit/s
HD type 8K Ultra HD
Number of displays supported 3
Cable lock slot Yes
Cable lock slot type Nano, Targus
Product colour Silver
Housing material Aluminium, Plastic
Country of origin Thailand
Brand compatibility Any brand
Power
Power source type AC, DC

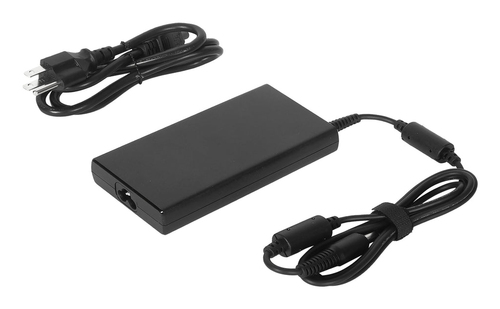

Power supply 180 W
Power plug type Type A
Power cable length 1.8 m
Software
Windows operating systems supported Yes
Mac operating systems supported Yes
Weight & dimensions
Width 178 mm
Depth 78 mm
Height 50 mm
Weight 2.28 kg
Packaging data
Quantity per pack 1 pc(s)

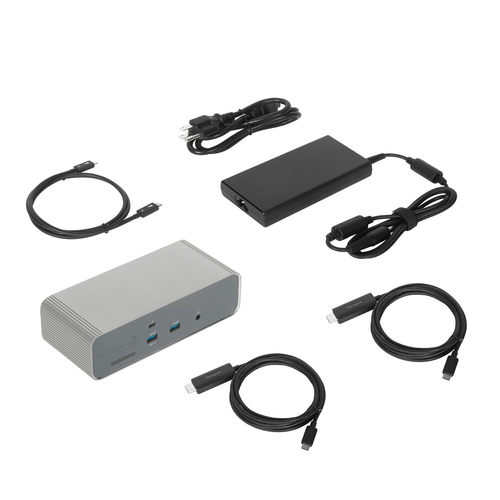

Packaging content

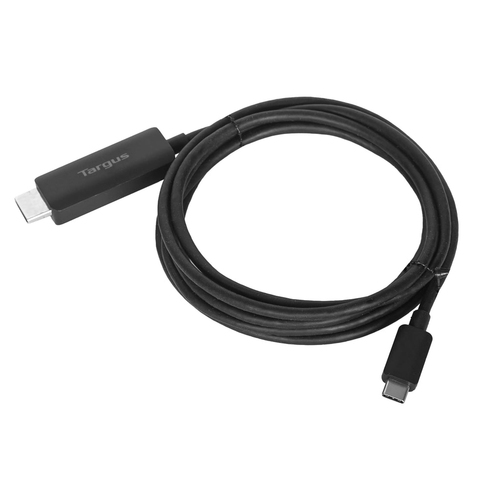

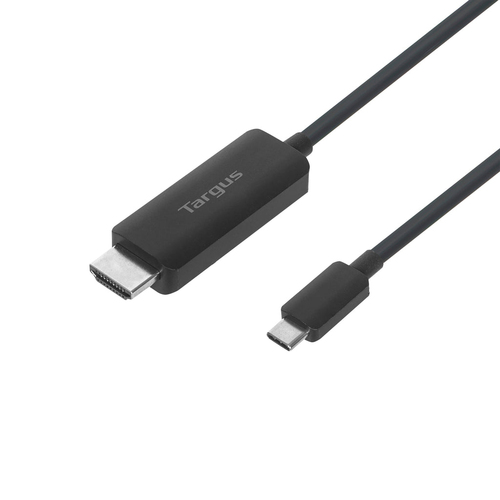

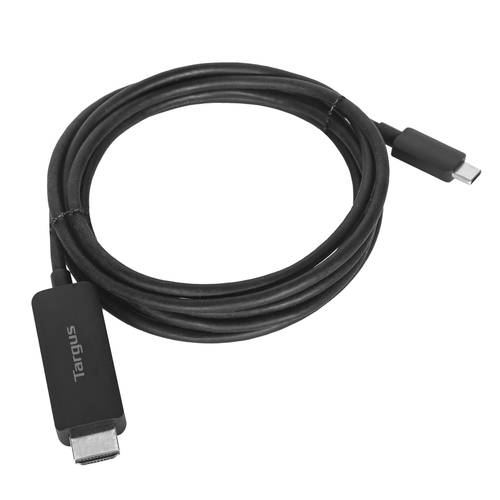

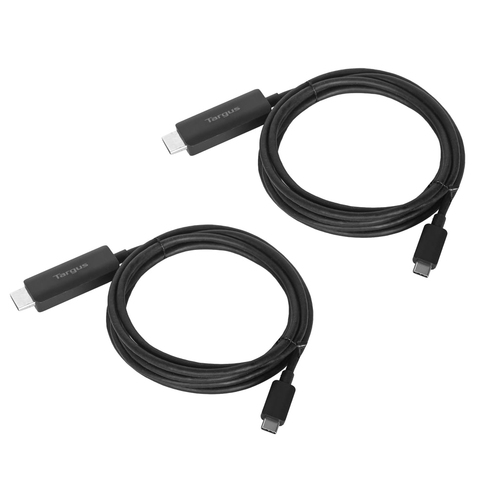

Cables included Thunderbolt, USB Type-C to HDMI
Technical details
Warranty period 3 year(s)
