StarTech.com 199UE-USBC-DOCK laptop dock/port replicator
199UE-USBC-DOCK - 0065030921817
StarTech.com 199UE-USBC-DOCK laptop dock/port replicator Wired USB 3.2 Gen 2 (3.1 Gen 2) Type-C Grey
- Brand
- STARTECH
- Product code
- 199UE-USBC-DOCK
- SKU
- 3C2I32SOQDB8Q
- EAN/GTIN
- 0065030921817
- Wired
- Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
- USB Power Delivery (USB PD)
- Ethernet LAN 10,100,1000 Mbit/s Wake-on-LAN ready
- Full duplex
- Cable lock slot
€152.54
(Inc. VAT)
(Delivery 2-4 working days)
StarTech.com 199UE-USBC-DOCK. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Data transfer rate: 10 Gbit/s, HD type: 4K Ultra HD. AC input voltage: 100 - 240 V, Input current: 2.5 A, Output voltage: 24 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Linux operating systems supported: Ubuntu 24.04 LTS

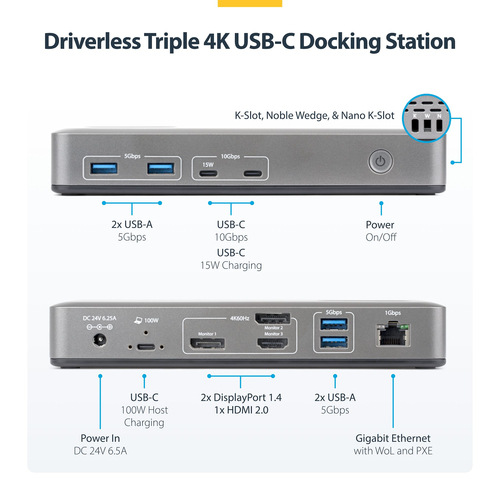

| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Microphone in | No |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
| Performance | |
| Card reader integrated | No |
| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 4096 x 2160 pixels |
| Number of displays supported | 2 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington, Nano, Wedge, Noble |
| Product colour | Grey |
| On/off switch | Yes |
| LED indicators | Yes |
| Mean time between failures (MTBF) | 84290 h |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 2.5 A |
| Output voltage | 24 V |
| Output current | 6.25 A |
| Power consumption (typical) | 150 W |
| Compatible power plug types | EU, UK |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Linux operating systems supported | Ubuntu 24.04 LTS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | 10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
| Width | 79 mm |
| Depth | 190 mm |
| Height | 27 mm |
| Weight | 300 g |
| Packaging data | |
| Package width | 250 mm |
| Package depth | 205 mm |
| Package height | 50 mm |
| Package weight | 1 kg |

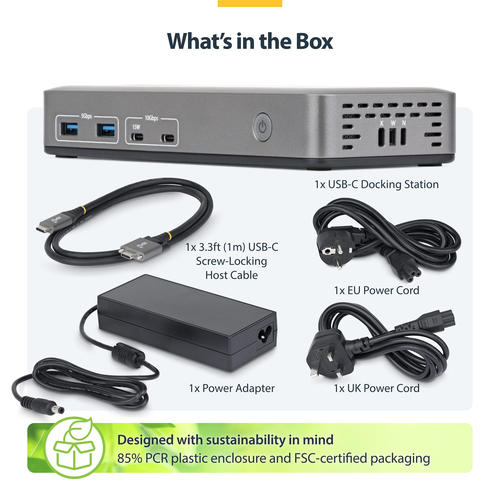

| Packaging content | |
| Cables included | USB Type-C |
| AC adapter included | Yes |
| Technical details | |
| Compliance certificates | RoHS, Federal Communications Commission (FCC) |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 270 mm |
| Master (outer) case height | 280 mm |
| Other features | |
| Chipset | VMM5320, VL103R, VL171, VL822, VP226, VL817, RTL8153E |
