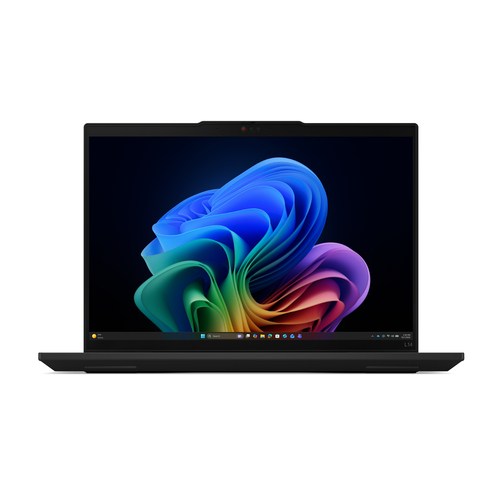

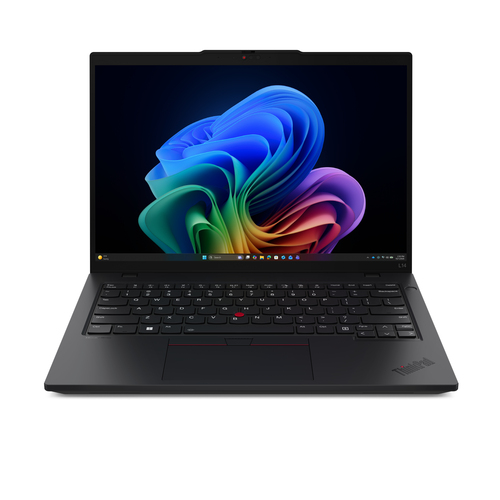

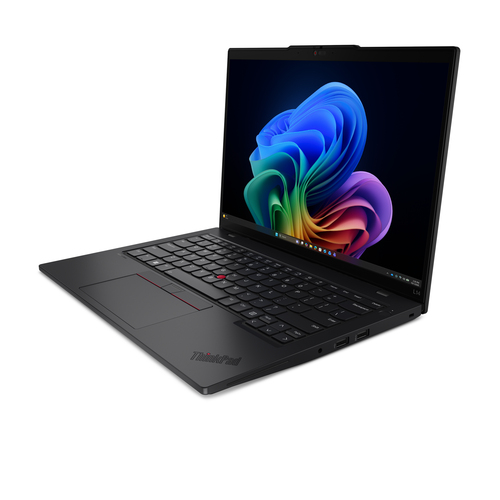

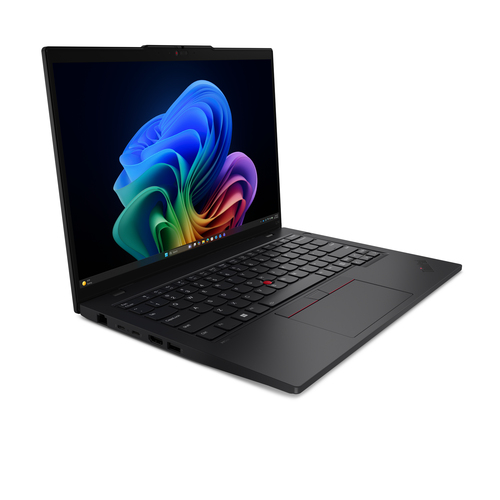

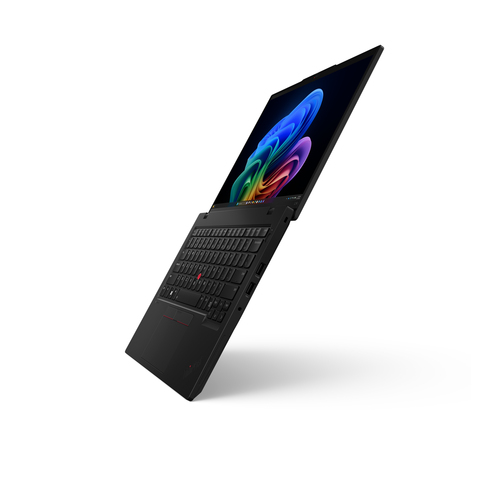

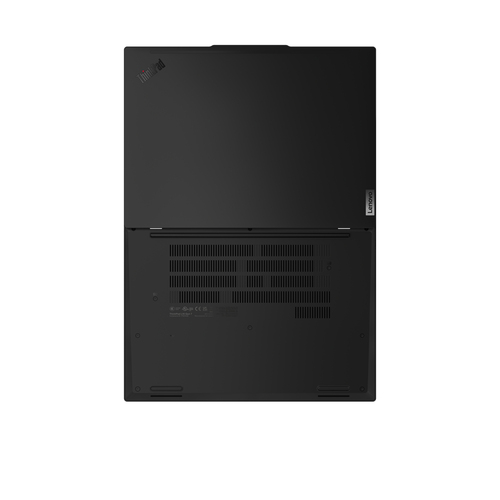

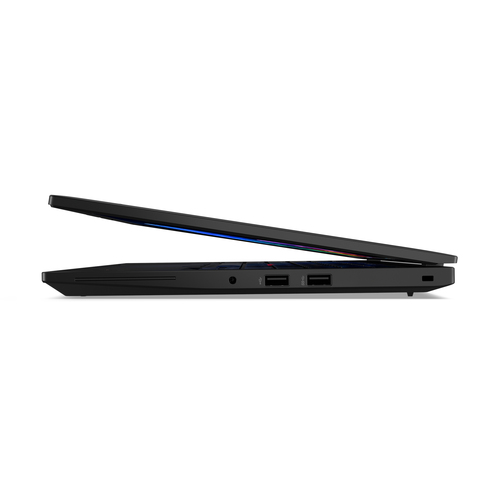

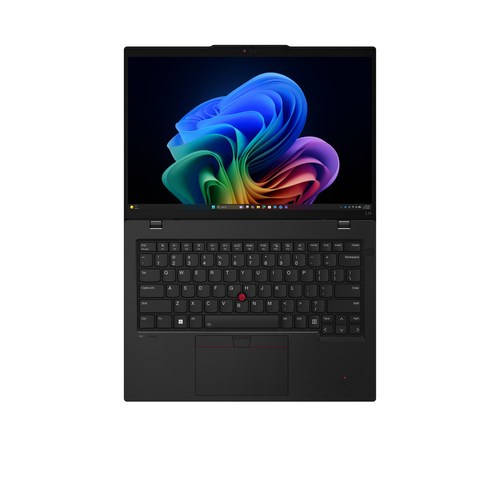

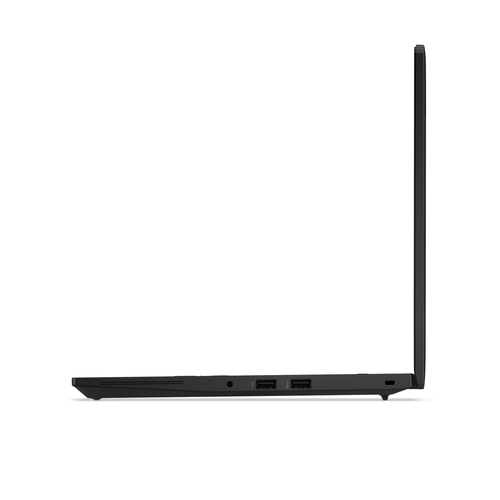

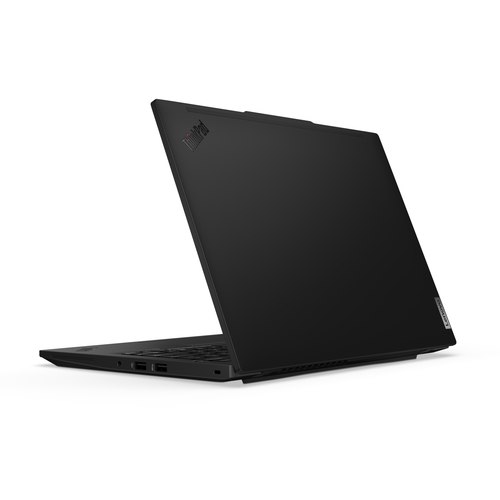

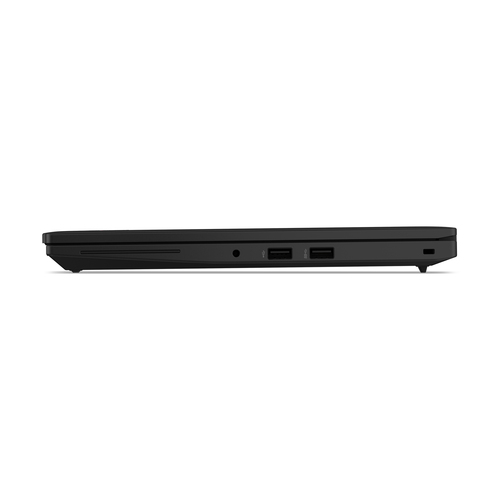

Lenovo ThinkPad L14 Gen 7 (Intel) Copilot+ PC

Design

Product type Laptop

Product colour Black

Form factor Clamshell

Housing material Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)

Display

Display diagonal 35.6 cm (14")

Display resolution 1920 x 1200 pixels

Touchscreen No

HD type WUXGA

Panel type IPS

LED backlight Yes

Native aspect ratio 16:10

Anti-glare screen Yes

Display brightness 400 cd/m²

RGB colour space NTSC

Colour gamut 45%

Maximum refresh rate 60 Hz

Contrast ratio (typical) 1000:1

Processor

Processor manufacturer Intel

Processor family Intel Core Ultra 5

Processor generation Intel® Core™ Ultra (Series 3)

Processor model 325

Processor cores 8

Processor threads 8

Processor boost frequency 4.5 GHz

Performance cores 4

Low Power Efficient-cores 4

Performance-core Max Turbo Frequency 4.5 GHz

Low Power Efficient-core Max Turbo Frequency 3.4 GHz

Performance-core base frequency 2.1 GHz

Efficient-core base frequency 1.6 GHz

Low Power Efficient-core Base Frequency 1600 MHz

Processor cache 12 MB

Processor cache type Smart Cache

Processor socket FCBGA2540

Processor base power 25 W

Maximum turbo power 55 W

Neural processor unit (NPU)

Copilot+ PC Yes

Neural processor unit (NPU) Intel AI Boost

Sparsity support Yes

Windows Studio effects support Yes

AI software frameworks supported by NPU OpenVINO, Windows ML, ONNX RT, WebNN

NPU performance up to 47 TOPs

GPU performance up to 40 TOPs

Memory

Internal memory 16 GB

Internal memory type DDR5-SDRAM

Memory clock speed 5600 MHz

Memory form factor SO-DIMM

Memory layout (slots x size) 1 x 16 GB

Memory slots 2x SO-DIMM

Maximum internal memory 64 GB

Memory channels Dual-channel

Storage

Total storage capacity 512 GB

Storage media SSD

Total SSDs capacity 512 GB

Number of SSDs installed 1

SSD capacity 512 GB

SSD interface PCI Express 4.0

NVMe Yes

SSD form factor M.2

M.2 SSD size 2280 (22 x 80 mm)

Optical drive type No

Card reader integrated No

Graphics

Discrete graphics card model Not available

On-board graphics card Yes

On-board GPU manufacturer Intel

Discrete graphics card No

On-board graphics card family Intel® Graphics

On-board graphics card model Intel® Graphics

Ray tracing acceleration Yes

Audio

Audio chip Realtek ALC3287

Audio system Dolby Atmos

Number of built-in speakers 2

Speaker power 2 W

Built-in microphone Yes

Number of microphones 2

Camera

Front camera Yes

Front camera resolution (numeric) 5 MP

Infrared (IR) camera Yes

Privacy camera Yes

Privacy type Privacy shutter

Network

Top Wi-Fi standard Wi-Fi 7 (802.11be)

Wi-Fi standards Wi-Fi 7 (802.11be)

Mobile network connection No

Antenna type 2x2

WLAN controller model Intel Wi-Fi 7 BE213

WLAN controller manufacturer Intel

Ethernet LAN Yes

Ethernet LAN data rates 100,1000 Mbit/s

Bluetooth Yes

Bluetooth version 5.4

Near Field Communication (NFC) No

WWAN Upgradable

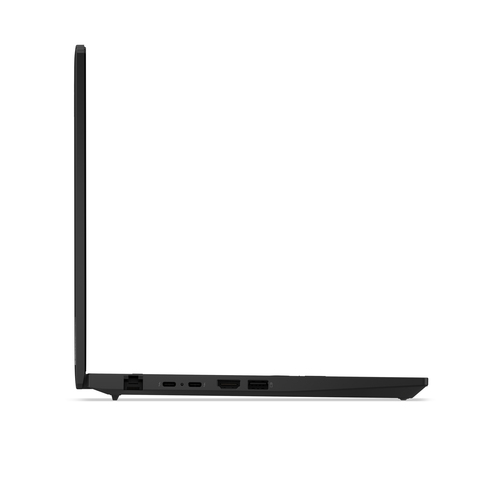

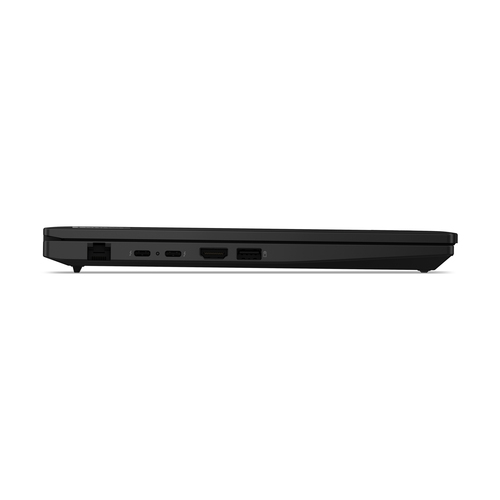

Ports & interfaces

USB 2.0 ports quantity 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2

Ethernet LAN (RJ-45) ports 1

HDMI ports quantity 1

HDMI version 2.1

Thunderbolt 4 ports quantity 2

Intel® Thunderbolt 4 Yes

Combo headphone/mic port Yes

USB Type-C DisplayPort Alternate Mode Yes

USB Sleep-and-Charge Yes

USB Sleep-and-Charge ports 1

Performance

Motherboard chipset Intel SoC

Keyboard

Pointing device ThinkPad UltraNav

Numeric keypad No

Keyboard backlit Yes

Spill-resistant keyboard Yes

Keyboard language UK English

Copilot key Yes

Software

Operating system language ENG-UK, US English

Operating system installed Windows 11 Pro

Battery

Battery technology Lithium-Ion (Li-Ion)

Battery capacity 57 Wh

Fast charging Yes

Power

AC adapter power 65 W

AC adapter frequency 50 - 60 Hz

AC adapter input voltage 100 - 240 V

USB Type-C charging port Yes

USB Type-C required charging power (min) 15 W

USB Type-C required charging power (max) 65 W

USB Power Delivery (USB PD) Yes

Security

Cable lock slot Yes

Cable lock slot type Kensington

Fingerprint reader Yes

Smart card reader Yes

Trusted Platform Module (TPM) Yes

Trusted Platform Module (TPM) version 2.0

Password protection Yes

Password protection type SSD, Supervisor, Power on

Operational conditions

Operating temperature (T-T) 5 - 35 °C

Storage temperature (T-T) 5 - 43 °C

Operating relative humidity (H-H) 8 - 95%

Storage relative humidity (H-H) 5 - 95%

Maximum shipping altitude 3048 m

Certificates

Certification ENERGY STAR 9.0 EPEAT Gold Registered ErP Lot 6/26 RoHS compliant TCO Certified, generation 10

Weight & dimensions

Width 313.7 mm

Depth 226 mm

Height (front) 1.14 cm

Height (rear) 1.73 cm

Weight 1.39 kg

Packaging content

AC adapter included Yes
