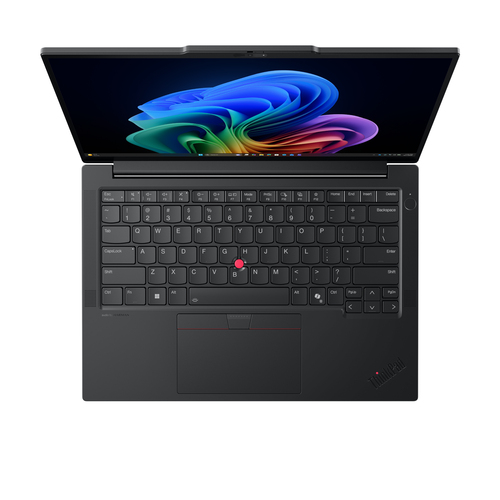

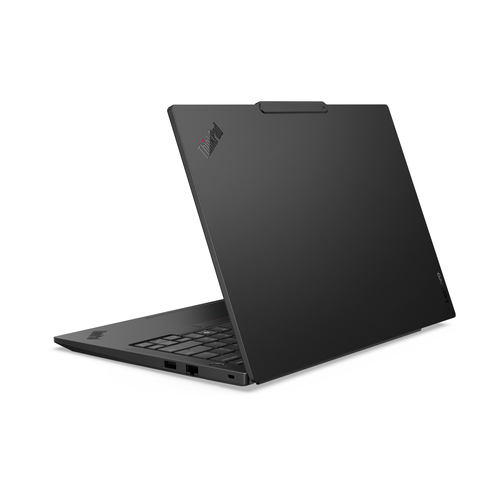

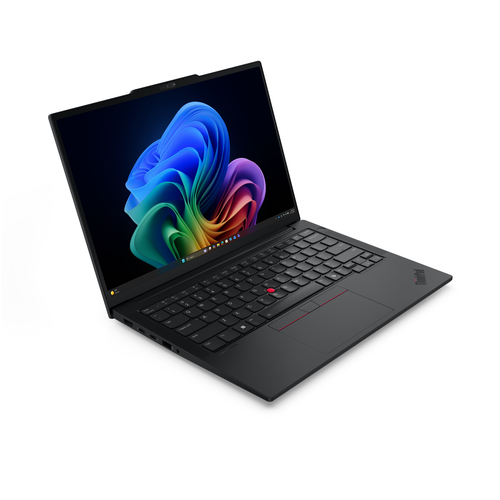

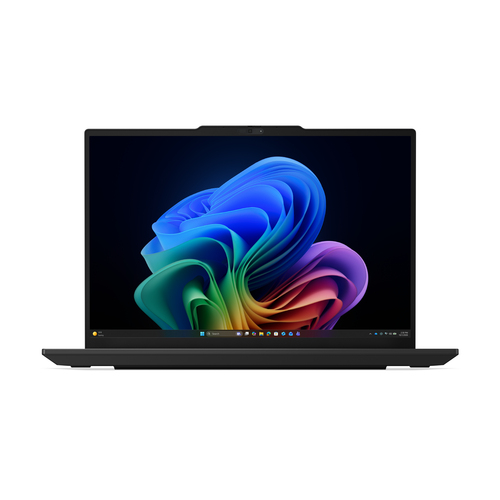

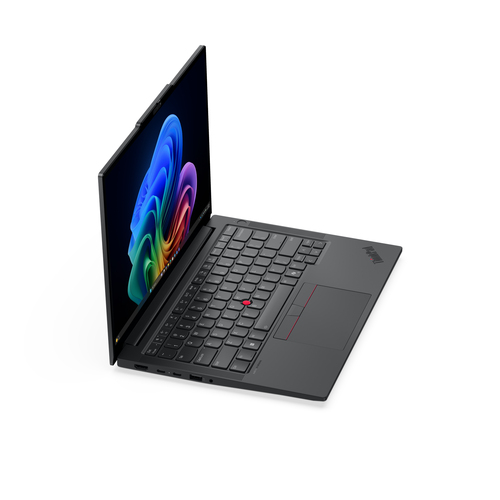

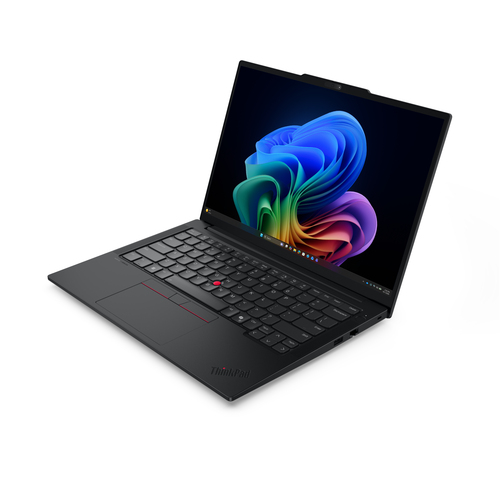

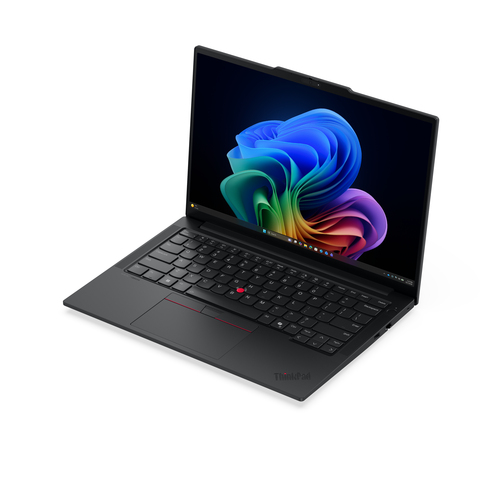

Lenovo ThinkPad E14 Gen 8 (AMD) Copilot+ PC

Design

Product type Laptop

Product colour Black

Form factor Clamshell

Housing material Aluminium

Display back cover material Aluminium

Display

Display diagonal 35.6 cm (14")

Display resolution 1920 x 1200 pixels

Touchscreen No

HD type WUXGA

Panel type IPS

LED backlight Yes

Native aspect ratio 16:10

Anti-glare screen Yes

Display brightness 400 cd/m²

RGB colour space NTSC

Colour gamut 45%

Maximum refresh rate 60 Hz

Processor

Processor manufacturer AMD

Processor family AMD Ryzen™ AI 5

Processor model 430

Processor cores 4

Processor threads 8

Processor boost frequency 4.5 GHz

Processor frequency 2 GHz

Neural processor unit (NPU)

Copilot+ PC Yes

Memory

Internal memory 16 GB

Internal memory type DDR5-SDRAM

Memory clock speed 5600 MHz

Memory form factor SO-DIMM

Memory layout (slots x size) 1 x 16 GB

Memory slots 2x SO-DIMM

Maximum internal memory 64 GB

Storage

Total storage capacity 512 GB

Storage media SSD

Total SSDs capacity 512 GB

Number of SSDs installed 1

SSD capacity 512 GB

SSD interface PCI Express 4.0

NVMe Yes

SSD form factor M.2

Optical drive type No

Card reader integrated No

Graphics

Discrete graphics card model Not available

On-board graphics card Yes

On-board GPU manufacturer AMD

Discrete graphics card No

On-board graphics card family AMD Radeon

On-board graphics card model AMD Radeon 840M

Audio

Audio chip Senary SN6147

Number of built-in speakers 2

Speaker power 2 W

Built-in microphone Yes

Number of microphones 2

Camera

Front camera Yes

Front camera resolution 1920 x 1080 pixels

Front camera HD type Full HD

Infrared (IR) camera Yes

Privacy camera Yes

Privacy type Privacy shutter

Network

Top Wi-Fi standard Wi-Fi 7 (802.11be)

Wi-Fi standards Wi-Fi 7 (802.11be)

Mobile network connection No

Antenna type 2x2

Ethernet LAN Yes

Ethernet LAN data rates 100,1000 Mbit/s

Bluetooth Yes

Bluetooth version 5.4

Near Field Communication (NFC) No

WWAN Not installed

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1

USB4 Gen 3x2 ports quantity 2

Ethernet LAN (RJ-45) ports 1

HDMI ports quantity 1

HDMI version 2.1

Combo headphone/mic port Yes

USB Type-C DisplayPort Alternate Mode Yes

USB Sleep-and-Charge Yes

Performance

Motherboard chipset AMD SoC

Keyboard

Pointing device ThinkPad UltraNav

Numeric keypad No

Keyboard backlit Yes

Keyboard language English

Copilot key Yes

Software

Microsoft Copilot Yes

Operating system installed Windows 11 Pro

Battery

Battery capacity 64 Wh

Power

AC adapter power 65 W

USB Type-C charging port Yes

USB Type-C required charging power (min) 15 W

USB Type-C required charging power (max) 65 W

USB Power Delivery (USB PD) Yes

Security

Cable lock slot Yes

Cable lock slot type Kensington

Fingerprint reader Yes

Smart card reader No

Windows Hello Yes

Trusted Platform Module (TPM) Yes

Trusted Platform Module (TPM) version 2.0

Certificates

Certification ENERGY STAR,TCO,RoHS

Weight & dimensions

Width 313 mm

Depth 220.3 mm

Height (front) 1.01 cm

Height (rear) 1.52 cm

Weight 1.34 kg

Packaging content

AC adapter included Yes
