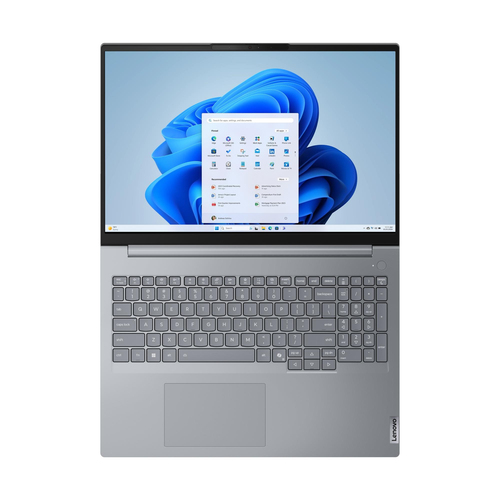

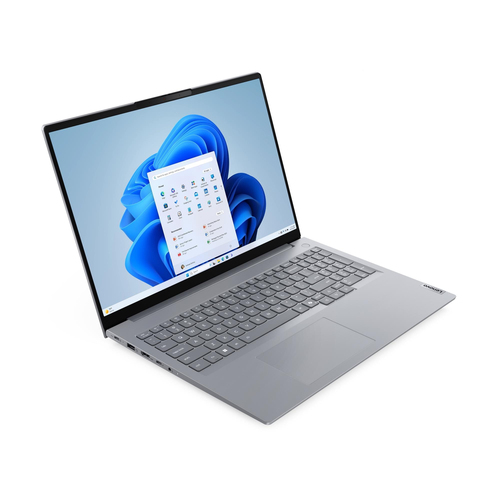

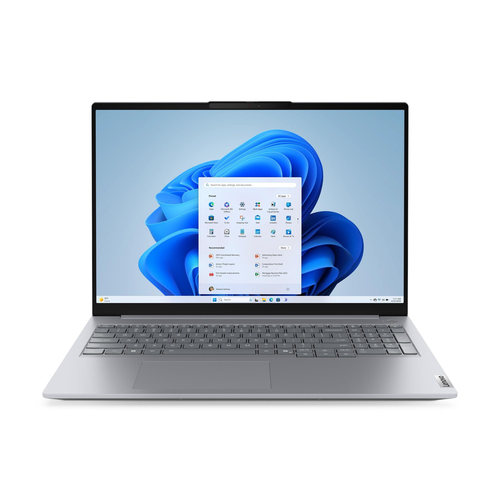

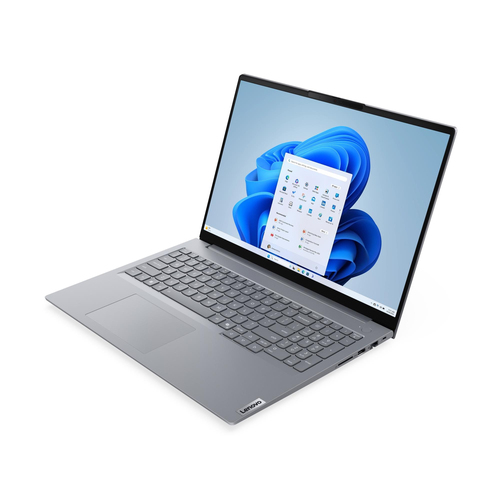

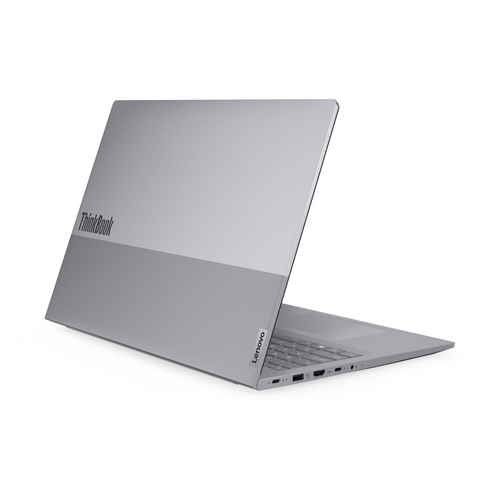

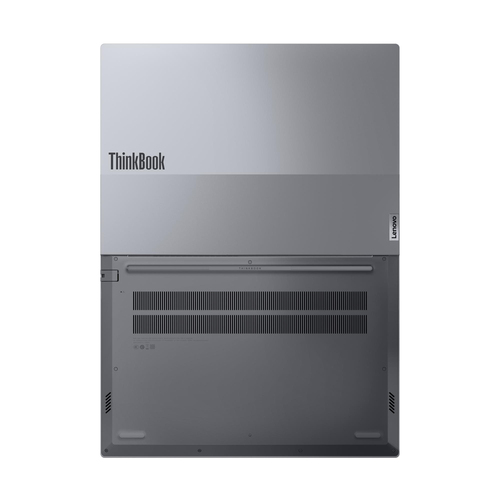

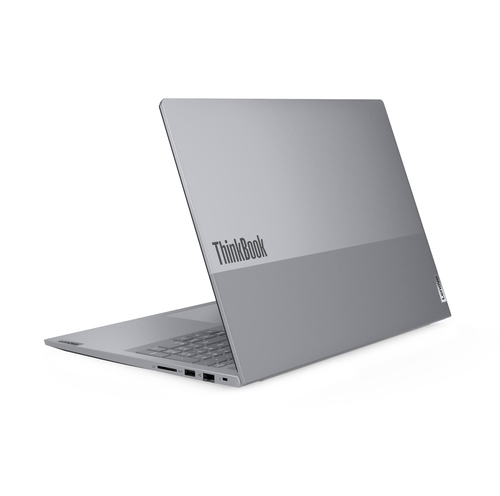

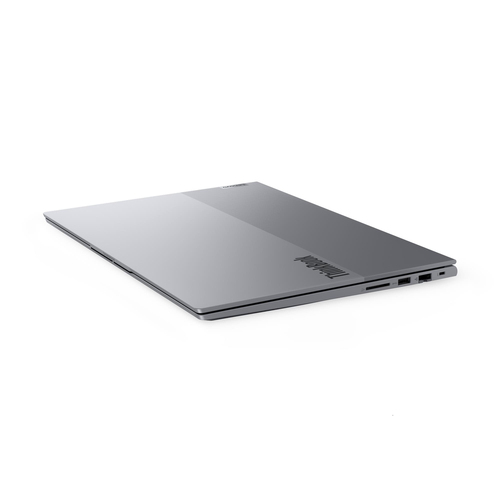

Lenovo ThinkBook 16 G9 IRL

Design

Colour name Arctic grey

Product type Laptop

Product colour Grey

Form factor Clamshell

Housing material Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)

Certified refurbished No

Display

Display diagonal 40.6 cm (16")

Display resolution 1920 x 1200 pixels

Touchscreen No

HD type WUXGA

Panel type IPS

Native aspect ratio 16:10

Anti-glare screen Yes

Display brightness 400 cd/m²

RGB colour space NTSC

Colour gamut 45%

Maximum refresh rate 60 Hz

Contrast ratio (typical) 1000:1

Processor

Processor manufacturer Intel

Processor family Intel Core 7

Processor generation Intel Core (Series 2)

Processor model 240H

Processor cores 10

Processor threads 16

Processor boost frequency 5.2 GHz

Performance cores 6

Efficient cores 4

Performance-core Max Turbo Frequency 5.2 GHz

Efficient-core Max Turbo Frequency 4 GHz

Performance-core base frequency 2.5 GHz

Efficient-core base frequency 1.8 GHz

Processor cache 24 MB

Processor cache type Smart Cache

Processor base power 45 W

Maximum turbo power 115 W

Neural processor unit (NPU)

Copilot+ PC No

Memory

Internal memory 16 GB

Internal memory type DDR5-SDRAM

Memory clock speed 5600 MHz

Memory form factor SO-DIMM

Memory layout (slots x size) 1 x 16 GB

Memory slots 2x SO-DIMM

Maximum internal memory 64 GB

Memory channels Single-channel

Storage

Total storage capacity 512 GB

Storage media SSD

Total SSDs capacity 512 GB

Number of SSDs installed 1

SSD capacity 512 GB

SSD interface PCI Express 4.0

NVMe Yes

SSD form factor M.2

M.2 SSD size 2242 (22 x 42 mm)

Optical drive type No

Card reader integrated Yes

Compatible memory cards SD

Graphics

Discrete graphics card model Not available

On-board graphics card Yes

On-board GPU manufacturer Intel

Discrete graphics card No

On-board graphics card family Intel Graphics

On-board graphics card model Intel Graphics

Audio

Audio chip Realtek ALC3287

Audio system Dolby Audio

Number of built-in speakers 2

Speaker power 2 W

Built-in microphone Yes

Number of microphones 2

Camera

Front camera Yes

Front camera resolution 1920 x 1080 pixels

Front camera HD type Full HD

Infrared (IR) camera Yes

Privacy camera Yes

Privacy type Privacy shutter

Network

Top Wi-Fi standard Wi-Fi 7 (802.11be)

Wi-Fi standards Wi-Fi 7 (802.11be)

Mobile network connection No

Antenna type 2x2

Ethernet LAN Yes

Ethernet LAN data rates 100,1000 Mbit/s

Bluetooth Yes

Bluetooth version 5.4

WWAN Not installed

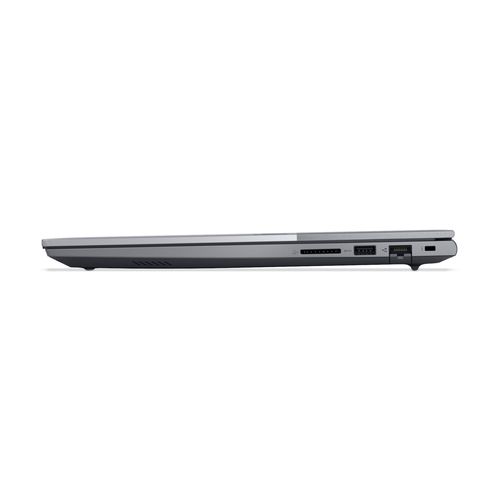

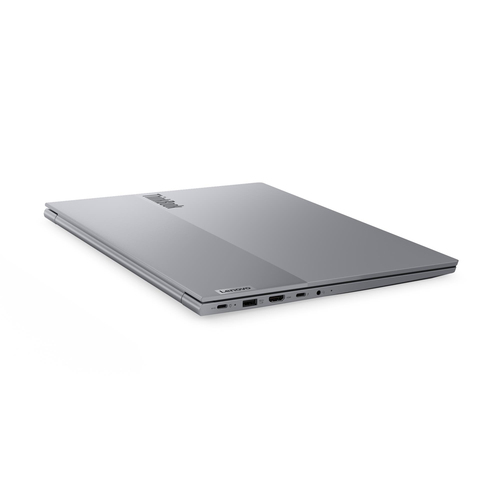

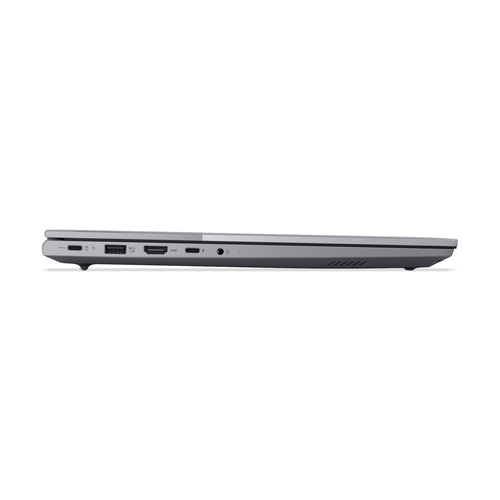

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1

Ethernet LAN (RJ-45) ports 1

HDMI ports quantity 1

HDMI version 2.1

Thunderbolt 4 ports quantity 1

Intel® Thunderbolt 4 Yes

Combo headphone/mic port Yes

USB Type-C DisplayPort Alternate Mode Yes

Performance

Motherboard chipset Intel SoC

Keyboard

Pointing device Touchpad

Numeric keypad Yes

Keyboard backlit Yes

Spill-resistant keyboard Yes

Keyboard language UK English

Copilot key Yes

Software

Operating system language ENG-UK, US English

Operating system installed Windows 11 Pro

Bundled software Office Trial

Battery

Battery technology Lithium-Ion (Li-Ion)

Battery capacity 48 Wh

Fast charging Yes

Fast charging time (50%) 30 min

Power

AC adapter power 65 W

USB Type-C charging port Yes

USB Power Delivery (USB PD) Yes

Security

Cable lock slot Yes

Cable lock slot type Kensington

Fingerprint reader Yes

Windows Hello Yes

Trusted Platform Module (TPM) Yes

Trusted Platform Module (TPM) version 2.0

Password protection Yes

Password protection type BIOS, Power on, Supervisor

Operational conditions

Operating temperature (T-T) 5 - 35 °C

Storage temperature (T-T) 5 - 43 °C

Operating relative humidity (H-H) 8 - 95%

Storage relative humidity (H-H) 5 - 95%

Maximum shipping altitude 3048 m

Certificates

Compliance certificates RoHS

Certification ErP Lot 6/26 TCO Certified, generation 10 MIL-STD-810G Eyesafe Certified 2.0

Sustainability

Sustainability certificates ENERGY STAR, EPEAT Gold

Weight & dimensions

Width 356 mm

Depth 253.5 mm

Height 17.5 mm

Weight 1.7 kg

Packaging content

AC adapter included Yes
