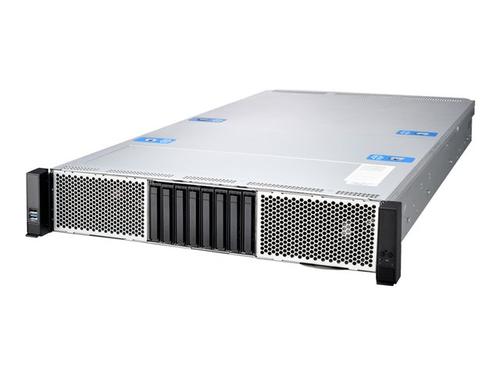

MiTAC R2520G6U2BC - rack-mountable no CPU - SSD
R2520G6U2BC - 635872061776
MiTAC R2520G6U2BC - rack-mountable no CPU - SSD
- Brand
- MITAC
- Product code
- R2520G6U2BC
- SKU
- M51Q74HESE6ZP
- EAN/GTIN
- 635872061776
- Server
- rack-mountable 2U
- 2-way
- no CPU
- SATA
- hot-swap 2.5" bay(s)
- SSD
- AST2600
- Gigabit Ethernet
- no OS
- monitor: none
- Weight: 31.58 KG
€3901.92
(Inc. VAT)
(Delivery 2-4 working days)
Product Info
The Mio MiTAC R2520G6U2BC is a rack-mountable server designed for storage and scalability in various operational environments. It features eight hot-swap storage bays capable of accommodating 2.5" drives, ensuring easy maintenance and uninterrupted service. The ventilation system is supported by six built-in fans, promoting effective cooling within the chassis. With the capacity to support up to two CPUs and a memory configurability of up to 32 slots for DDR5 SDRAM, this server allows businesses to adapt to their data needs. It also includes networking capabilities with Gigabit Ethernet for rapid data transfer and remote management capabilities using IPMI 2.0, making it suitable for modern data centers.
Description
Flexible Storage Options
The server supports eight hot-swap bays for 2. 5" drives, allowing for quick drive changes without system downtime, and facilitating easy upgrades as storage requirements evolve.Efficient Cooling System
Equipped with six built-in fans, the cooling system helps maintain optimal operating temperatures between 10°C and 35°C, ensuring system stability and performance over extended periods.Advanced Networking Capabilities
This server comes with Gigabit Ethernet support, facilitating high-speed data transfers and networking reliability within data centers, combined with IPMI 2. 0 for efficient remote management.Reliable Power Management
The included power supply system provides redundancy with a 1+1 scheme and an 80 PLUS Titanium certification, ensuring lower energy consumption and improved reliability.High Scalability
Featuring support for up to two CPUs and a maximum of 32 memory slots for DDR5 SDRAM, the R2520G6U2BC can easily adapt to increasing workloads and ensure performance remains consistent.Specifications
General
Type
Server
Internal Bays Qty
8
Front Accessible Bays Qty
8
Hot-Swap Bays Qty
8
Server Scalability
2-way
Product Form Factor
Rack-mountable - 2U
Built-in Devices
6 x fans
Expansion / Connectivity
Slots
5 PCIe 5.0 x162 Open Compute Project mezzanine (OCP) 3.0 (Mezzanine)
Interfaces
1 x USB 3.01 x Mini DisplayPort1 x LAN (Gigabit Ethernet) - RJ-45
RAM
Effective Memory Speed
6400 MHz
Rated Memory Speed
6400 MHz
Slots
32 (Total) / 32 (empty)
Technology
DDR5 SDRAM
Installed Size
8192 GB (max)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol
IPMI 2.0
Remote Management Controller
Aspeed AST2600
Ethernet Controller
Realtek RTL8211F
Miscellaneous
Compliant Standards
FCC SDOC Class A, DOC-A, CB, LVD, RCM, VCCI, BSMI, NRTL, IC, sDoC, RoHS 2.0, RoHS
Power
Device Type
Power supply
Power Provided
1300 Watt
Power Redundancy
Yes
Voltage Required
AC 100-127/200-240 V
Power Redundancy Scheme
1+1
80 PLUS Certification
80 PLUS Titanium
Environmental Parameters
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
5 - 95% (non-condensing)
Optical Storage
Type
No optical drive
Operating System / Software
OS Provided
No operating system
Monitor
Monitor Type
None.
Graphics Controller
Video Interfaces
Mini DisplayPort
Graphics Processor
ASPEED AST2600
Hard Drive
Type
SSD - hot-swap
Interface Type
SATA 6Gb/s / SAS 4.0 / PCI Express (NVMe)
Dimensions & Weight
Width
43.8 cm
Height
8.7 cm
Depth
77 cm
Weight
26.25 kg
Dimensions & Weight (Shipping)
Shipping Weight
34.5 kg
Processor / Chipset
Max CPU Qty
2
CPU Upgradability
Upgradable
CPU
No CPU
CPU Socket
LGA4710 Socket
Motherboard Name
R520G6SB
