ASUS Zenbook Duo UX8406CA-PZ134W
UX8406CA-PZ134W - 4711387859650
ASUS Zenbook Duo UX8406CA-PZ134W Intel Core Ultra 9 285H Hybrid (2-in-1) 35.6 cm (14") Touchscreen 3K 32 GB LPDDR5x-SDRAM 2 TB SSD Wi-Fi 7 (802.11be) Windows 11 Home Grey
- Brand
- Asus
- Product Family
- Zenbook
- Product series
- Duo
- Product code
- UX8406CA-PZ134W
- SKU
- HS7FW55BW2HMA
- EAN/GTIN
- 4711387859650
- Windows 11 Home
- Intel® Core™ Ultra 9 processor (Series 2)
- Intel® Evo™ certified laptop
- Thin and light: 14.6 mm, 1.65 kg (without keyboard)

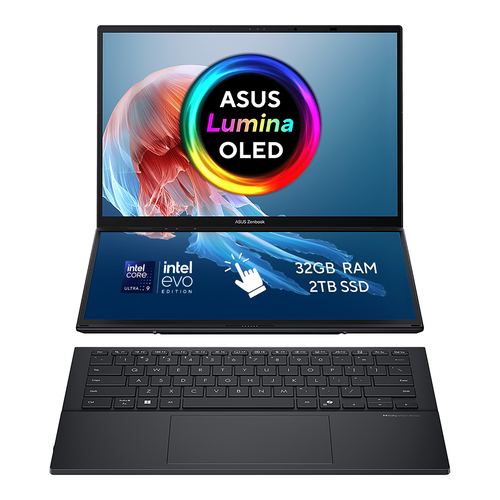

- Dual 14” 3K 120 Hz OLED touchscreens

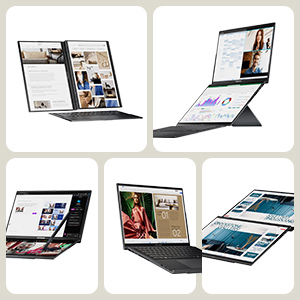

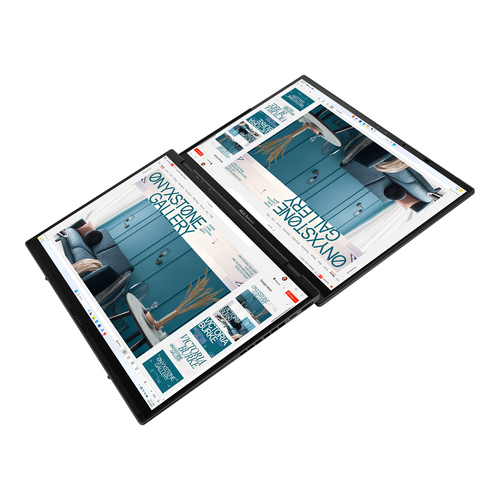

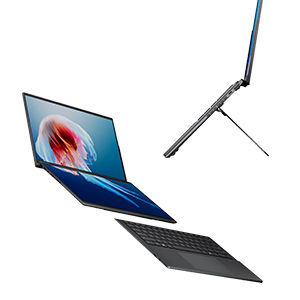

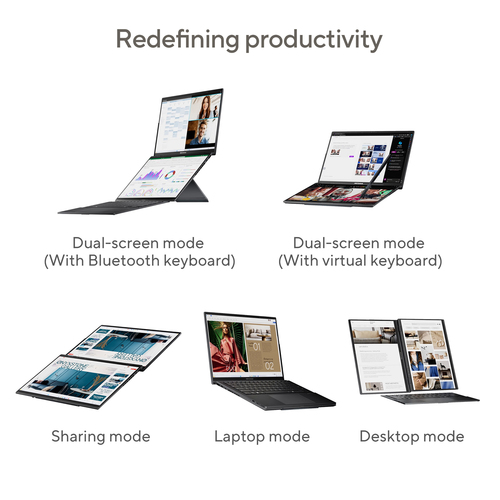

- Versatile modes: Laptop Mode, Dual Screen Mode, Sharing Mode and Desktop Mode

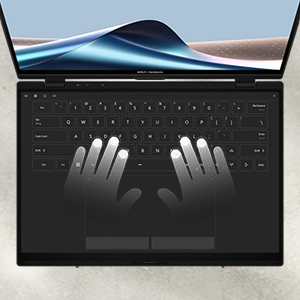

- Effective gestures and smart software
- 32 GB LPDDR5x RAM and 2 TB SSD
- 75 Wh battery
Product Info
Intel Core Ultra 9 285H (24MB Cache), 32GB LPDDR5x-SDRAM, 2000GB SSD, 35.6 cm (14") 3K 2880 x 1800 OLED Touch, Intel Arc 140T, WLAN, Webcam, Windows 11 Home 64-bit
ASUS Zenbook Duo UX8406CA-PZ134W. Product type: Hybrid (2-in-1), Form factor: Convertible (Detachable). Processor family: Intel Core Ultra 9, Processor model: 285H. Display diagonal: 35.6 cm (14"), HD type: 3K, Display resolution: 2880 x 1800 pixels, Touchscreen. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 2 TB, Storage media: SSD. On-board graphics card model: Intel Arc 140T. Operating system installed: Windows 11 Home. Product colour: Grey
Let’s DUO it

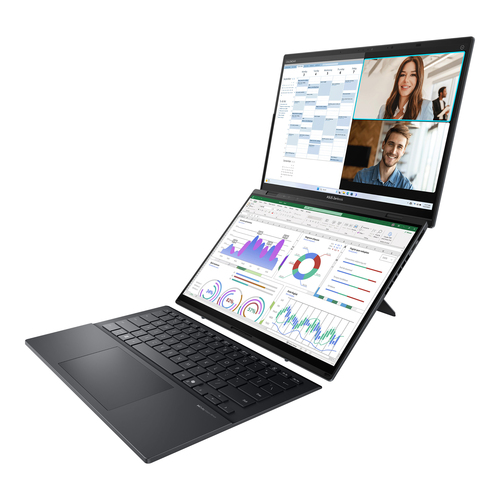

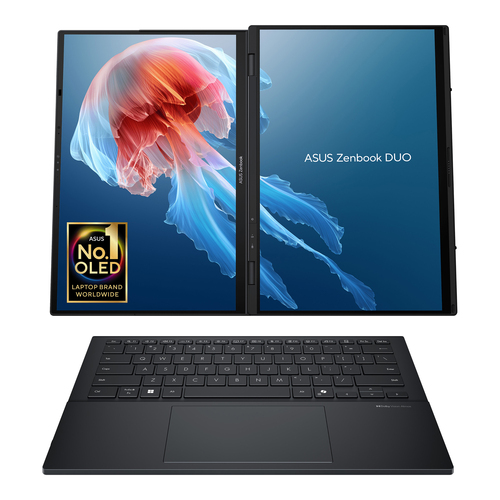

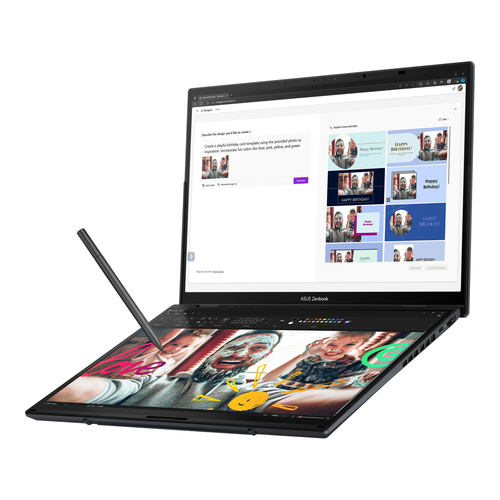

ASUS Zenbook DUO is a revolutionary dual-screen laptop, with two full-size OLED touchscreens1, detachable full-size keyboard and built-in kickstand, — expertly combining multitasking versatility with superb mobility. With dual 14-inch 3K OLED 120 Hz displays, you can instantly expand your workspace to up to 19.8 inches. Outstanding performance is assured with up to an AI-powered Intel® Core™ Ultra 9 processor and 32 GB LPDDR5x memory, plus up to a 2 TB PCIe® 4.0 SSD. Paired with dedicated smart software, intuitive gesture control and an enhanced-lifespan 75 Wh battery, the easy-to-use Zenbook DUO maximizes productivity, with zero fuss. Come on — Let’s DUO it.
Description
Let’s DUO it ASUS Zenbook DUO is a revolutionary dual-screen laptop, with two full-size OLED touchscreens, detachable full-size keyboard and built-in kickstand, — expertly combining multitasking versatility with superb mobility. With dual 14-inch 3K OLED 120 Hz displays, you can instantly expand your workspace to up to 19.8 inches. Outstanding performance is assured with an AI-powered Intel® Core™ Ultra 9 processor (Series 2) and 32 GB LPDDR5x memory, plus a 2 TB PCIe® 4.0 SSD. Paired with dedicated smart software, intuitive gesture control and an enhanced-lifespan 75 Wh battery, the easy-to-use Zenbook DUO maximises productivity, with zero fuss. Come on — Let’s DUO it.
| Design | |
|---|---|
| Colour name | Inkwell Gray |
| Product type | Hybrid (2-in-1) |
| Product colour | Grey |
| Form factor | Convertible (Detachable) |
| Housing material | Aluminium, Magnesium |
| Market positioning | Home |
| Country of origin | China |
| Display | |
| Display diagonal | 35.6 cm (14") |
| Display resolution | 2880 x 1800 pixels |
| Touchscreen | Yes |
| HD type | 3K |
| Panel type | OLED |
| Native aspect ratio | 16:10 |
| Display surface | Gloss |
| Display brightness | 400 cd/m² |
| Maximum display brightness (HDR) | 500 cd/m² |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Maximum refresh rate | 120 Hz |
| Contrast ratio (typical) | 1000000:1 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | DisplayHDR True Black 500 |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 9 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 285H |
| Processor cores | 16 |
| Processor threads | 16 |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 5.4 GHz |
| Efficient-core Max Turbo Frequency | 4.5 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Performance-core base frequency | 2.9 GHz |
| Efficient-core base frequency | 2.7 GHz |
| Low Power Efficient-core Base Frequency | 1000 MHz |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Processor base power | 45 W |
| Maximum turbo power | 115 W |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI datatype support on NPU | Int8 |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 99 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 77 TOPs |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory form factor | On-board |
| Memory layout (slots x size) | 1 x 32 GB |
| Maximum internal memory | 32 GB |
| Storage | |
| Total storage capacity | 2 TB |
| Storage media | SSD |
| Total SSDs capacity | 2 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 2 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Optical drive type | No |
| Graphics | |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| Discrete graphics card | No |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc 140T |
| On-board graphics card 4K support | Yes |
| On-board graphics card 8K support | Yes |
| Graphics card Open GL support | Yes |
| Audio | |
| Audio system | Smart Amp |
| Built-in microphone | Yes |
| Camera | |
| Front camera | Yes |
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
| Network | |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Mobile network connection | No |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |

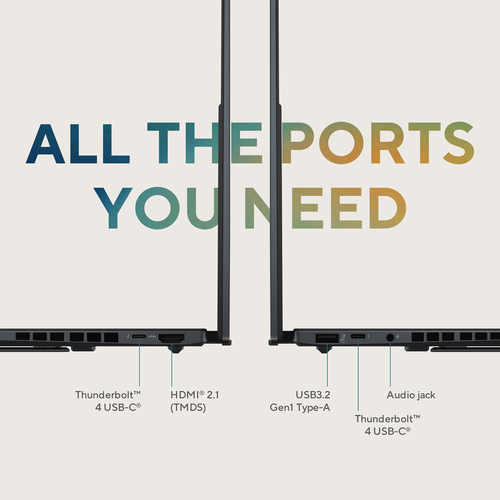

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Performance | |
| Repairability index | 9.4 |
| Keyboard | |
| Pointing device | Touchpad |
| Numeric keypad | No |
| Software | |
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers. Credit card required. |
| Operating system installed | Windows 11 Home |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 75 Wh |
| Power | |
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3.25 A |
| AC adapter output voltage | 20 V |
| USB Type-C charging port | Yes |
| USB Power Delivery (USB PD) | Yes |
| Security | |
| Windows Hello | Yes |
| Trusted Platform Module (TPM) | Yes |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, EPEAT Gold |
| Weight & dimensions | |
| Width | 313.5 mm |
| Depth | 217.9 mm |
| Height (front) | 1.46 cm |
| Height (rear) | 1.99 cm |
| Weight | 1.65 kg |
| Packaging data | |
| Package width | 410 mm |
| Package depth | 75 mm |
| Package height | 284 mm |
| Package weight | 3.67 kg |
| Packaging content | |
| AC adapter included | Yes |
| Stylus pen | Yes |
| Logistics data | |
| Commodity Classification Automated Tracking System (CCATS) | 8471300000 |
