ASUS Simpro Dock 2
90NX0460-P001B0 - 4711387636619
ASUS Simpro Dock 2 Wired Thunderbolt 3 Black, Blue
- Brand
- Asus
- Product code
- 90NX0460-P001B0
- SKU
- 7UB3Y84LJMHE6
- EAN/GTIN
- 4711387636619
- Wired
- Host interface: Thunderbolt 3
- Ethernet LAN 10,100,1000 Mbit/s
- Cable lock slot
Product Info
USB 3.0, VGA, HDMI, RJ-45, Thunderbolt 3, Smart card reader, Kensington lock, 650 g
ASUS Simpro Dock 2. Connectivity technology: Wired, Host interface: Thunderbolt 3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Blue, Colour name: Star Black, Maximum digital resolution: 7680 x 4320 pixels. Power source type: DC, Power supply: 180 W. Width: 40.6 mm, Depth: 99 mm, Height: 161.5 mm

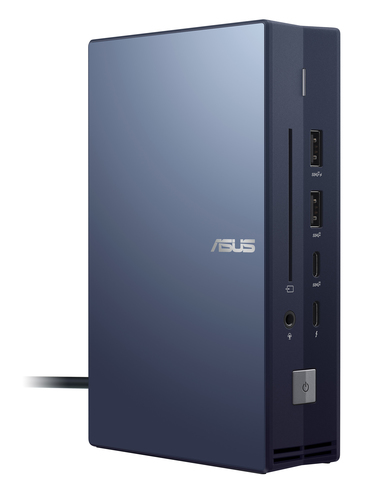

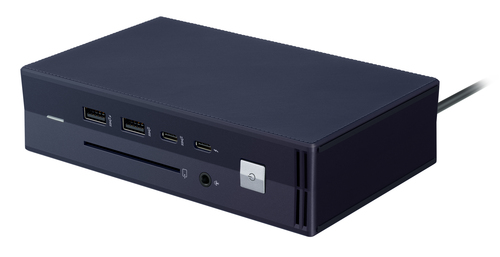

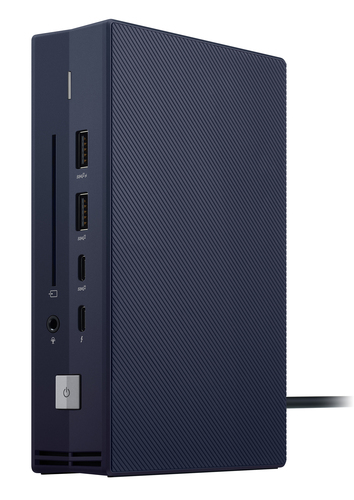

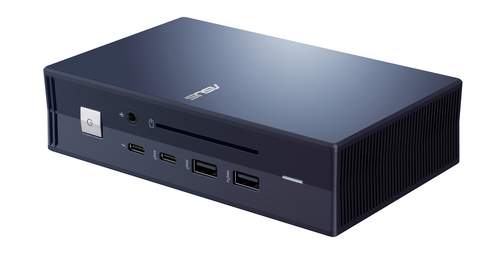

ASUS SimPro Dock 2

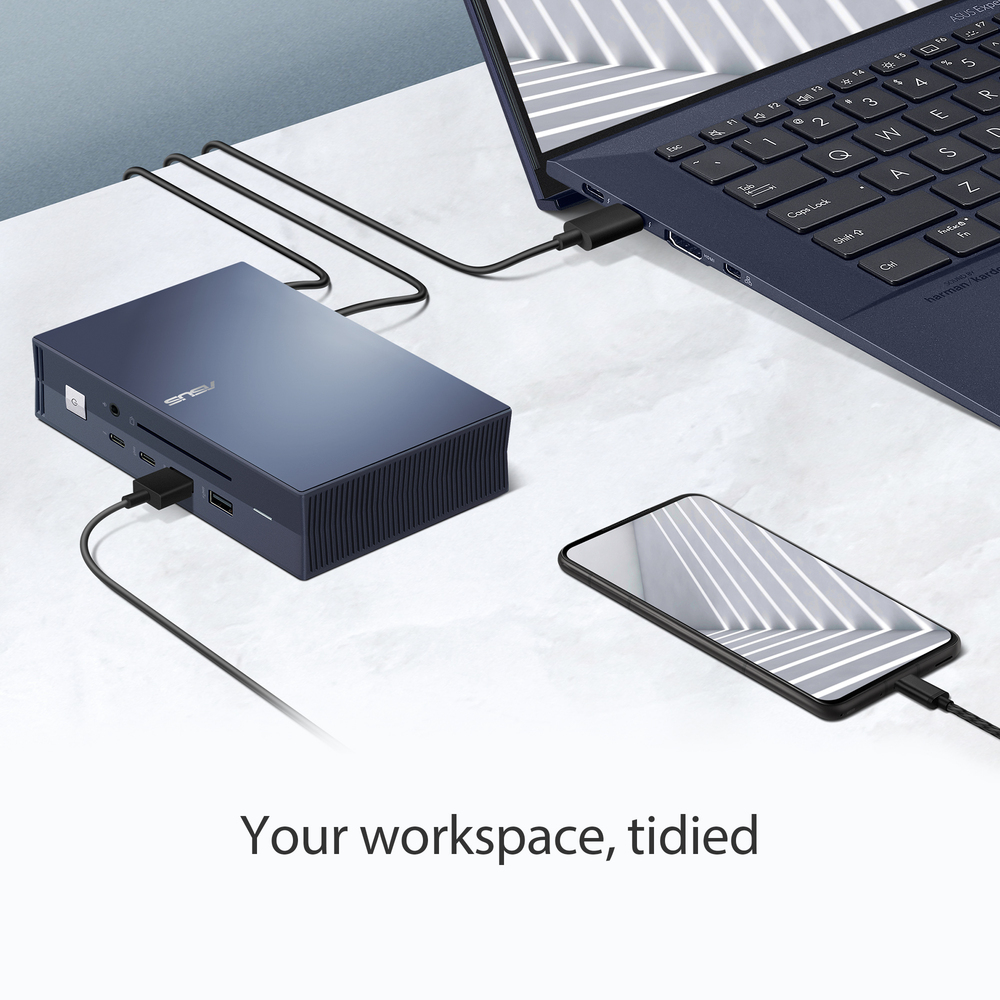

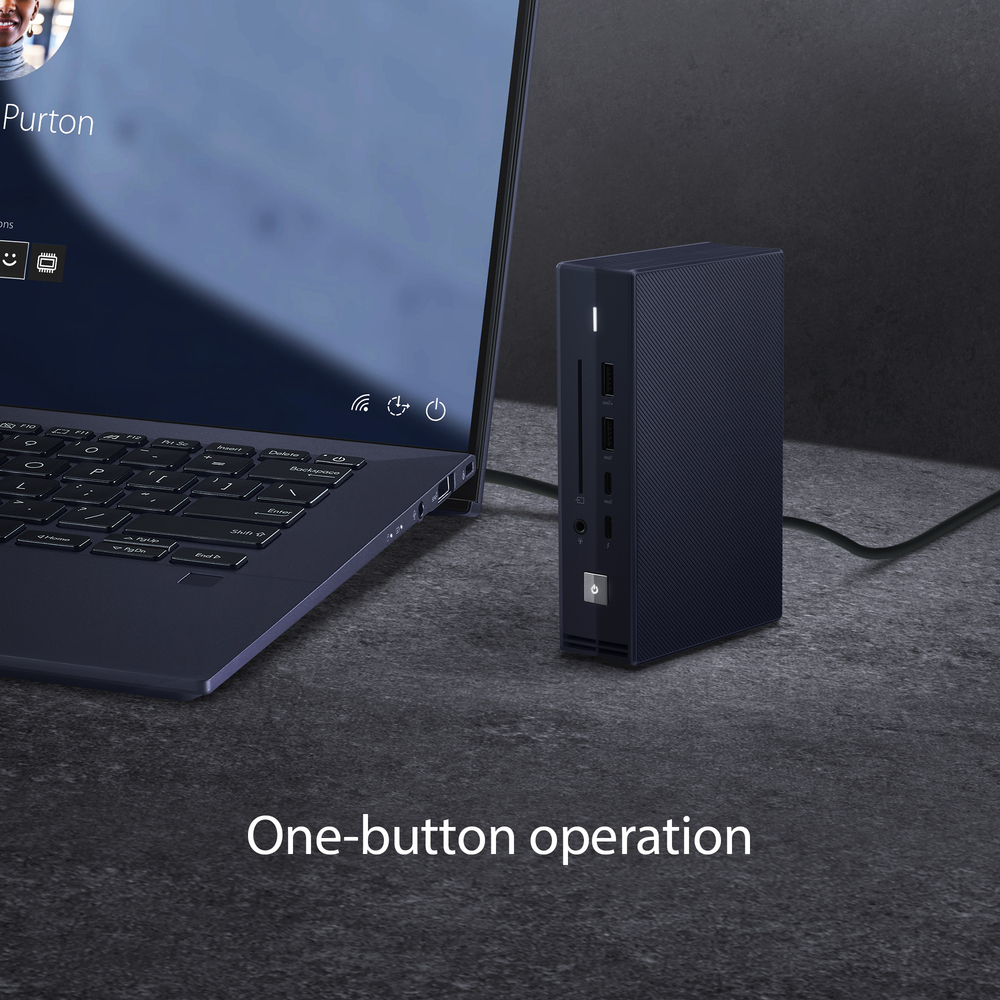

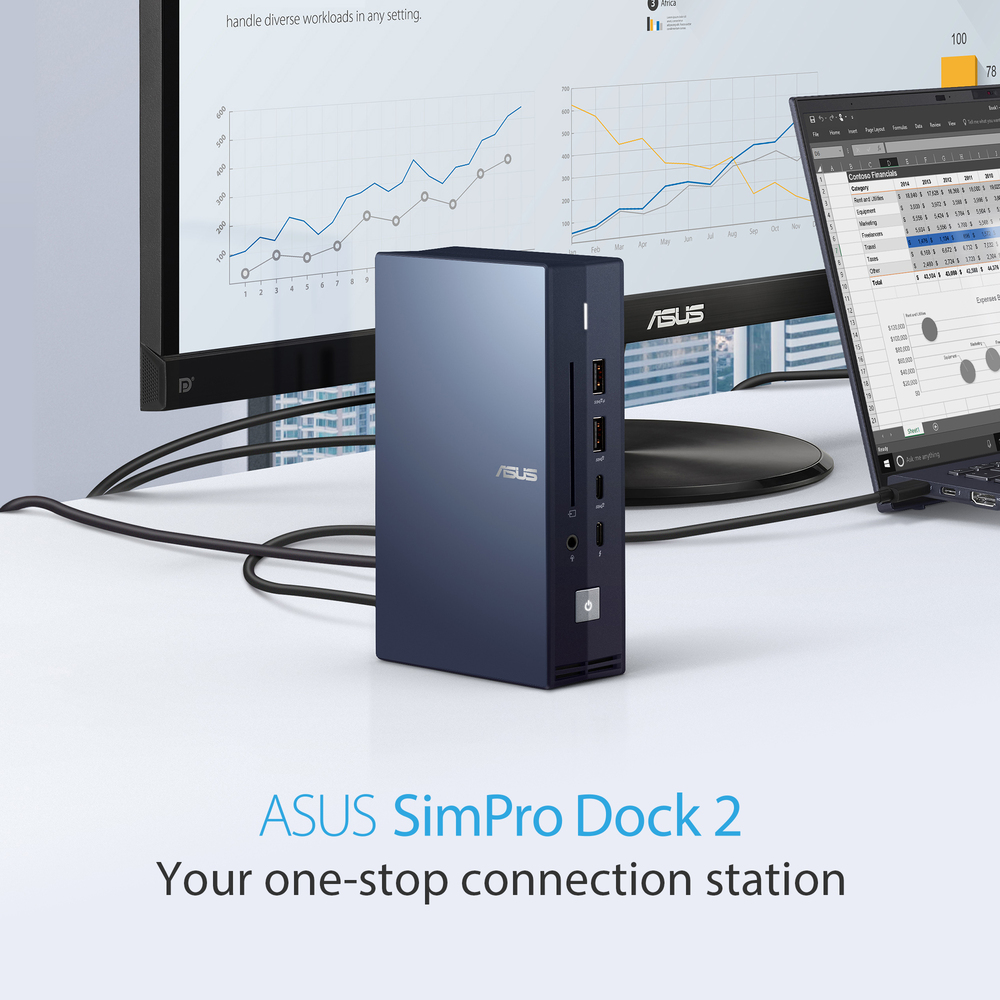

Your one-stop connection stationASUS SimPro Dock 2 is a sleek, compact one-stop dock that streamlines laptop connectivity. Attach your laptop via a single cable and it’s powered, connected to your network and peripherals, and is primed for multitasking across up to four monitors1 — including an up to 8K display2. It also has an integrated smart card reader for a diverse array of business. Simply, SimPro Dock 2 keeps your desk neat, tidy and organised while setting you up for work in the blink of an eye.
Description

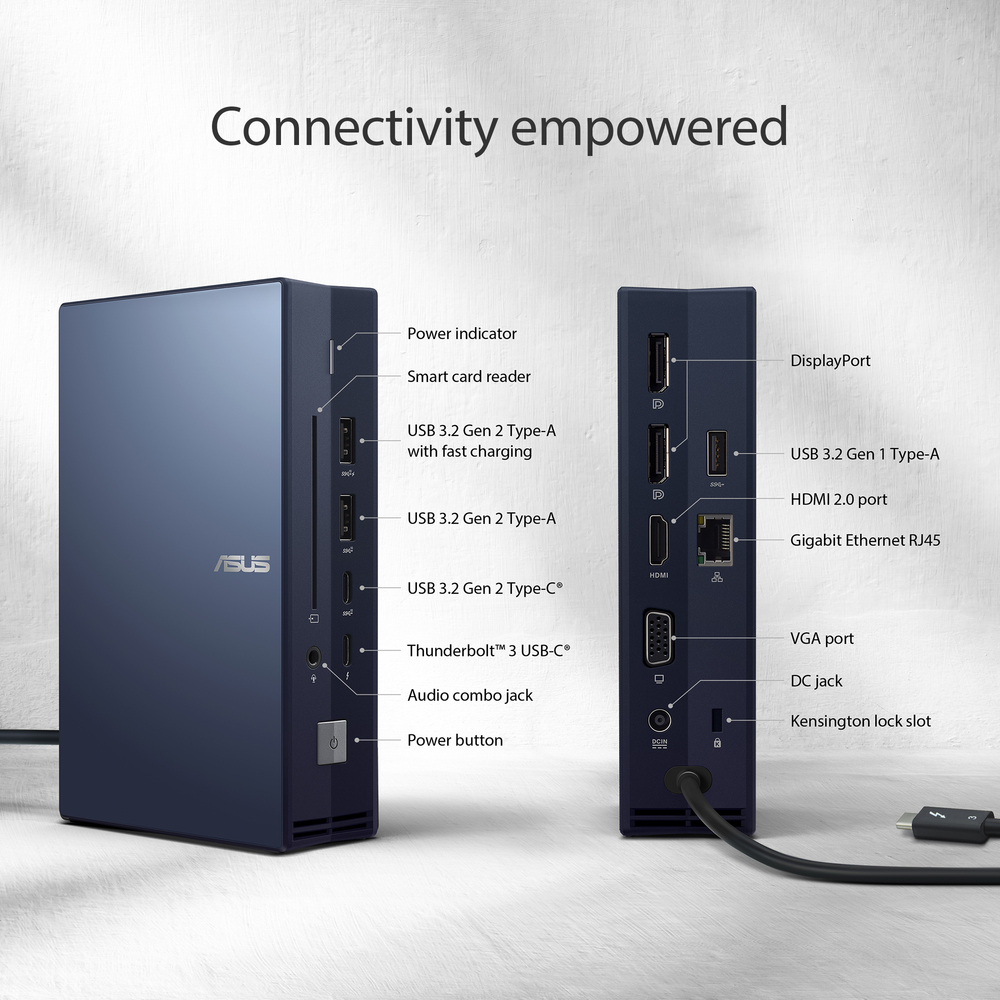

Connectivity empowered SimPro 2 Dock is loaded with diverse ports, slots and jacks, including a built-in smart card reader for security and credit card-based financial transaction. So it’s ready to connect almost any device you need — today or tomorrow.A total of five USB connections ensures easy connectivity and compatibility with a vast array of peripherals, including external hard drives, printers and scanners. SimPro Dock 2 also has Thunderbolt™ 3 for ultrafast up to 40 Gbps data transfer speeds, fast charging and video output. There’s even USB 3.2 Gen 2 Type-A that can fast-charge everyday devices, such as smartphones and tablets.

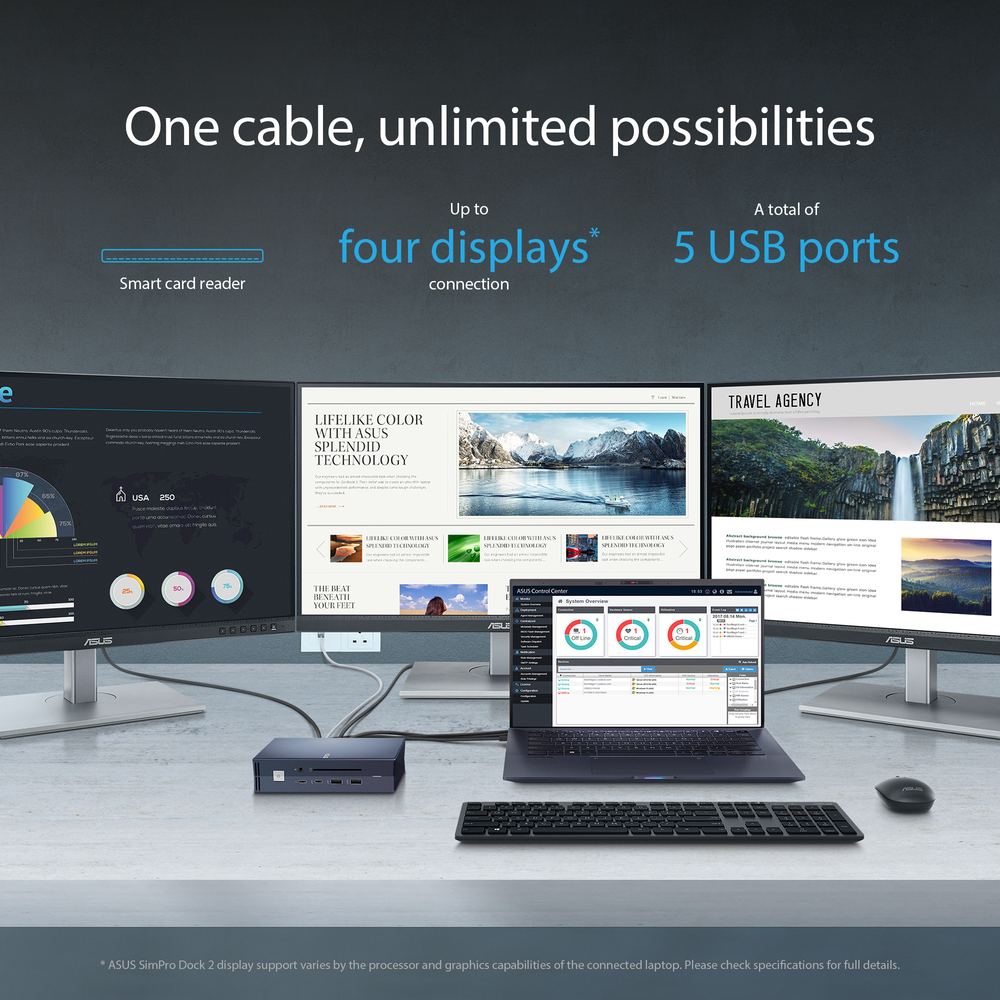

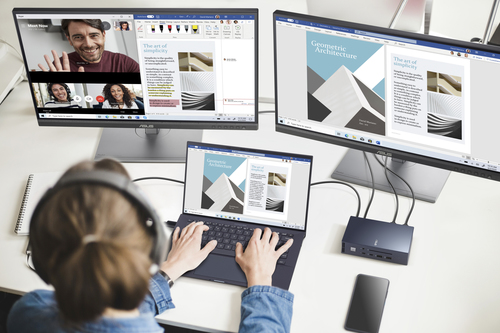

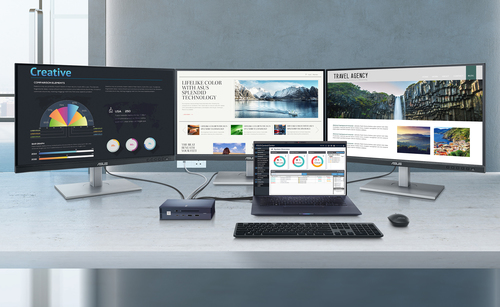

Connect up to four displays1 at once, making it easier to manage multiple applications and extend your workspace. When attached to a laptop that supports Display Stream Compression (DSC), SimPro Dock 2 supports up to one 8K display2 — delivering crisp and detailed visuals. It also has DisplayPort™ 1.4, HDMI™ 2.0, traditional VGA connectivity, giving you the freedom to connect to also any display you need. As well, SimPro Dock 2’s DisplayPort functionality includes support for Multi-Steam Transport (MST), allowing multiple displays to be connected to a single DisplayPort socket.

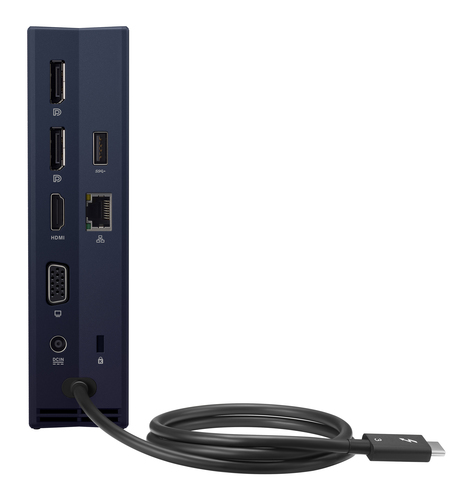

| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Thunderbolt 3 ports quantity | 1 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| Colour name | Star Black |
| Maximum digital resolution | 7680 x 4320 pixels |
| Maximum analog resolution | 1920 x 1080 pixels |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black, Blue |
| On/off switch | Yes |
| Charging function | Yes |
| Brand compatibility | Asus |
| Compatibility | ExpertBook B9 series: B9450FA, B9450FAV, B9400CEA, B9400CEAV, B9400CBA, B9403CVA ExpertBook B7 series: B7402FEA, B7402FBA, B7402FVA ExpertBook B6 series: B6602FC2 ExpertBook B5 series: B5602FBN, B5602FBA, B5602CVN, B5602CVA, B5602CBN, B5602CBA, B5402FVA, B5402FEA, B5402FBA, B5402CVA, B5402CEA, B5402CBA, B5302CBA, B5302FBA, B5302CEA, B5302FEA ExpertBook B3 series: B3402FEA, B3402FBA ExpertBook B2 series: B2502FVA, B2502FBA, B2502CVA, B2502CBA, B2402FVA, B2402FBA, B2402CVA, B2402CBA ExpertBook B1 series: B1502CVA ,B1502CGA, B1502CBA, B1500CEPEY, B1500CEPE, B1500CEAEY, B1500CEAE, B1500CBA, B1402CVA, B1402CGA, B1402CBA, B1400CEPEY, B1400CEPE, B1400CEAEY, B1400CEAE, B1400CBA ExpertBook L2 series: L2402CYA, L2402FYA, L2502CYA, L2502FYA ExpertBook L1 series: L1400CDA, L1500CDA, L1400CDAY, L1500CDAY ASUS Pro Series: P1412CEA, P1512CEA, P2451FB, P2451FA, P2451FAV ASUS BR series: BR1402CGA, BR1402FGA, BR1102CGA, BR1102FGA, BR1100FKA, BR1100CKA |
| Power | |
| Power source type | DC |
| Power supply | 180 W |
| Software | |
| Windows operating systems supported | Yes |
| Weight & dimensions | |
| Width | 40.6 mm |
| Depth | 99 mm |
| Height | 161.5 mm |
| Weight | 650 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
