HPE Smart Choice DL345 G11 9115 2x32G 8LFF SSD EU Svr

P81838-425 - 190017795706

HPE ProLiant DL345 Gen11 9115 3.2GHz 16c 1P 2x32GB-R 8LFF MR416i-p 2x960GB SSD 2x1000W PS EU Server

Brand: Hewlett Packard Enterprise
Product code: P81838-425
SKU: CJ89Y1DI2SEQU
EAN/GTIN: 190017795706

This HPE pre built server includes the following:
2x P64985-B21 = HPE 32GB 1x32GB Dual Rank x8 DDR5-6400
2x P47808-B21 = HPE 960GB SATA 6G Read Intensive LFF (3.5in) Low Profile Carrier Value Multi Vendor SSD
2x P03178-B21 = HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit

€11500.94 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

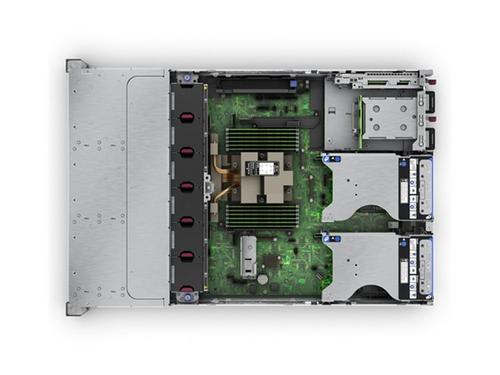

The HPE ProLiant DL345 Gen11 server is a scalable 2U 1P solution that delivers exceptional compute performance and large capacity storage options at 1P economics. Powered by 4th Generation AMD EPYC Processors with up to 96 cores, increased memory bandwidth, high-speed PCIe Gen5 I/O and EDSFF storage, up to 20LFF/ 34SFF, and up to 4 GPUs at the front, this server is a superb single-socket 2U solution for your data-intensive workloads. Enhanced security features with the HPE silicon root of trust are built into the firmware, creating a digital fingerprint for the AMD Secure Processor to validate safe operation before boot. The HPE DL345 Gen11 server provides impressive storage performance and options for dataintensive workloads like software-defined storage, video transcoding, and virtualized apps.

Description

Efficient management

Equipped with Integrated Lights-Out 6 remote management controller and IPMI 2. 0, this server simplifies and streamlines server setup, health monitoring, and management, allowing for reduced operational costs and improved server uptime.

High-speed performance

Powered by AMD EPYC processor and supported by HPE SmartMemory with a speed of 4800 MHz, the DL345 Gen11 ensures high-speed performance and reliability, making it suitable for demanding workloads.

Flexible storage options

With 8 hot-swap server storage bays and a RAID storage controller featuring a 4 GB buffer size, this server offers flexible storage options and enhanced data protection, suitable for various storage requirements.

Advanced connectivity

Featuring a range of networking protocols including Ethernet, Fast Ethernet, and Gigabit Ethernet, along with PCIe 5. 0 x16 expansion slots, this server provides advanced connectivity options for high-speed data transfer and networking flexibility.

Energy-efficient design

ENERGY STAR certified and compliant with multiple environmental standards, the DL345 Gen11 server combines performance with energy efficiency, contributing to lower operating costs and a reduced environmental footprint.

Specifications

Monitor

Monitor Type None.

Processor / Chipset

CPU Qty 1

Max CPU Qty 1

CPU Upgradability Upgradable

Clock Speed 2.6 GHz

Max Turbo Speed 4.1 GHz

Number of Cores 16-core

CPU AMD EPYC 9115

Power

Installed Qty 2

Max Supported Qty 2

Device Type Power supply - hot-plug

Power Provided 1000 Watt

Power Redundancy Yes

Voltage Required AC 100-120/200-240 V

Power Redundancy Scheme 1+1

80 PLUS Certification 80 PLUS Titanium

General

Type Server

Hot-Swap Bays Qty 8

Built-in Devices Led panel

Server Scalability 1-way

Product Form Factor Rack-mountable - 2U

Embedded Security Trusted Platform Module (TPM 2.0) Security Chip

Localisation Region: Europe, Middle East, Africa

Environmental Parameters

Min Operating Temperature 10 °C

Max Operating Temperature 35 °C

Humidity Range Operating 8 - 90% RH (non-condensing)

Dimensions & Weight

Width 44.8 cm

Height 8.75 cm

Depth 66.3 cm

Weight 16.97 kg

Cache Memory

Cache Per Processor 64 MB

Installed Size L3 Cache - 64 MB

Graphics Controller

Video Memory 16 MB

Video Interfaces VGA

Sustainability Information

ENERGY STAR Version 4.0

ENERGY STAR Certified Yes

Storage Controller

Channel Qty 16

Buffer Size 8 GB

RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60

Controller Interface Type Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)

Storage Controller Name HPE MR416i-p Gen11 SPDM

Type 1 x RAID - OCP 3.0

Dimensions & Weight (Shipping)

Shipping Height 27 cm

Shipping Width 60 cm

Shipping Depth 91.77 cm

Networking

Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet

Ethernet Ports 4 x Gigabit Ethernet

Features Wake on LAN (WoL), PXE support

Ethernet Controller Broadcom BCM5719

Interface (Bus) Type Open Compute Project mezzanine (OCP) 3.0

Remote Management Controller Integrated Lights-Out 6

Remote Management Protocol IPMI 2.0, SNMP 3

Manufacturer Warranty

Service & Support Limited warranty - parts and labour - 3 years - on-site - response time: next business day

RAM

Rated Memory Speed 3200 MHz

Effective Memory Speed 3000 MHz

Configuration Features 2 x 32 GB

Form Factor DIMM 288-pin

Slots 12 (Total) / 10 (empty)

Technology DDR5 SDRAM

Installed Size 64 GB (installed) / 3 TB (max)

Features HPE SmartMemory, registered

Hard Drive

Type SSD

Interface Type SATA 6Gb/s

Capacity 2 x 960 GB

Features HPE Multi Vendor, Read Intensive

Expansion / Connectivity

Bays 8 (total) / 6 (free) x hot-swap 3.5" LFF

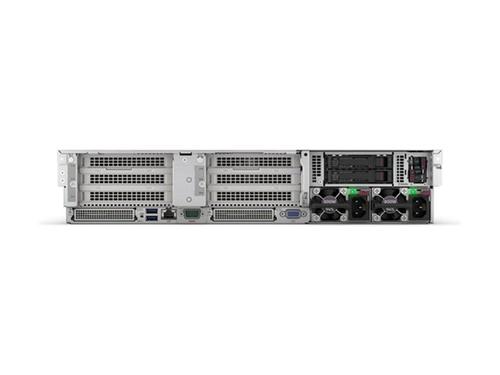

Interfaces 1 x HPE iLO (1 in front) (service port)5 x USB 3.2 Gen 1 (1 front, 2 rear, 2 internal)1 x VGA4 x LAN (Gigabit Ethernet)

Slots 2 (total) / 2 (free) x PCIe 5.0 x16 - half-length, full-height (x16 mode)2 (total) / 0 (free) x Open Compute Project mezzanine (OCP) 3.0

Optical Storage

Type No optical drive

Miscellaneous

Manufacturer Selling Program HPE Smart Choice

Compliant Standards WEEE, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, ACPI 6.1, UEFI 2.7, SMBIOS 3.1, Redfish API, AES, Triple DES, UEFI Class 3, Active Directory v1.0, APML 1.0

Included Accessories 6 x standard fans, HPE standard heatsink, HPE Easy Install Rail 2 Kit
