Lenovo ThinkPad Thunderbolt 3 Workstation Gen 2
40ANY230UK - 193638285953

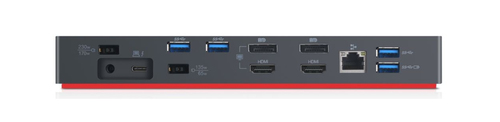

Lenovo ThinkPad Thunderbolt 3 Workstation Dock Gen 2 - Port replicator - Thunderbolt 3 - 2 x HDMI, 2 x DP, Thunderbolt - 1GbE - 230 Watt
- Brand
- Lenovo
- Product code
- 40ANY230UK
- SKU
- W2143HMEVG8N8
- EAN/GTIN
- 193638285953
- One Power, More Space: A 230W power adapter that’s 30% slimmer than the previous generation saves you desk space without costing you performance and allows you to quickly charge your 170W Mobile Workstation or 65W to ThinkPad Classic Notebook via a single cable
- Expanded Support, Extra Possibilities: Do more and be more with added support for Thinkpad Classic Systems thanks to Split Slim Tip and Thunderbolt docking ports. Upgrade either device with one cable video, data, and power
- Superior Networking, Secure Data: The dock provides advanced, secure network manageability such as PXE boot and Wake-On LAN. It also supports passing ThinkPad Mac though the dock for IT to identify the system
€472.83
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
The ThinkPad Thunderbolt 3 Workstation Dock Gen 2 (40AN) turns your ThinkPad Mobile Workstation into a productivity powerhouse, adding support for multi 4K displays, optimized one cable charging, a slew of expansion ports, and advanced network manageability features.
Specifications
Ports & interfaces
Connectivity technology
Wired
Host interface
Thunderbolt 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
HDMI ports quantity
2
DisplayPorts quantity
2
Microphone in
No
Combo headphone/mic port
Yes
DC-in jack
Yes
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Performance
Card reader integrated
No
Maximum digital resolution
3840 x 2160 pixels
Product colour
Black
Brand compatibility
Lenovo
Compatibility
ThinkPad L390 (20NR, 20NS), ThinkPad L390 Yoga (20NT. 20NU), Thinkpad L490 (20Q5,20Q6), Thinkpad L590 (20N7,20N8), Thinkpad E590 20NB, 20NC), Thinkpad E490 (20N8, 20N9), Thinkpad E490s (20NG)
Certification
CE-EMC, TUV Mark,KCC,Serbia Kvalitet, CU EAC
Audio
Built-in speaker(s)
No
Software
Windows operating systems supported
Windows 10
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
220 mm
Depth
80 mm
Height
30 mm
Weight
525 g
Packaging data
Quantity per pack
1 pc(s)
Package width
270 mm
Package depth
195 mm
Package height
85 mm
Package weight
1.9 kg
Packaging content
Cables included
AC, Thunderbolt
AC adapter included
Yes
Quick start guide
Yes
User guide
Yes
Logistics data
Harmonized System (HS) code
84733020
