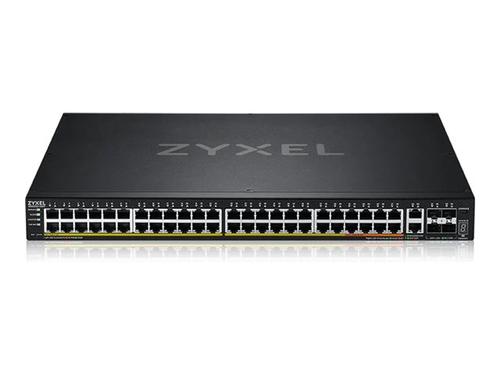

Zyxel XGS2220 Series XGS2220-54FP - switch - L3 access - 48 ports - Managed - rack-mountable
XGS2220-54FP-GB0101F - 4718937625147
Zyxel XGS2220 Series XGS2220-54FP - switch - L3 access - 48 ports - Managed - rack-mountable
- Brand
- Zyxel
- Product code
- XGS2220-54FP-GB0101F
- SKU
- Z00LLBB9MOVEX
- EAN/GTIN
- 4718937625147
- Switch
- L3 access
- Managed
- 48 x Gigabit Ethernet + 6 x 10 Gigabit (uplink)
- desktop, rack-mountable
- PoE+ (960 W)
- Weight: 6.24 KG
- Handles a high-bandwidth applications easily with up to six 10G connectivity
- Tailor-made Networked AV mode brings efficiency to professional AVoIP networking setups and monitoring services
- PoE++ provides 60 W for each port respectively with high power budget of up to 960 W
- Support Multi-Gigabit - 100M/1G/2.5G/5G/10G connections
€1478.59
(Inc. VAT)
(Delivery 2-4 working days)
Product Info
In addition to four 10G SFP+ uplink, it comes with two additional 10G Multi-Gigabit (1G/2.5G/5G/10G) RJ-45 ports for more flexible connectivity. PoE models XGS2220-54FP provide additional power over Ethernet capability. This Series is built with smart fan designed to automatically adjust speeds based on the device temperature, offering near silence while the Switch is in operation.
| General | |
|---|---|
| Flash Memory | 64 MB |
| RAM | 1 GB |
| MAC Address Table Size | 32K entries |
| Routing Protocol | IGMP |
| Subtype | 10 Gigabit Ethernet |
| PoE Budget | 960 W |
| Power Over Ethernet (PoE) | PoE+ |
| Device Type | Switch - 48 ports - Managed |
| Enclosure Type | Desktop, rack-mountable |
| Jumbo Frame Support | 9000 bytes |
| Compliant Standards | IEEE 802.3at, IEEE 802.3bt |
| Capacity | Routing tables: 64IP interfaces: 32IPv4 forwarding table entries: up to 1000IPv6 forwarding table entries: up to 512 |
| Ports | 48 x Gigabit Ethernet + 6 x 10 Gigabit (uplink) |
| Performance | Switching capacity: 216 GbpsForwarding rate: 161 MppsPacket buffer size: 2 MB |
| Features | Layer 3 switching, 2KV Surge protection, 6KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), IGMP snooping, Smart Fan |
| Expansion / Connectivity | |
| Interfaces | 40 x 100 / 1000Base-T RJ-45 PoE+8 x 100 / 1000Base-T RJ-45 PoE++ - 60 W2 x 1/2.5/5/10GBase-T RJ-45 PoE++ - 60 W4 x 1/10GBase-SX SFP+ |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Localisation | United Kingdom |
| Included Accessories | Power cord |
| MTBF | 227,352 hours |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Dimensions & Weight | |
| Weight | 5 kg |
| Depth | 33 cm |
| Height | 4.4 cm |
| Width | 44.1 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 58 cm |
| Shipping Height | 9.5 cm |
| Shipping Depth | 50.3 cm |
| Shipping Weight | 6.33 kg |
