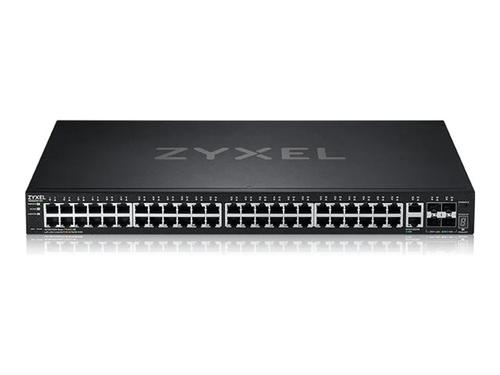

Zyxel XGS2220 Series XGS2220-54 - switch - L3 access - 48 ports - Managed - rack-mountable
XGS2220-54-GB0101F - 5054444717142
Zyxel XGS2220 Series XGS2220-54 - switch - L3 access - 48 ports - Managed - rack-mountable
- Brand
- Zyxel
- Product code
- XGS2220-54-GB0101F
- SKU
- 7T1MJANUXFVRQ
- EAN/GTIN
- 5054444717142
- Switch
- L3 access
- Managed
- 48 x Gigabit Ethernet + 6 x 10 Gigabit (uplink)
- desktop, rack-mountable
- Weight: 4.84 KG
- Handles a high-bandwidth applications easily with up to six 10G connectivity
- Tailor-made Networked AV mode brings efficiency to professional AVoIP networking setups and monitoring services
- Support Multi-Gigabit - 100M/1G/2.5G/5G/10G connections
€792.57
(Inc. VAT)
(Delivery 2-4 working days)
Product Info
The XGS2220 Series is a family of Layer 3 access Switch. In addition to four 10G SFP+ uplink, it comes with two additional 10G Multi-Gigabit (1G/2.5G/5G/10G) RJ-45 ports for more flexible connectivity. Non-PoE models XGS2220-54 provide 48 Gigabit desktop ports for every day network access. This Series is built with smart fan designed to automatically adjust speeds based on the device temperature, offering near silence while the Switch is in operation.
Description
Efficient routing capabilities The Zyxel XGS2220-54 supports up to 1000 IPv4 and 512 IPv6 forwarding table entries, making it capable of handling extensive routing tasks effectively. High performance metrics With a switching capacity of 216 Gbps and a forwarding rate of 161 Mpps, this switch is optimized for high-speed data transmission and efficient traffic management. Robust environmental adaptability The device operates in temperature ranges from -20°C to 50°C, ensuring reliable performance in various operational environments. Enhanced network security Features such as 2KV surge protection and an 8KV air-gap discharge ESD protector help maintain the integrity and security of network operations. Extensive connectivity options Equipped with 48 Gigabit Ethernet ports and multiple 10 Gigabit uplink ports, the Zyxel XGS2220-54 provides ample connectivity for expanding network needs.| General | |
|---|---|
| Flash Memory | 64 MB |
| RAM | 1 GB |
| MAC Address Table Size | 32K entries |
| Routing Protocol | IGMP |
| Subtype | 10 Gigabit Ethernet |
| Device Type | Switch - 48 ports - Managed |
| Enclosure Type | Desktop, rack-mountable |
| Jumbo Frame Support | 9000 bytes |
| Capacity | Routing tables: 64IP interfaces: 32IPv4 forwarding table entries: up to 1000IPv6 forwarding table entries: up to 512 |
| Ports | 48 x Gigabit Ethernet + 6 x 10 Gigabit (uplink) |
| Performance | Switching capacity: 216 GbpsForwarding rate: 161 MppsPacket buffer size: 2 MB |
| Features | Layer 3 switching, 2KV Surge protection, 6KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), IGMP snooping, Smart Fan |
| Expansion / Connectivity | |
| Interfaces | 48 x 100 / 1000Base-T RJ-452 x 1/2.5/5/10GBase-T uplink4 x 1/10GBase-X SFP+ uplink |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Localisation | United Kingdom |
| Included Accessories | Power cord |
| MTBF | 298,735 hours |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Dimensions & Weight | |
| Height | 4.4 cm |
| Depth | 27 cm |
| Width | 44.1 cm |
| Weight | 3.85 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 35.5 cm |
| Shipping Height | 10.7 cm |
| Shipping Width | 61.6 cm |
| Shipping Weight | 5.18 kg |
