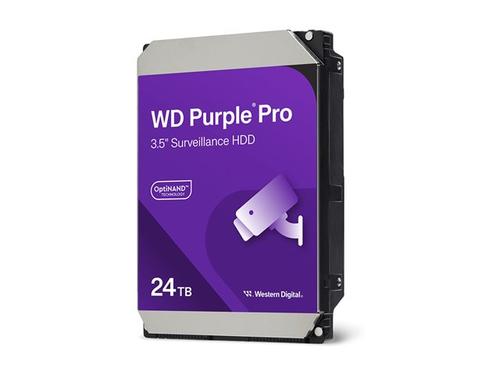

WD Purple Pro WD241PURP - hard drive - 24 TB - surveillance, smart video - SATA 6Gb/s
WD241PURP - 718037905488
WD Purple Pro WD241PURP - hard drive - 24 TB - surveillance, smart video - SATA 6Gb/s
- Brand
- Western Digital
- Product code
- WD241PURP
- SKU
- Y8X6BQDVOOED1
- EAN/GTIN
- 718037905488
- Hard drive
- 24 TB
- surveillance, smart video
- internal
- 3.5"
- SATA 6Gb/s
- 7200 rpm
- buffer: 512 MB
- Weight: 0.66 KG
- 24 TB capacity for extensive surveillance storage
- Supports up to 64 cameras for optimal monitoring
- Designed for 24/7 operation with durability
- Advanced Format technology for effective data management
- Quiet operation with just 25 dBA sound emission
Product Info
The WD 24 TB internal hard drive is designed for surveillance and smart video applications, offering performance and reliability for 24/7 operations. With a capacity of 24 TB, it supports up to 64 cameras and utilizes Advanced Format technology for optimal storage efficiency. The drive operates at a spindle speed of 7200 rpm and features a data transfer rate of 600 MBps, ensuring swift access to stored data. Its OptiNAND technology leverages NAND flash to enhance performance and reliability, suitable for continuous recording and playback scenarios. This hard drive withstands a range of environmental conditions, with a maximum operating temperature of 65°C and storage temperatures reaching up to 70°C. Additionally, it has a sound emission of just 25 dBA, making it a quiet choice for video surveillance setups. The drive's durability is backed by an MTBF of 2,500,000 hours and a load/unload cycle rating of 600,000, ensuring longevity under intensive workloads.
Description
Reliable performance The hard drive operates with a spindle speed of 7200 rpm and an internal data rate of 287 MBps, ensuring efficient access to stored data, ideal for video surveillance. Efficient data handling With Advanced Format technology and a data transfer rate of 600 MBps, this drive maximizes storage efficiency and performance for video data. Durable design Built to last, the drive has an MTBF of 2,500,000 hours and is designed to endure harsh operating conditions with a maximum operating temperature of 65°C. Exceptional environmental tolerance The WD hard drive can withstand storage temperatures from -40°C to 70°C, making it suitable for diverse applications and installations. Whisper-quiet operation Operating at just 25 dBA sound emission, this hard drive ensures noise-free monitoring, ideal for residential and commercial surveillance systems.| General | |
|---|---|
| Buffer Size | 512 MB |
| Form Factor | 3.5" |
| Width | 101.6 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 690 g |
| Capacity | 24 TB |
| Device Type | Hard drive - internal |
| Interface | SATA 6Gb/s |
| Features | Advanced Format technology, Conventional magnetic recording (CMR), tarnish-resistant, support up to 64 cameras, AllFrame AI, OptiNAND technology, 24x7 availability |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | BSMI, ICES-003, NMB-003, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB Scheme, TUV, UL, ROHS Directive 2015/863/EU, ROHS Directive 2011/65/EU |
| Power | |
| Power Consumption | 6.2 Watt (read/write)5.7 Watt (idle)1.1 Watt (standby)1.1 Watt (sleep) |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 65 °C |
| Max Storage Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Sound Emission | 25 dBA |
| Shock Tolerance (operating) | 40 g @ 2 ms |
| Shock Tolerance (non-operating) | 200 g @ 2 ms |
| Performance | |
| Spindle Speed | 7200 rpm |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 287 MBps |
| Reliability | |
| Non-Recoverable Errors | 1 per 10^15 |
| 24x7 Operation | Yes |
| Load / Unload Cycles | 600,000 |
| MTBF | 2,500,000 hours |
| Software & System Requirements | |
| Software Included | Western Digital Device Analytics |
| Expansion & Connectivity | |
| Compatible Bay | 3.5" |
| Interfaces | 1 x SATA 6 Gb/s |
