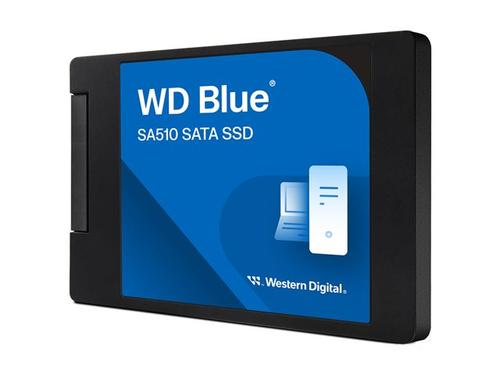

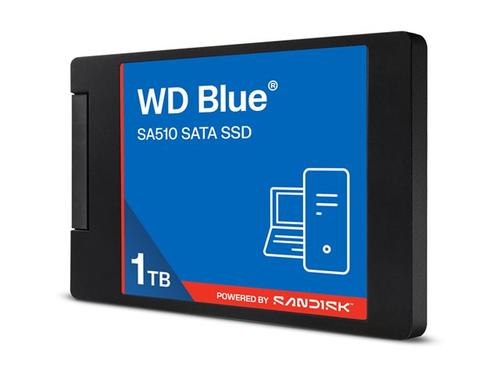

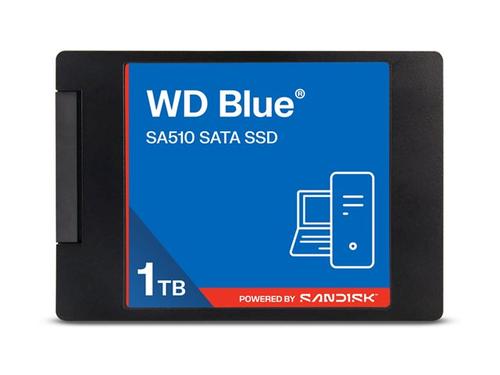

SSD Blue SATA 1TB 2.5

General

Form Factor 2.5"

Height 7 mm

Depth 100.2 mm

Capacity 1 TB

Width 69.85 mm

Device Type Solid state drive - internal

Weight 34.6 g

Interface SATA 6Gb/s

Manufacturer Warranty

Service & Support Limited warranty - 5 years

Miscellaneous

Compliant Standards FCC, UL, TUV, KC, BSMI, VCCI, Morocco

Power

Power Consumption 60 mW (active)1800 mW (read)2000 mW (write)36 mW (sleep)12 mW (DevSleep)

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 70 °C

Max Storage Temperature 85 °C

Min Storage Temperature -55 °C

Shock Tolerance (operating) 1500 g @ 0.5 ms half-sine

Vibration Tolerance (operating) 5 gRMS @ 10-2000 Hz

Performance

SSD Endurance 400 TB

Drive Transfer Rate 600 MBps (external)

Internal Data Rate 560 MBps (read) / 520 MBps (write)

4KB Random Read 90000 IOPS

4KB Random Write 82000 IOPS

Reliability

MTBF 2,250,000 hours

Software & System Requirements

Software Included Western Digital Dashboard, Acronis True Image

Expansion & Connectivity

Compatible Bay 2.5"

Interfaces 1 x SATA 6 Gb/s
