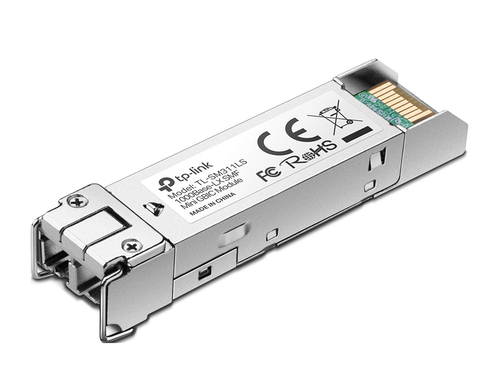

TP-Link TL-SM311LS network transceiver module
TP-Link TL-SM311LS network transceiver module Fiber optic 1250 Mbit/s mini-GBIC/SFP 1310 nm
- Brand
- TP-Link
- Product code
- SM311LS
- SKU
- LRZH383LC6CPI
- EAN/GTIN
- 1210002619301
- Single-mode MiniGBIC module
- Compatible with all SFP ports on TP-Link product including JetStream switches, and media converter MC220L
- Work with MC210CS with single mode fiber connection
€29.72
(Inc. VAT)
(Delivery 2-4 working days)
Product Info
TP-Link TL-SM311LS. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: mini-GBIC/SFP. Compliance certificates: RoHS
The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | mini-GBIC/SFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC (UPC) |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Networking standards | IEEE 802.3z |
| Certificates | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Logistics data | |
| Harmonized System (HS) code | 85369010 |
