TP-Link SM6110-SR network transceiver module
SM6110-SR - 5054444995281

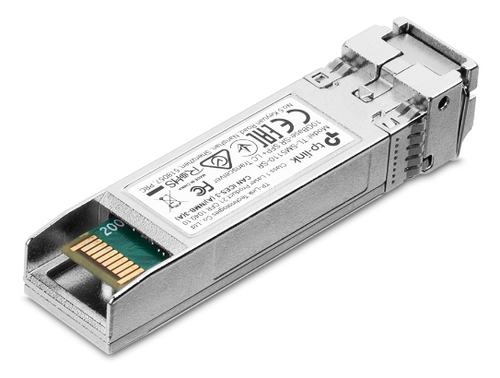

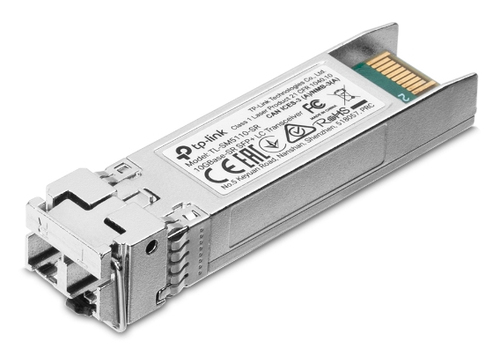

TP-Link SM6110-SR network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm
- Brand
- TP-Link
- Product code
- SM6110-SR
- SKU
- P6DEPT9IA1041
- EAN/GTIN
- 5054444995281
- Multi-mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
- Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more
€70.69
(Inc. VAT)
(Delivery 2-4 working days)
Product Info
10GBase-SR SFP+ LC
TP-Link SM6110-SR. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Input voltage: 3.3 V. Certification: FCC, CE. Width: 61.3 mm, Depth: 14.5 mm, Height: 12.2 mm. Quantity per pack: 1 pc(s)
The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
Specifications
Performance
SFP transceiver type
Fiber optic
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Fiber optic connector
LC (UPC)
SFP transceiver standard
SR
Wavelength
850 nm
Digital Diagnostics Monitoring (DDM)
Yes
Features
Hot-swap
Yes
Power
Input voltage
3.3 V
Certificates
Certification
FCC, CE
Operational conditions
Minimum operating temperature
0 °C
Maximum operating temperature
70 °C
Storage temperature (T-T)
-40 - 80 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
61.3 mm
Depth
14.5 mm
Height
12.2 mm
Packaging content
Quantity per pack
1 pc(s)
