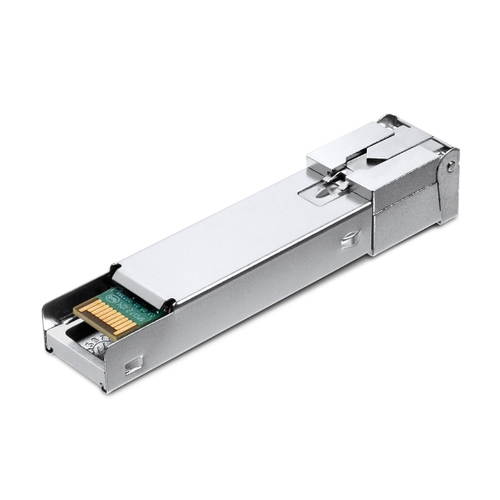

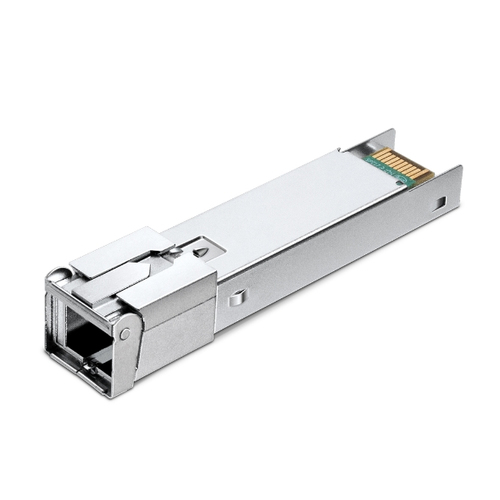

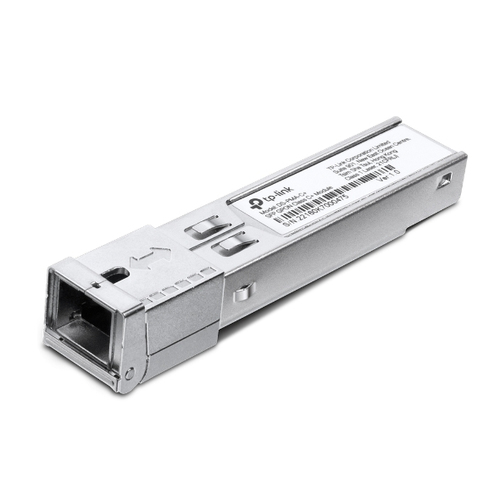

TP-Link DS-PMA-C+ network transceiver module
DS-PMA-C+ - 4897098687505
TP-Link SFP GPON Class C+ Module
- Brand
- TP-Link
- Product code
- DS-PMA-C+
- SKU
- WNO1TTA1JBN3R
- EAN/GTIN
- 4897098687505
- Single-fiber SFP GPON Class C+ Module
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with TP-Link GPON OLT, such as DS-P7001-16, DS-P7001-08, and DS-P7001-04
€52.6
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Tx: 2488.32Mbps, Rx: 1244.16Mbps, Tx: 1490nm, Rx: 1310nm, 20 km Max, GPON SFP
TP-Link SFP GPON Class C+ Module. SFP transceiver type: Fiber optic, Maximum data transfer rate: 2488.32 Mbit/s, Interface type: SFP. Product colour: Stainless steel. Input voltage: 3.3 V
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 2488.32 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 20000 m |
| Wavelength | 1490 nm |
| Tx wavelength (max) | 1490 nm |
| Rx wavelength (max) | 1310 nm |
| Tx power (min) | 3 dBmW |
| Tx power (max) | 7 dBmW |
| Rx power (min) | -30 dBmW |
| Rx power (max) | -12 dBmW |
| Features | |
| Product colour | Stainless steel |
| Hot-swap | Yes |
| Power | |
| Input voltage | 3.3 V |
