TP-Link Omada SM9220-1M InfiniBand/fibre optic cable
SM9220-1M - 8885020625516

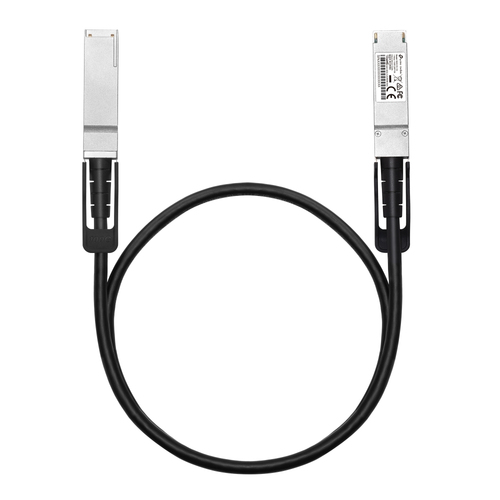

TP-Link Omada SM9220-1M InfiniBand/fibre optic cable QSFP28 Twinax Black
- Brand
- TP-Link
- Product Family
- Omada
- Product code
- SM9220-1M
- SKU
- 6W9KHI7QVS31T
- EAN/GTIN
- 8885020625516
- 100 Gbps data transmission
- QSFP28 connector on both sides
- Up to 1 m transmission distance
- Wide operating temperature
- Hot Swappable
€75.32
(Inc. VAT)
(Delivery 2-4 working days)
Product Info
Omada 1 Meter 100G QSFP28 Direct Attach Cable, 30AWG, 33 mm Bend Radius, Black
TP-Link Omada SM9220-1M. Cable length: 1 m, Cable type: Twinax, Connector 1: QSFP28, Connector 2: QSFP28
SM9220-1M is a passive Direct Attach Cable. With a passive Twinax cable assembly of 1 meter and two QSFP28 connectors on each side, SM9220-1M is suitable for short distance transmission of extreme-high speed data (100 Gbps) and offers a cost-effective way to connect within racks and across adjacent racks.
Specifications
Features
Cable length
1 m
AWG wire size
30
Cable shape
Round
Connector 1
QSFP28
Connector 2
QSFP28
Connector 1 gender
Male
Connector 2 gender
Male
Cable type
Twinax
Product colour
Black
Ethernet interface type
40 Gigabit Ethernet, 100 Gigabit Ethernet
Data transfer rate
100 Gbit/s
Jacket material
Optical fiber non-conductive riser (OFNR), Polyvinyl chloride (PVC)
Conductor material
Copper
Plug and Play
Yes
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC)
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Weight & dimensions
Bending radius
3.3 cm
Packaging content
Quantity per pack
1 pc(s)
Other features
Networking standards
IEEE 802.3, IEEE 802.3ba, IEEE 802.3bj
