TP-Link Omada POE10R network splitter
POE10R - 1210002618700
TP-Link Omada IEEE 802.3af PoE splitter
- Brand
- TP-Link
- Product Family
- Omada
- Product code
- POE10R
- SKU
- ALWUD0SCMN3JA
- EAN/GTIN
- 1210002618700
- IEEE 802.3af compliant

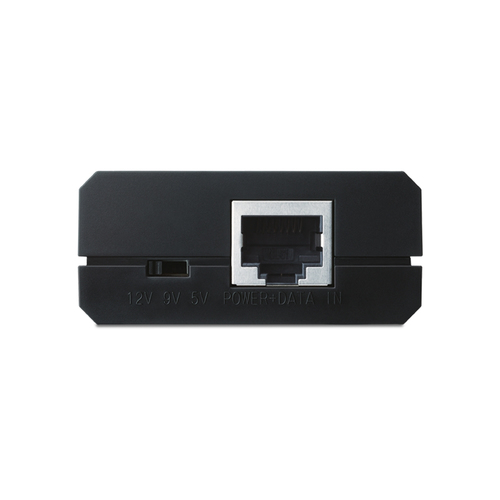

- Selectable power output
- Gigabit speed support
- Plug-and-Play, no configuration required
Product Info
IEEE 802.3af PoE splitter
TP-Link Omada IEEE 802.3af PoE splitter. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, Product colour: Black, LED indicators: Power. Certification: FCC, CE. Width: 80.8 mm, Depth: 54 mm, Height: 24 mm. Quantity per pack: 1 pc(s). Package width: 65 mm, Package depth: 198 mm, Package height: 65 mm
The PoE Splitter POE10R (TL-POE10R) fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK's TL-SF1008P or POE150S, or other equivalent product, to deliver 12V, 9V or 5V Direct Current to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
| Features | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| Power over Ethernet (PoE) | Yes |
| Product colour | Black |
| LED indicators | Power |
| Plug and Play | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| DC-out jack | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Certificates | |
| Certification | FCC, CE |
| Weight & dimensions | |
| Width | 80.8 mm |
| Depth | 54 mm |
| Height | 24 mm |
| Packaging content | |
| Quick installation guide | Yes |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 65 mm |
| Package depth | 198 mm |
| Package height | 65 mm |
| Package weight | 230 g |
| Package type | Box |
| Power | |
| Input voltage | 5, 9, 12 V |
