TP-Link Omada EAP725-Outdoor
EAP725-OUTDOOR - 1210002611008
TP-Link Omada EAP725-Outdoor 5000 Mbit/s White Power over Ethernet (PoE)
- Brand
- TP-Link
- Product Family
- Omada
- Product code
- EAP725-OUTDOOR
- SKU
- 4CLABYCNHK0VG
- EAN/GTIN
- 1210002611008
- Directional and Omnidirectional Antennas: Freely switch between modes via software for optimal signal control
- Plug & Play Auto-Sensing Antennas: Automatically detects antenna changes and switches between internal and external antennas as needed
- 4-Stream Dual-Band Wi-Fi 7: Up to 5.0 Gbps

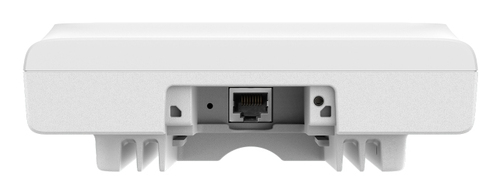

- 1× 2.5G PoE Port: Flexible PoE deployment reduces costs by delivering power and data over a single Ethernet cable
- Outdoor-Ready Durability: Features an IP66-rated weatherproof enclosure and 6kV lightning protection

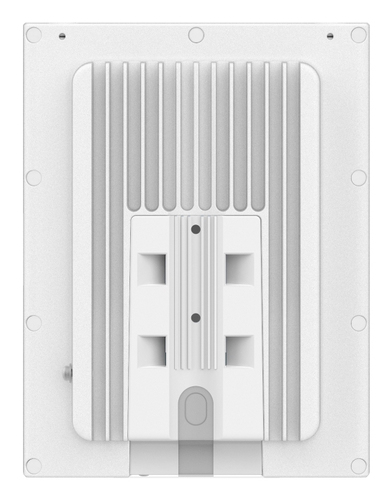

- Quick and Easy Setup: Features wall/pole mounting with Omada SDN for one-click setup
- Advanced Features: Centralized management, mesh, and seamless roaming
Product Info
Wi-Fi 7, 1x RJ-45, IP66, OFDMA, QoS, MLO, PoE+
TP-Link Omada EAP725-Outdoor. 2.4 GHz, 5 GHz, Maximum data transfer rate: 5000 Mbit/s. Security algorithms: OWE, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal,.... Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 18.4 W
Versatile Antennas Deployment
Adapt to any environment effortlessly by selecting the antenna type that suits your needs. Whether you require long-distance connectivity or need to cover multiple endpoints, easily switch between external omni, internal directional, or custom antenna configurations with just a few clicks in the software.
Auto-Sensing Plug & Play—No Expertise Needed
Automatically detects the attachment and removal of antennas (included) in auto mode and seamlessly switches between the internal and external antennas with zero configuration.
Outdoor-Ready IP66 Weatherproof Design
The EAP725-Outdoor features an IP66 weatherproof rating, ensuring reliable protection against heavy rain, dust, and harsh weather conditions.
Seamless Connectivity with Mesh and Roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
Works with Omada SDN for One-Click Setup
Omada SDN allows users to quickly set up the EAP725-Outdoor through automatic device identification and one‑click adoption.
Empowering Businesses with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 5000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4324 Mbit/s |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3at |
| Cabling technology | 10/100/1000/2500Base-T |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Bluetooth Low Energy (BLE) | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Virtual LAN features | Management VLAN |
| Rate limiting | Yes |
| Wireless isolation | Yes |
| Band steering | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
| Security | |
| Security algorithms | OWE, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 16 |
| Schedule access | Yes |
| Management features | |
| Web-based management | Yes |
| Syslog | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power consumption (max) | 18.4 W |
| Design | |
| Placement | Pole, Wall |
| Product colour | White |
| International Protection (IP) code | IP66 |
| Reset button | Yes |
| LED indicators | Status |
| Antenna | |
| Antenna type | Internal & external |
| Antennas quantity | 8 |
| Antenna gain level (max) | 13.2 dBi |
| Certificates | |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), Industry Canada (IC), JRF, NCC, RoHS, VCCI |
| Weight & dimensions | |
| Width | 208 mm |
| Depth | 160 mm |
| Height | 55 mm |
| Weight | 1.33 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
