TP-Link Omada EAP100-BRIDGE KIT bridge/repeater
EAP100-BRIDGE KIT - 1210002603775
TP-Link Omada EAP100-BRIDGE KIT bridge/repeater Network bridge 300 Mbit/s White
- Brand
- TP-Link
- Product Family
- Omada
- Product code
- EAP100-BRIDGE KIT
- SKU
- G7KDJ0ZZWGLCX
- EAN/GTIN
- 1210002603775
- Up to 1640 ft (500 m) Wi-Fi transmission
- Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever.
- Plug-and-Play Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go. Ideal for quick deployments.
- App-Guided Alignment: Visualized App-Guided Alignment for long-distance setups and Instant Speed Testing for installation verification.
- Flexible Power Supply: 802.3af PoE, 24V Passive PoE, and 12V DC (compatible with TP-Link solar power supply systems).
- 3× Fast Ethernet Ports: Connects more cameras and devices without an extra switch.
- Built for Tough Outdoor Conditions: Features an IP65 weatherproof enclosure and operating range of -40℉ to +158 ℉.
- Remote Monitoring & Management: Choose Standalone mode or Omada SDN mode for remote centralized management via Web UI or app.
€74.04
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
Omada 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge
TP-Link Omada EAP100-BRIDGE KIT. Maximum data transfer rate: 300 Mbit/s, Maximum transfer distance: 500 m. Antenna design: Internal, Antenna type: 2x2, Antenna gain level (max): 8 dBi. Top Wi-Fi standard: Wi-Fi 4 (802.11n). Ethernet LAN interface type: Fast Ethernet, Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af. Product type: Network bridge, Mounting type: Wall/Pole, Product colour: White
Seamless Point-to-Point Connections
Enjoy reliable network performance up to 1640 ft (500 m) transmission distance.
Specifications
Data transmission
Maximum data transfer rate
300 Mbit/s
Maximum transfer distance
500 m
Antenna
Antenna design
Internal
Antenna type
2x2
Antenna gain level (max)
8 dBi
Wireless LAN features
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 4 (802.11n)
Network
Ethernet LAN
Yes
Ethernet LAN interface type
Fast Ethernet
Networking standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Ports & interfaces
Ethernet LAN (RJ-45) ports
3
Security
MAC address filtering
Yes
Management features
Web-based management
Yes
Features
Product type
Network bridge
Mounting type
Wall/Pole
Product colour
White
Reset button
Yes
International Protection (IP) code
IP65
Power
DC input voltage
12 V
Power consumption (max)
4.8 W
Power over Ethernet (PoE)
Yes
Operational conditions
Operating temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
-40 - 158 °F
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Weight & dimensions
Width
79 mm
Depth
60 mm
Height
224 mm
Packaging data
Quantity per pack

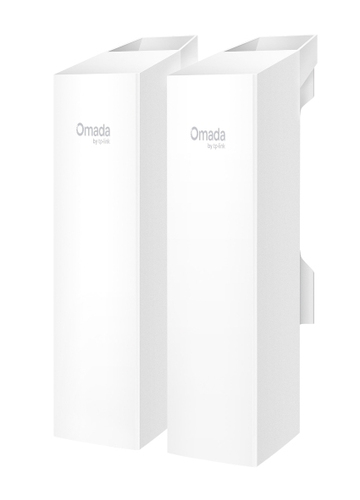

2 pc(s)
