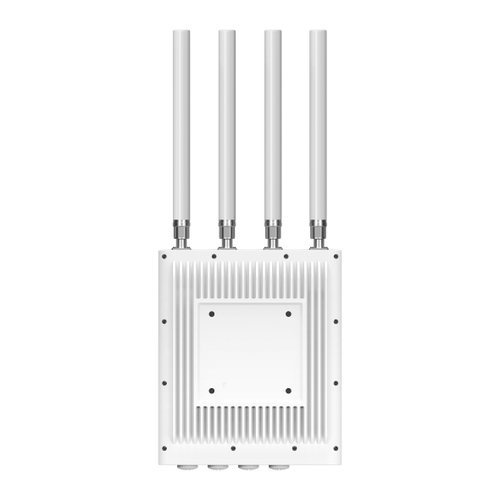

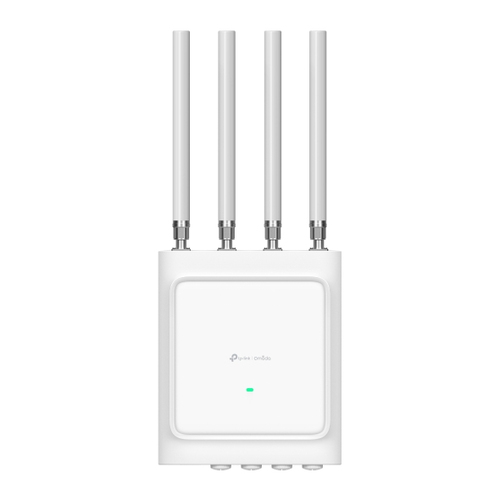

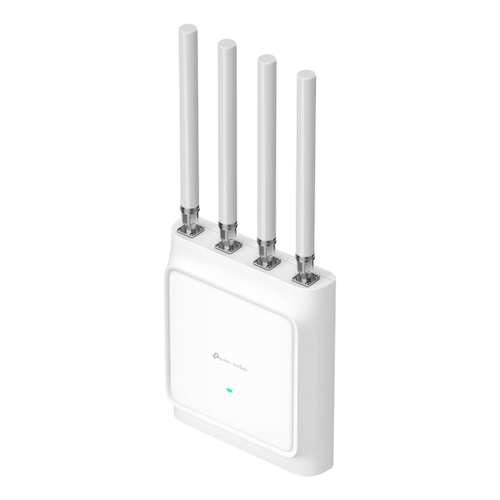

TP-Link EAP668 Outdoor HD
TP-Link EAP668 Outdoor HD 3500 Mbit/s White Power over Ethernet (PoE)
- Brand
- TP-Link
- Product code
- EAP668-OUTDOOR HD
- SKU
- 6Y94UFOW2HRNN
- EAN/GTIN
- 1210002602587
- Ultra-Fast 3.6 Gbps Wi-Fi 6 Speeds: 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz.
- High-Density Connectivity: Supports up to 1,024 devices.

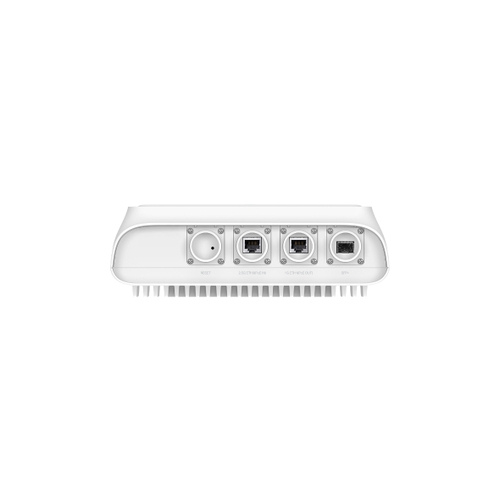

- Multiple Ports for Flexible Network Solutions: 1× 10G SFP+ slot, 1× 2.5G PoE-In port, and 1× Gigabit PoE-Out port.
- PoE+/PoE++ Powered and PoE+ Out: Supports 802.3at/bt PoE input and 802.3at PoE output.
- Ideal for Outdoor Environments: IP68-rated weatherproof enclosure, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C.
- Advanced Features: Omada Mesh, Seamless Roaming, Bluetooth, and Centralized Cloud Management.
€718.06
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
Ultra-High Capacity
TP-Link EAP668 Outdoor HD. 2.4 GHz, 5 GHz, Maximum data transfer rate: 3500 Mbit/s. Security algorithms: WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal. Power over Ethernet (PoE). Product colour: White
Ultra-High Capacity
Powered by a high-performance multi-core CPU and advanced QoS, the EAP668-Outdoor HD delivers optimal WiFi performance to support 1000+ connected devices.
Industry-Leading IP68 Weatherproof Design
The fully sealed EAP668-Outdoor HD surpasses IP67 standards, providing total dustproof protection and enduring prolonged submersion in water—ideal for even the harsh outdoor conditions.
Seamless Connectivity with Mesh and Roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
Easy and Quick Setup
Easy Installation through Wall and Pole Mount
Works with Omada SDN for One-Click Setup
Omada SDN allows users to quickly set up the EAP668-Outdoor HD through automatic device identification and one-click adoption.
Empowering Businesses with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 3500 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1148 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Bluetooth | Yes |
| Security | |
| Security algorithms | WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| Protocols | |
| DHCP client | Yes |
| Management features | |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Firmware upgradeable | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 3 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Pole |
| Product colour | White |
| Reset button | Yes |
| Antenna | |
| Antenna type | External |
| Antenna direction type | Omni-directional |
| Antennas quantity | 4 |
| Antenna gain level (max) | 6 dBi |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Weight & dimensions | |
| Width | 240 mm |
| Depth | 80 mm |
| Height | 315 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
