StarTech.com SIMPLEXSCAPCF fibre optic adapter
StarTech.com SC to SC Coupler 10 Pack, OS2 Single Mode SC Fiber Optic Coupler with Flange, SC/APC Simplex Adapter
- Brand
- STARTECH
- Product code
- SIMPLEXSCAPCF
- SKU
- U5M7P3M0W8MHQ
- EAN/GTIN
- 0065030937504
- Extend Multiple SC Connections: Deploy faster and more organized with a 10-pack of flanged SC/APC simplex fiber couplers, ideal for fiber distribution panels and enclosures in large-scale installations
- Reliable, High-Speed Performance: Engineered for 1/10/40/100Gbps transmission with low 0.2dB insertion loss and precision mating, this coupler maintains peak signal integrity and exceeds TIA-568 B.3 standards; Optimized for Single Mode laser sources
- Flanged Design for Secure Mounting: Secure the SC coupler into fixed panel mounts with the screw-in flanged body to eliminate port movement and ensure a stable physical connection point in high-density or permanent installations
- Single Mode Compatibility: Pair with SC simplex fiber cables with APC polished ends for optimal signal clarity and minimal return loss; Supports OS2/OS1 single mode connections over 9/125μm cores at standard 1260-1625nm wavelengths
- The IT Pro's Choice: Operations managers and network technicians rely on our network accessories for high-speed performance and end-to-end signal integrity; Engineered for reliable connections that minimize downtime, and backed by free lifetime 24/5 multi-lingual technical assistance
€24.44
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info

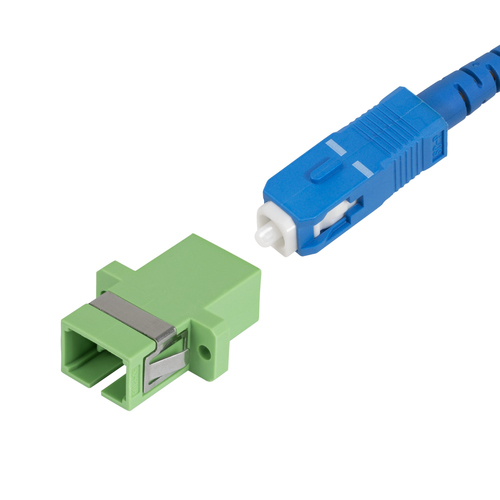

Connect two Single Mode SC/APC fiber cables or add an SC interface in a fiber breakout cassette
StarTech.com SC to SC Coupler 10 Pack, OS2 Single Mode SC Fiber Optic Coupler with Flange, SC/APC Simplex Adapter. Connector type: SC, Product colour: Green, Fiber mode structure: Single-mode. Compliance certificates: CE. Weight: 4 g. Quantity per pack: 10 pc(s), Package width: 160 mm, Package depth: 140 mm. Master (outer) case width: 420 mm, Master (outer) case length: 420 mm, Master (outer) case height: 270 mm
Connect two Single Mode SC/APC fiber cables or add an SC interface in a fiber breakout cassette

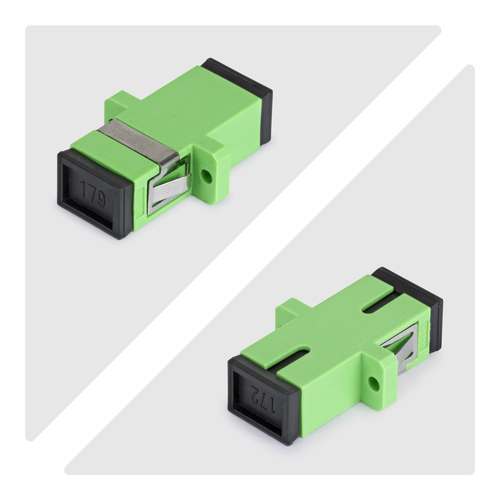

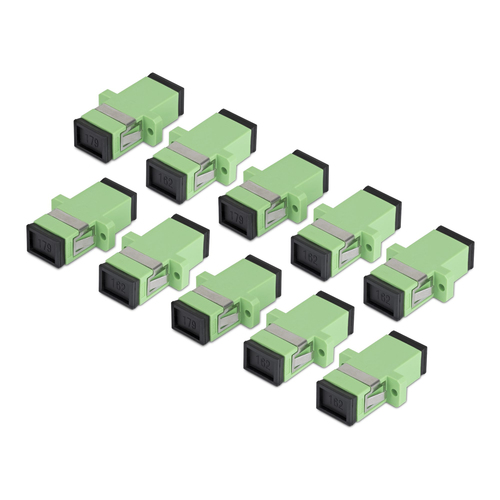

This 10-Pack of Single Mode SC fiber couplers is a practical solution for supporting multiple installations. Join two SC simplex connections in a fiber distribution panel or enclosure.

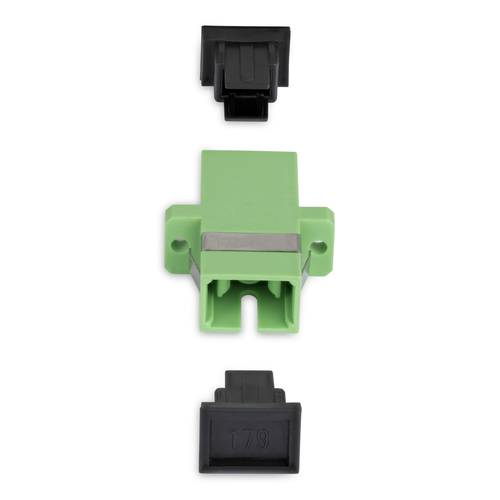

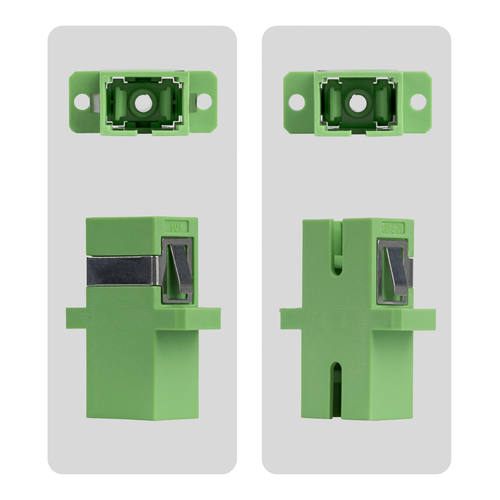

Flanged Design for Secure Mounting
The SC Fiber Coupler features a flanged body for secure placement in fixed installations, ensuring a stable connection point within fiber enclosures and mounting panels. It supports Single Mode SC simplex fiber cables and is compatible with OS1/OS2 (9/125µm) fiber core/cladding. This 10 Pack is ideal for fast deployment in enterprise networks and fiber infrastructure.
Built for Reliable Performance
The Single Mode SC/SC Fiber Coupler features a durable ABS housing and ceramic-lined inner sleeves for precise fiber alignment, minimizing signal loss for long-lasting reliability and performance.
| Features | |
|---|---|
| Number of connectors | 2 |
| Connector type | SC |
| Duplex | No |
| Product colour | Green |
| Fiber mode structure | Single-mode |
| Category | OS2 |
| Certificates | |
| Compliance certificates | CE |
| Weight & dimensions | |
| Weight | 4 g |
| Packaging data | |
| Quantity per pack | 10 pc(s) |
| Package width | 160 mm |
| Package depth | 140 mm |
| Package height | 10 mm |
| Package weight | 6 g |
| Logistics data | |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 420 mm |
| Master (outer) case height | 270 mm |
| Products per master (outer) case | 1440 pc(s) |
