Samsung QB13C-T

Display

Panel type ADS

Display diagonal 33 cm (13")

Display technology LCD

Display resolution 1920 x 1080 pixels

Display brightness 500 cd/m²

HD type Full HD

Touchscreen Yes

Touchscreen technology Capacitive

Response time 30 ms

Contrast ratio (typical) 600:1

Contrast ratio (dynamic) 10000:1

Viewing angle, horizontal 170°

Viewing angle, vertical 170°

Pixel pitch 0.153 x 0.153 mm

Display diagonal (metric) 33 cm

Horizontal scan range 30 - 81 kHz

Vertical scan range 48 - 75 Hz

Haze rate 25%

Pixel frequency (max) 148.5 MHz

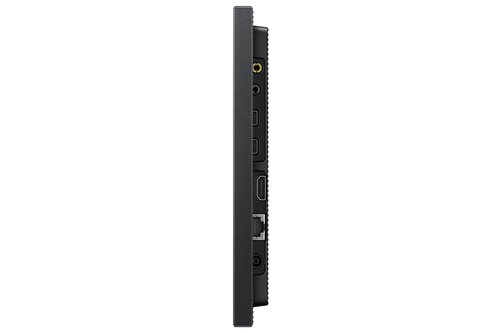

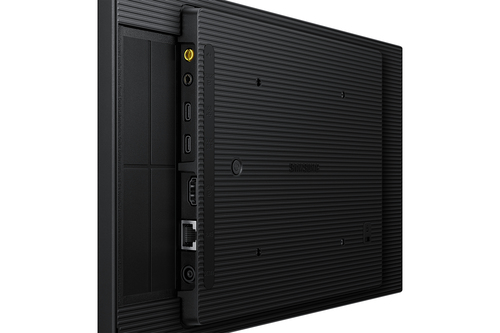

Ports & interfaces

HDMI ports quantity 1

HDMI version 1.4

DVI port No

USB port Yes

USB ports quantity 2

Ethernet LAN (RJ-45) ports 1

RS-232 interface Yes

Audio

Built-in speaker(s) No

Design

Product design Digital signage flat panel

Placement supported Indoor

Product colour Black

VESA mounting Yes

Panel mounting interface 100 x 100 mm

Performance

Purpose Retail

TV tuner integrated No

Operating hours (hours/days) 16/7

HDCP Yes

HDCP version 2.2

Power

Power consumption (standby) 0.5 W

AC input voltage 100 - 240 V

AC input frequency 50 - 60 Hz

Computer system

Internal storage capacity 8 GB

Operating system installed Tizen 7.0

Weight & dimensions

Display width 322 mm

Display depth 22 mm

Display height 193.5 mm

Display weight 1.1 kg

Packaging data

Package width 520 mm

Package depth 238 mm

Package height 64 mm

Package weight 2 kg

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Operating relative humidity (H-H) 10 - 80%

Network

Ethernet LAN Yes

Wi-Fi Yes

Technical details

Compliance certificates Electromagnetic Compatibility (EMC)

Other features

Audio output 1

Bluetooth Yes

RS-232 input ports 1
