QNAP QXG-100G2SF-BCM network card
QXG-100G2SF-BCM - 4711103089583
QNAP QXG-100G2SF-BCM network card Internal Fiber 100000 Mbit/s
- Brand
- Qnap
- Product code
- QXG-100G2SF-BCM
- SKU
- U5X8NWKC76LCN
- EAN/GTIN
- 4711103089583
- PCIe 4.0: PCIe Gen 4 x16 provides up to 256 Gbps transfer speeds
- SR-IOV: Improves the network performance of virtual machines
- RDMA (RoCE & iSER): Reduces latency, lowers CPU utilization, and boosts overall throughput
Product Info

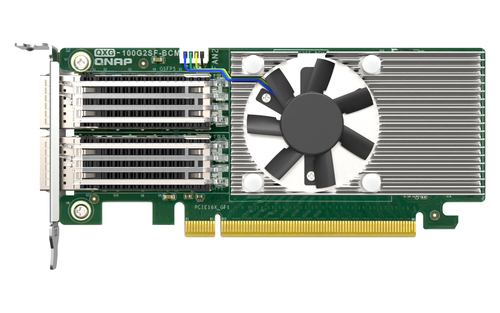

Dual port per 100GbE Network adapter, 2 x QSFP28, Broadcom 57508 controller
QNAP QXG-100G2SF-BCM. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 100000 Mbit/s. Product colour: Silver, Dark Green
QXG-100G2SF-BCM
Dual-port, 100 GbE network expansion card
The QXG-100G2SF-BCM 100 GbE network expansion card, supports PCIe 4.0 and provides up to 200Gbps total throughput to overcome performance bottlenecks. Supporting offload functionality including RDMA and SR-IOV, the QXG-100G2SF-BCM greatly boosts network efficiency and is ideal for I/O-intensive and latency-sensitive virtualization and data centers. The QXG-100G2SF-BCM is a perfect match for all-flash storage to realize the highest performance potential for ever-demanding IT challenges.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Fiber ports quantity | 2 |
| Fiber optic connector | QSFP28 |
| PCI version | 4.0 |
| PCI Card form factor | Full-height (low-profile) |
| Network | |
| Maximum data transfer rate | 100000 Mbit/s |
| Networking standards | IEEE 802.3bs, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3ba, IEEE 802.3ap, IEEE 802.3ad, IEEE 802.1Q, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg |
| Design | |
| Component for | Server/workstation |
| Product colour | Silver, Dark Green |
| Internal | Yes |
| Weight & dimensions | |
| Depth | 157.3 mm |
