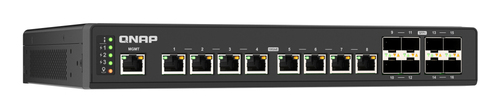

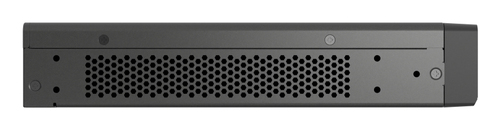

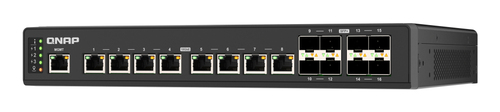

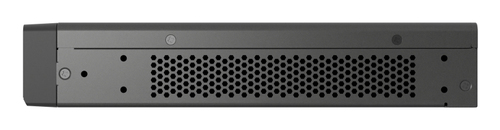

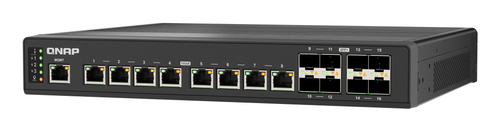

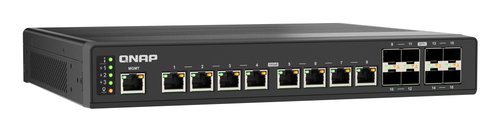

QNAP QSW-IM3216-8S8T network switch
QSW-IM3216-8S8T?UK - 4711103085714
QNAP QSW-IM3216-8S8T network switch Managed L2 10G Ethernet (100/1000/10000) Black
- Brand
- Qnap
- Product code
- QSW-IM3216-8S8T?UK
- SKU
- HI9RZ6ACM37B3
- EAN/GTIN
- 4711103085714
- IP20 industrial-grade protection: Rugged, shock-resistant, IP20 rated, and with a fanless design. Capable of operating in temperatures from -30°C to 65°C (-22°F to 149°F)

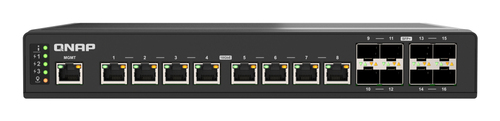

- 16 high-speed 10GbE ports: Includes 8 x 10GbE SFP+ fiber ports (10G/1G) and 8 x 10GbE RJ45 network ports (10G/5G/2.5G/1G/100M). Supports a range of network devices and link aggregation for up to 20Gbps network bandwidth

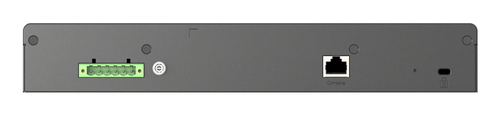

- Redundant power design: Has two wide voltage DC 9-54V power inputs and a circuit breaker, ensuring continuous operation. A DC power adapter is also included
- More secure network management: Supports ACL, Qfinder Pro login, and SNMP management to ensure network and device connection security with centralized network device management and maintenance
- Simplified AV-over-IP configuration: Manages IGMP Snooping and IGMP Snooping-controlled traffic forwarding for low-latency network connections with multiple AV endpoint devices
- Smart graphical Web management: QSS (QNAP Switch System) simplifies network management with an overview dashboard, port management, and setup guides
Product Info
320Gbps, 8x 10GbE BASE-T (RJ45), 8x 10GbE SFP+, 1x 1GbE RJ45, 43.5 x 285 x 231.5 mm
QNAP QSW-IM3216-8S8T. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.11w, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae,.... Power connector: Terminal block (6-pin). Rack mounting
Designed for harsh industrial environments, the QSW-IM3216-8S8T high-speed switch features a fanless IP20-rated enclosure with a redundant DC 9-54V power supply. It provides sixteen 10GbE ports, practical L2 management functions, and can be mounted in a rack, placed on a desktop, or wall mounted. This range of installation options makes it an economical and efficient high-speed networking solution for factory automation, AI smart manufacturing, smart cities, automotive industry, traffic monitoring, and other applications. The QSW-IM3216-8S8T was designed and manufactured in Taiwan, offering high-quality and reliable networking solutions.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| 10G Ethernet (copper) ports quantity | 8 |
| SFP+ module slots quantity | 8 |
| Console port | RJ-45 |
| Power connector | Terminal block (6-pin) |
| Network | |
| Networking standards | IEEE 802.11w, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Data transmission | |
| Switching capacity | 320 Gbit/s |
| Throughput | 160 Gbit/s |
| MAC address table | 16000 entries |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Security | |
| DHCP features | DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Yes |
| Performance | |
| Firmware upgradeable | Yes |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 48.632 W |
| Other features | |
| Warranty period | 2 year(s) |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 285 mm |
| Depth | 231.5 mm |
| Height | 43.5 mm |
| Weight | 4.26 kg |
| Packaging content | |
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Packaging data | |
| Package type | Box |
| Package width | 317 mm |
| Package depth | 104 mm |
| Package height | 452 mm |
| Package weight | 5.72 kg |
| Certificates | |
| Certification | CE, FCC, VCCI, BSMI |
| Logistics data | |
| Country of origin | Taiwan |
| Products per master (outer) case | 5 pc(s) |
