Middle Atlantic Products SRSR 23", 12U
SH-5A-26 - 656747047329
Middle Atlantic Products SRSR 23", 12U Wall mounted rack Black
- Brand
- MIDDLE ATLANTIC
- Product code
- SH-5A-26
- SKU
- 7R0WYYDRJ5S23
- EAN/GTIN
- 656747047329
- Removable rack frame allows in-shop integration and on-site installation of equipment
- Locks in the extended position for simplified equipment integration
- Rotating equipment bay locks in place at 0º, 60º and 90º for easy installation and servicing
- Self-centering mounting base makes it simple to align system within cabinet opening
- Rear cable support works in conjunction with rear rackrail for effective cable management
- Standard front and rear 10-32 threaded rackrail with marked spaces
Product Info

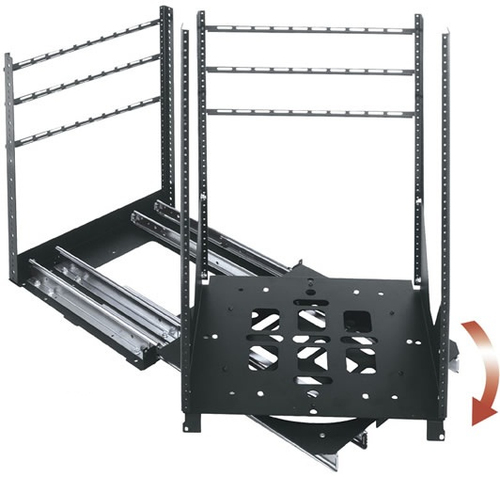

SRSR Series 23" Rotating Sliding Rail System, 4 slide, 12 useable spaces
Middle Atlantic Products SRSR 23", 12U. Type: Wall mounted rack, Rack capacity: 12U, Maximum weight capacity: 90.72 kg, Rack rails, Product colour: Black
SRSR Series 19" Rotating Sliding Rail System. Specify an SRSR for rear access to equipment connections in millwork and cabinets. Available with a 19" or 23" useable depth, the SRSR system extends and rotates 90(0) in either direction, making it ideal for smaller millwork and in-wall installations.
- Pulls out and rotates for equipment servicing
- NEW Removable rack frame allows in-shop integration and on-site installation of equipment, saving time in the field
- Simplifies equipment installation in cabinet
- Shortens installation & service time
- Available in 19" and 23" useable depths
- Available from 12 space (21") to 24 space (42")
- Integral cable management system provided
- Locks in place at 0, 60, and 90 positions for easy installation and servicing
- Ball bearing slides allow smooth rollout
- Locks closed with included hardware
- Up to 300 pound weight capacity, depending on model
| Features | |
|---|---|
| Rack capacity | 12U |
| Type | Wall mounted rack |
| Maximum weight capacity | 90.72 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Open |
| Rack rails | Yes |
| Certification | Greenguard, LEED Contribution |
| Weight & dimensions | |
| Size (imperial) | 58.4 cm (23") |
| Width | 489 mm |
| Depth | 591 mm |
| Height | 608 mm |
| Inner depth | 54 cm |
| Inner height | 53.3 cm |
| Packaging data | |
| Package weight | 29.5 kg |
| Logistics data | |
| Harmonized System (HS) code | 85381000 |
