Middle Atlantic Products AX-SXR, 31" x 20", 42U
AX-SXR-42 - 656747056314
Middle Atlantic Products AX-SXR, 31" x 20", 42U Wall mounted rack Black
- Brand
- MIDDLE ATLANTIC
- Product code
- AX-SXR-42
- SKU
- Q7BYF0LD4PFNL
- EAN/GTIN
- 656747056314
- Unique interlocking corner joint for exceptional strength and easy assembly
- Service stand raises service tracks to bottom of AXS, allowing it to pull out
- Service tracks include built-in level to save time
- Removable rack frame can be integrated off-site to save time
- Includes cable management system for effective cable management
- Standard fixed front and rear 10-32 threaded rackrail with numbered spaces
- Service tracks and stands sold separately
Product Info

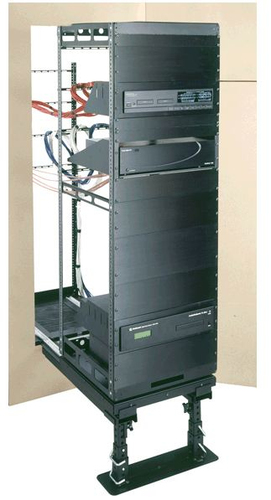

Rotating AXS System for Millwork and In-Wall, 31" Extension Length x 20" Frame Depth, 42 spaces
Middle Atlantic Products AX-SXR, 31" x 20", 42U. Type: Wall mounted rack, Rack capacity: 42U, Maximum weight capacity: 204.12 kg, Product colour: Black
Provides Enhanced Rear Access to Equipment and Cabling
- Slide Out rack frame rotates for equipment servicing
- Simplifies installation of larger electronics systems in cabinet
- Frame heights range from 15 sp. (26-1/4") to 43 sp. (75-1/4")
- 20" useable depth
- 450 lb. weight capacity with proper weight distribution
- Integral cable management system provided
- Brush Gasket fills unsightly gaps that may appear between the rack and custom millwork (requires a rough-in width of 19-5/8")
- Guide Kit includes the Brush Gasket and helps center the rack while protecting millwork (requires a rough-in width of 19-5/8").
- Locks closed with included hardware
| Features | |
|---|---|
| Rack capacity | 42U |
| Type | Wall mounted rack |
| Maximum weight capacity | 204.12 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Open |
| Certification | Greenguard, LEED Contribution, RoHS |
| Weight & dimensions | |
| Size (imperial) | 48.9 cm (19.2") |
| Width | 787.4 mm |
| Depth | 508 mm |
| Height | 1867 mm |
| Inner depth | 50.8 cm |
| Inner height | 186.7 cm |
| Packaging data | |
| Package weight | 51.1 kg |
| Logistics data | |
| Harmonized System (HS) code | 85381000 |
