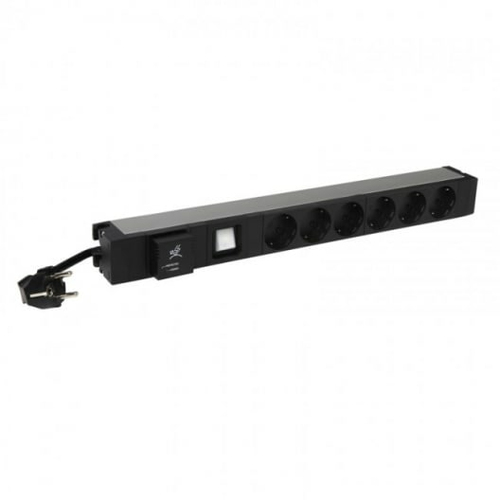

Middle Atlantic Products 646836-CP8 power distribution unit (PDU)
646836-CP8
Middle Atlantic Products 646836-CP8 power distribution unit (PDU) 6 AC outlet(s) 1U Black
- Brand
- MIDDLE ATLANTIC
- Product code
- 646836-CP8
- SKU
- I0YLRZUVVX9NJ
- 6 German standard outlets
- 3m power cord with 16 A 2P+E French/German plug
- German standard outlets are inclined at 55°
- Includes Surge Protection to protect against surge events while
- LED surge indicator lights showing status of surge protection module
- Equipped with hot swappable surge protection module when replacement is needed
- 230 V - 50/60 Hz
- 1U aluminium chassis
- Included mounting clips allow for tool-less Forward compatible mounting on center square hole found on Forward Rackrail
- Can also be installed vertically by reversing the brackets
Product Info
19", PDU LCS³, 1U, 6 Outlets X 2P+E, German Standard, With SPD
Middle Atlantic Products 646836-CP8. PDU types: Basic, Rack capacity: 1U, Type: Single-phase. AC outlets quantity: 6 AC outlet(s), AC outlet types: Type F, Power plug: Type F. Cable length: 3 m. Nominal input voltage: 200-240 V, Maximum current: 16 A, AC input frequency: 50-60 Hz. Width: 483 mm, Depth: 50 mm, Height: 43 mm
Legrand LCS³ PDUs are innovative power infrastructure solutions for data centers, edge server rooms and computer rooms. Made from anodized aluminum gives them a high quality, lightweight and rigid chassis. The 19’’ PDUs designed for installation in server cabinets and patch panels also incorporate the latest innovations for facilitating integration and maintenance, with clever mounting and operating features.
| Design | |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 1U |
| Mounting | Horizontal/Vertical |
| Housing material | Aluminium |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 6 AC outlet(s) |
| Power plug | Type F |
| AC outlet types | Type F |
| Features | |
| Cable length | 3 m |
| Power | |
| Nominal input voltage | 200-240 V |
| AC input frequency | 50-60 Hz |
| Maximum current | 16 A |
| Maximum power | 3700 W |
| Weight & dimensions | |
| Width | 483 mm |
| Depth | 50 mm |
| Height | 43 mm |
| Weight | 1 kg |
| Logistics data | |
| Country of origin | France |
