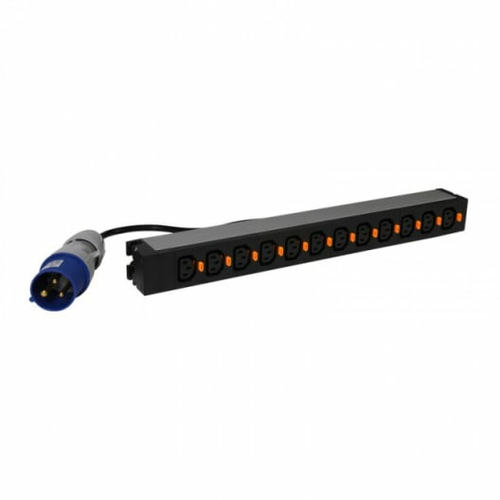

Middle Atlantic Products 646815 power distribution unit (PDU)
646815 - 3414970765383
Middle Atlantic Products 646815 power distribution unit (PDU) 12 AC outlet(s) 1U Black
- Brand
- MIDDLE ATLANTIC
- Product code
- 646815
- SKU
- 88JRN2CH06558
- EAN/GTIN
- 3414970765383
- 12 C13 IEC outlets with cord locking system
- 3m power cord with 16 A IEC 60309 2P+E
- 230 V - 50/60 Hz
- 1U aluminium chassis
- Included mounting clips allow for tool-less Forward compatible mounting on center square hole found on Forward Rackrail
- Can also be installed vertically by reversing the brackets
Product Info
12 C13 outlets, 3.7kW, 200-240V, 16 A, 5 x 4.3 x 48.3 cm, 1 kg
Middle Atlantic Products 646815. PDU types: Basic, Rack capacity: 1U, Type: Single-phase. AC outlets quantity: 12 AC outlet(s), AC outlet types: C13 coupler, Power plug: IEC 60309. Cable length: 3 m. Nominal input voltage: 200-240 V, Maximum current: 16 A, AC input frequency: 50-60 Hz. Width: 483 mm, Depth: 50 mm, Height: 43 mm
Legrand LCS³ PDUs are innovative power infrastructure solutions for data centers, edge server rooms and computer rooms. Made from anodized aluminum gives them a high quality, lightweight and rigid chassis. The 19’’ PDUs designed for installation in server cabinets and patch panels also incorporate the latest innovations for facilitating integration and maintenance, with clever mounting and operating features. This PDU uses the unique Cord Locking System, which prevents accidental disconnection due to human error or vibration and guarantees absolute safety.
| Design | |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 1U |
| Mounting | Horizontal/Vertical |
| Housing material | Aluminium |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 12 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler |
| Features | |
| Cable length | 3 m |
| Power | |
| Nominal input voltage | 200-240 V |
| AC input frequency | 50-60 Hz |
| Maximum current | 16 A |
| Maximum power | 3700 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Storage temperature (T-T) | -5 - 70 °C |
| Weight & dimensions | |
| Width | 483 mm |
| Depth | 50 mm |
| Height | 43 mm |
| Weight | 1 kg |
