Middle Atlantic Products 646806 power distribution unit (PDU)
646806 - 3414970765222

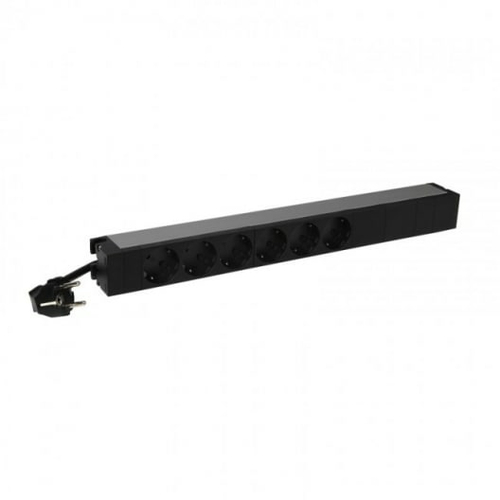

Middle Atlantic Products 646806 power distribution unit (PDU) 6 AC outlet(s) 1U Black
- Brand
- MIDDLE ATLANTIC
- Product code
- 646806
- SKU
- YFXXLWHSBRM81
- EAN/GTIN
- 3414970765222
- (6) German standard outlets

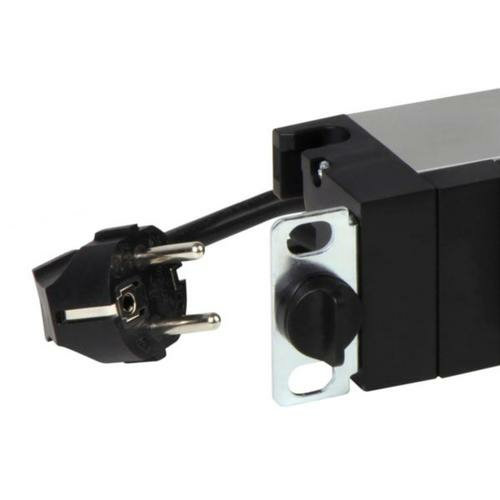

- 3m power cord with 16 A 2P+E French/German plug
- German standard outlets are inclined at 55°
- 230 V - 50/60 Hz
- 1U aluminium chassis

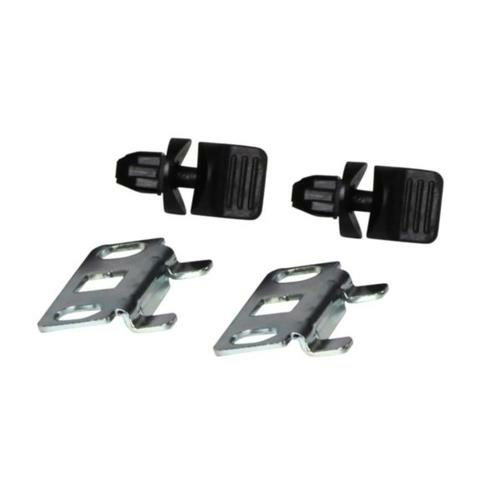

- Included mounting clips allow for tool-less Forward compatible mounting on center square hole found on Forward Rackrail
- Can also be installed vertically by reversing the brackets
Product Info
6 German outlets, 3.7kW, 200-240V, 16 A, 5 x 4.3 x 48.3 cm, 1 kg
Middle Atlantic Products 646806. PDU types: Basic, Rack capacity: 1U, Type: Single-phase. AC outlets quantity: 6 AC outlet(s), AC outlet types: Type F, Power plug: Type F. Cable length: 3 m, Cable type: HO5VVF, Compatible products: PDU Zero-U. Nominal input voltage: 200-240 V, Maximum current: 16 A, AC input frequency: 50-60 Hz. Width: 482.6 mm, Depth: 50 mm, Height: 44.5 mm
Legrand LCS³ PDUs are innovative power infrastructure solutions for data centers, edge server rooms and computer rooms. Made from anodized aluminum gives them a high quality, lightweight and rigid chassis. The 19’’ PDUs designed for installation in server cabinets and patch panels also incorporate the latest innovations for facilitating integration and maintenance, with clever mounting and operating features.
| Design | |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 1U |
| Mounting | Horizontal/Vertical |
| Housing material | Aluminium |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 6 AC outlet(s) |
| Power plug | Type F |
| AC outlet types | Type F |
| Input connection type | Schuko/ UTE |
| Features | |
| Cable length | 3 m |
| Cable type | HO5VVF |
| Compatible products | PDU Zero-U |
| Power | |
| Nominal input voltage | 200-240 V |
| AC input frequency | 50-60 Hz |
| Maximum current | 16 A |
| Maximum power | 3700 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Storage temperature (T-T) | -5 - 70 °C |
| Weight & dimensions | |
| Width | 482.6 mm |
| Depth | 50 mm |
| Height | 44.5 mm |
| Weight | 1 kg |
| Packaging content | |
| Packaging content | 19 '' square reversible quick fastening; 2 legs Minkels; 2 screws; |
