Middle Atlantic Products 6 468 36 power distribution unit (PDU)
646836 - 3414970765581

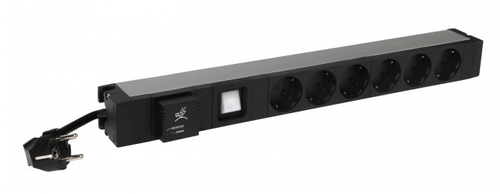

Middle Atlantic Products 6 468 36 power distribution unit (PDU) 6 AC outlet(s) 1U Black
- Brand
- MIDDLE ATLANTIC
- Product code
- 646836
- SKU
- KJEZVKTM7UQ0E
- EAN/GTIN
- 3414970765581
- Single-phase 1U Black
- 6 AC outlet(s) Type F
- 3700 W
Product Info
6xAC, 1U, 230V, 16A, 3.7 kW
Middle Atlantic Products 6 468 36. Rack capacity: 1U, Type: Single-phase, Housing material: Aluminium. AC outlets quantity: 6 AC outlet(s), AC outlet types: Type F, Power plug: Type F. Cable length: 3 m. Nominal input voltage: 230 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz
19” Basic PDU with surge protection
- Protect against mains overvoltages while keeping outlets energised
- Equipped with hotswappable surge protection module Cat.No 6 468 97: even when the module is being replaced, the PDU and its outlets are still powered on
- With switch
- 3 m power supply cord with 16 A 2P+E French/German plug
- 6 outlets - German standard
Legrand cabling system LCS³ energy distribution - 1U Basic Power Distribution Units (PDU)
- To provide ~ electric power for IT equipment in 19'' enclosures
- 230 V - 50/60 Hz power supply
- 1U aluminium profile
- End cap with metallic brackets and cable holder shape
- Quick fixing (no screws) on 19'' fixing centers. Can also be installed vertically by reverting the brackets (no screws)
| Design | |
|---|---|
| Type | Single-phase |
| Rack capacity | 1U |
| Housing material | Aluminium |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 6 AC outlet(s) |
| Power plug | Type F |
| AC outlet types | Type F |
| Features | |
| Cable length | 3 m |
| Power | |
| Nominal input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Maximum power | 3700 W |
