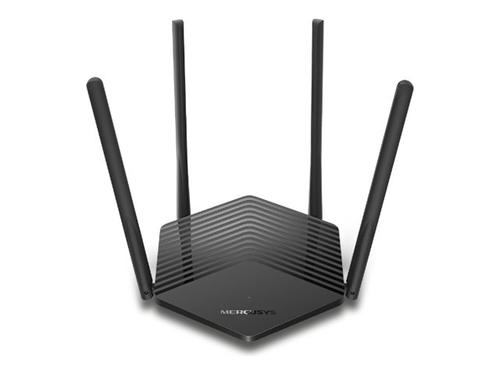

Mercusys MR60X V2 - wireless router - Wi-Fi 6 - desktop
MR60X - 6957939001230
Mercusys MR60X V2 - wireless router - Wi-Fi 6 - desktop
- Brand
- TP-Link
- Product code
- MR60X
- SKU
- 6YKUTCBQEH1I0
- EAN/GTIN
- 6957939001230
- Wireless router 2-port switch
- 1GbE
- Wi-Fi 6
- Dual Band
- Weight: 0.62 KG
- Upgrade your network with Wi-Fi 6: MR60X comes equipped with the Wi-Fi 6 standard, delivering more simultaneous connections, extend WiFi range, and maintain reliably fast data transmissions
- Faster 1.5 Gbps speeds: optimal Wi-Fi 6 speeds reaching 1.5 Gbps (1201 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)
- Improved network capacity: OFDMA and MU-MIMO allow simultaneous data transmission to and from several devices, improving overall network efficiency
- Broader, stronger coverage: 4x multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong Wi-Fi signals in every corner
- Gigabit wired connections: make full use of your internet access and transfer data at dizzying speeds for peak performance
- Overall security protection: the WPA3 provides improved Wi-Fi security
- Less Wi-Fi interference: minimizes the interference from neighboring signals to improve transmission efficiency with BSS color
- Smart Connect: intelligently chooses the good available band for each device
Product Info
The Mercusys MR60X V2 is designed to enhance your networking experience with a performance of 1.5 Gbps. Supporting dual-band connectivity across both 2.4 GHz and 5 GHz frequencies, it ensures stable and efficient connections for various devices. Equipped with features like MU-MIMO technology and beamforming, this wireless router offers improved coverage, allowing multiple users to connect seamlessly without compromising speed.
With security measures such as WPA3 encryption and a Stateful Packet Inspection Firewall, the MR60X V2 prioritizes your online safety while providing easy network management through its parental controls and guest network features. Designed for versatility, it comes with both wired and wireless options, making it suitable for a range of environments from home to office setups.
Description
Upgrade your network with Wi-Fi 6 The Wi-Fi 6 standard implements advanced technology designed to deliver more simultaneous stable connections, extend Wi-Fi range, and maintain reliably fast data transmissions, satisfying the demand for a high-performance wireless experience. Level up your speeds 40% faster By combining 1024-QAM and a long OFDM symbol, MR60X delivers gigabit fast speeds 1500 Mbps for all your Wi-Fi devices - 1201 Mbps on 5 GHz and 300 Mbps on 2. 4 GHz. Game online, watch 4K videos, and crank up everything to high settings without lag. Connect 4x more devices at once Wi-Fi 6 also improves network capacity to better address the increased demand on home networks. With MU-MIMO and OFDMA, MR60X transmits data to and from multiple devices at the same time, reaching 4x more capacity, greatly increasing your devices' transmission efficiency and the throughput of your whole network under the same conditions. Broader, stronger coverage Four powerful high-gain antennas armed with advanced wireless technology provide strong signals throughout your home. Beamforming detects your connected devices and concentrates wireless signal strength towards them, making your connections more stable. Overall security protection The security standard, WPA3, provides improved comprehensive Wi-Fi protection to defend your devices and private information against brute-force attacks. Less Wi-Fi interference BSS Color marks the data frames from different APs which helps minimize the signal interference from your neighbors to improve transmission efficiency. Eco-friendly power saving Target Wake Time reduces power consumption for your mobile and IoT devices during data transmissions to extend battery life. Smart Connect combines two bands in one Equipped with next-gen Wi-Fi 6, both 5 GHz and 2. 4 GHz are upgraded to the next generation. Smart Connect combines the 2. 4 GHz and 5 GHz bands into a single Wi-Fi SSID and helps your devices intelligently choose the good available band that has the stronger signal and faster speed. This keeps your devices always running optimally when you walk around your home.| General | |
|---|---|
| Enclosure Type | Desktop |
| Data Transfer Rate | 1.5 Gbps |
| Status Indicators | Status |
| Connectivity Technology | Wireless, wired |
| Remote Management Protocol | DHCP |
| Routing Protocol | IGMP, static IP routing |
| Device Type | Wireless router - 2-port switch (integrated) |
| Frequency Band | 2.4 GHz / 5 GHz |
| Wi-Fi Rating | AX1500 |
| Performance | Maximum data rate (2.4 GHz): 300 MbpsMaximum data rate (5 GHz): 1201 Mbps |
| Network / Transport Protocol | PPTP, L2TP, PPPoE, DHCP, IPv4, IPv6 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, UPnP, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Encryption Algorithm | WPA, WPA3, WPA3-Personal, WPA2-Personal |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
| Features | IGMP snooping, parental control, WMM support, QoS, WPS, DHCP server, port forwarding, reset button, port triggering, SPIF, IP-MAC binding, DHCP client, IGMP proxy, MU-MIMO technology, beamforming technology, Smart Connect, DMZ support, VLAN Tagging, IPTV support, BSS Coloring, Guest Network, TWT, wireless radio enable/disable |
| Expansion / Connectivity | |
| Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Power | |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Height | 4.5 cm |
| Depth | 15.72 cm |
| Width | 17.56 cm |
| Aerial | |
| Antenna Qty | 4 |
| Directivity | Omni-directional |
| Gain Level | 5 dBi |
| Aerial | External integrated |
| Line Properties | |
| Line Coding Format | 1024 QAM, OFDMA |
