Lenovo X9 Charging GaN Dock

40BD0065UK - 195892119890

Lenovo X9 Charging GaN Dock Wired USB 3.2 Gen 2 (3.1 Gen 2) Type-C Grey

Brand: Lenovo
Product code: 40BD0065UK
SKU: XTMDPR7ID6WKM
EAN/GTIN: 195892119890

90% PCC material

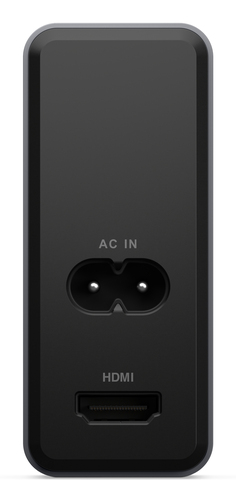

1 * HDMI 2.1 (4K @ 60hz)

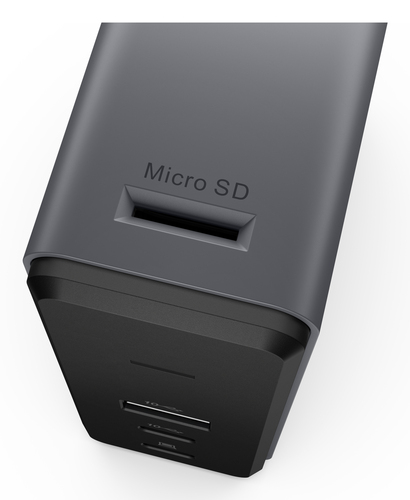

1 * TF card reader
65W GaN module integrated
1 * USB-A (4.5W, 10gbs)
1 * USB-C (7.5W, 10gbs)
1 * USB-C upstream charging to NB

€110.83 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

60W, 100~240V & 1.6A, 90% PCC, 1 x HDMI 2.1, 1 x USB-A 10 Gbps 1 x USB-C 10 Gbps 1 x USB-C PD 3.0 Upstream to NB(Max.60W)

Lenovo X9 Charging GaN Dock. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 60 W. Product colour: Grey, Compatible memory cards: MicroSD (TransFlash), Maximum digital resolution: 3840 x 2160 pixels. Power source type: AC, AC input voltage: 100 - 240 V, Input current: 1.6 A. Windows operating systems supported: Windows 10, Windows 11. Width: 80 mm, Depth: 80 mm, Height: 33.5 mm

The portable dock with integrated GaN power module, small form factor , one-stop docking and power solution on travel and all scenarios.

Specifications

Ports & interfaces

Connectivity technology Wired

Host interface USB 3.2 Gen 2 (3.1 Gen 2) Type-C

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2

USB Power Delivery (USB PD) Yes

USB Power Delivery revision 3.0

USB Power Delivery up to 60 W

HDMI ports quantity 1

HDMI version 2.1

Microphone in No

Network

Ethernet LAN No

Performance

Card reader integrated Yes

Compatible memory cards MicroSD (TransFlash)

Maximum digital resolution 3840 x 2160 pixels

Number of displays supported 1

Maximum refresh rate 60 Hz

Product colour Grey

Reset button No

Charging function Yes

Brand compatibility Lenovo

Certification FCC/ICES CE CB RCM BSMI VCCI/PSE UKCA TISI TUV Mark PSB NOM

Power

Power source type AC

AC input voltage 100 - 240 V

Input current 1.6 A

Power cable length 1.5 m

USB cable length 0.5 m

Software

Windows operating systems supported Windows 10, Windows 11

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Operating relative humidity (H-H) 8 - 90%

Weight & dimensions

Width 80 mm

Depth 80 mm

Height 33.5 mm

Weight 281 g

Packaging data

Quantity per pack 1 pc(s)

Package width 190 mm

Package depth 183 mm

Package height 55 mm

Package weight 574 g

Packaging content

Travel case Yes

Cables included AC, USB Type-C to USB Type-C

Quick start guide Yes
