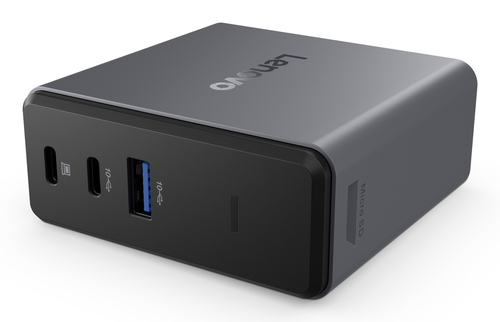

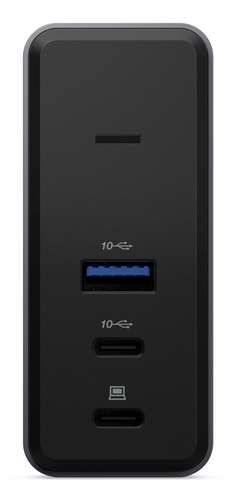

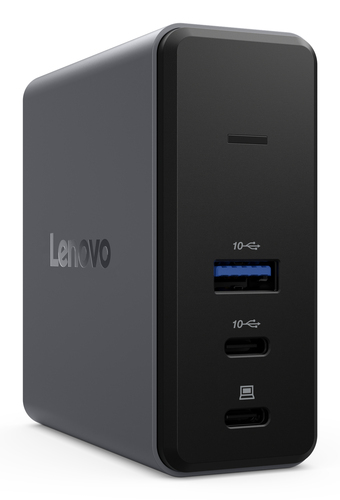

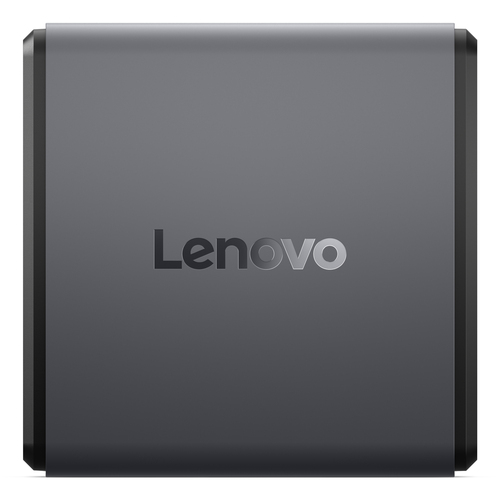

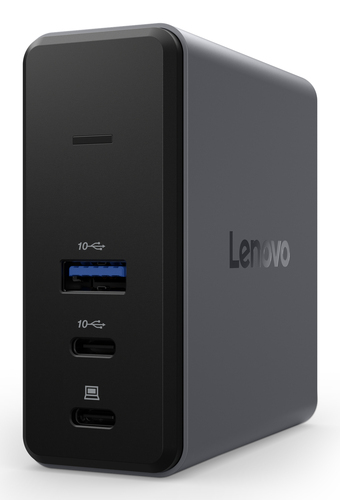

Lenovo X9 Charging GaN Dock
Lenovo X9 Charging GaN Dock Wired USB 3.2 Gen 2 (3.1 Gen 2) Type-C Grey
- Brand
- Lenovo
- Product code
- 40BD0065UK
- SKU
- XTMDPR7ID6WKM
- 90% PCC material

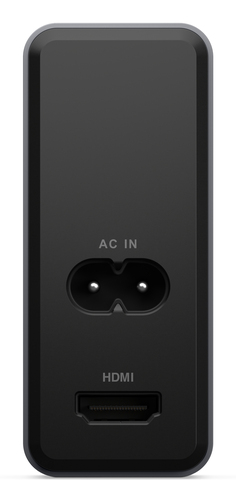

- 1 * HDMI 2.1 (4K @ 60hz)

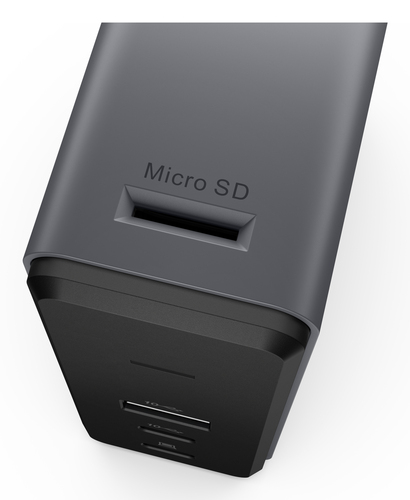

- 1 * TF card reader
- 65W GaN module integrated
- 1 * USB-A (4.5W, 10gbs)
- 1 * USB-C (7.5W, 10gbs)
- 1 * USB-C upstream charging to NB
€104.69
(Inc. VAT)
(Delivery 2-4 working days)
Product Info
Lenovo X9 Charging GaN Dock. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 60 W. Product colour: Grey, Compatible memory cards: MicroSD (TransFlash), Maximum digital resolution: 3840 x 2160 pixels. Power source type: AC, AC input voltage: 100 - 240 V, Input current: 1.6 A. Windows operating systems supported: Windows 10, Windows 11. Width: 80 mm, Depth: 80 mm, Height: 33.5 mm
The portable dock with integrated GaN power module, small form factor , one-stop docking and power solution on travel and all scenarios.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 60 W |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Microphone in | No |
| Network | |
| Ethernet LAN | No |
| Performance | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 1 |
| Maximum refresh rate | 60 Hz |
| Product colour | Grey |
| Reset button | No |
| Charging function | Yes |
| Brand compatibility | Lenovo |
| Certification | FCC/ICES CE CB RCM BSMI VCCI/PSE UKCA TISI TUV Mark PSB NOM |
| Power | |
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| Input current | 1.6 A |
| Power cable length | 1.5 m |
| USB cable length | 0.5 m |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Weight & dimensions | |
| Width | 80 mm |
| Depth | 80 mm |
| Height | 33.5 mm |
| Weight | 281 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 190 mm |
| Package depth | 183 mm |
| Package height | 55 mm |
| Package weight | 574 g |
| Packaging content | |
| Travel case | Yes |
| Cables included | AC, USB Type-C to USB Type-C |
| Quick start guide | Yes |
