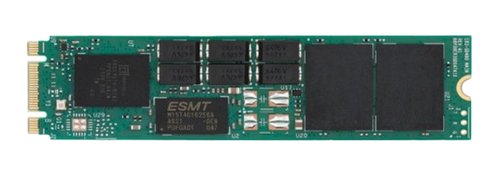

Lenovo 4XB7A90049 internal solid state drive
Lenovo 4XB7A90049 internal solid state drive 480 GB M.2 Serial ATA III 3D TLC NAND
- Brand
- Lenovo
- Product code
- 4XB7A90049
- SKU
- 7Y3ZFKRLCWOQR
- EAN/GTIN
- 889488704965
- 480 GB M.2 Serial ATA III
- Read speed: 520 MB/s 90000 IOPS
- Write speed: 520 MB/s 15000 IOPS
- 3D TLC NAND
- Hardware encryption
- S.M.A.R.T. support TRIM support
- Component for: Server/workstation
€1049.98
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
The ThinkSystem ER3 Read Intensive SATA 6Gb SSDs, in capacities up to 960GB, are 6Gb SATA drives, available in M.2 form factor. They are suitable for general data storage functions and operating system boot purposes on ThinkSystem servers.
Lenovo 4XB7A90049. SSD capacity: 480 GB, SSD form factor: M.2, Read speed: 520 MB/s, Write speed: 520 MB/s, Data transfer rate: 6 Gbit/s, Component for: Server/workstation
The ThinkSystem ER3 Read Intensive SATA 6Gb SSDs, in capacities up to 960GB, are 6Gb SATA drives, available in M.2 form factor. They are suitable for general data storage functions and operating system boot purposes on ThinkSystem servers.
This product guide provides essential presales information to understand the ER3 SSDs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ER3 SSDs and consider their use in IT solutions.
| Features | |
|---|---|
| SSD capacity | 480 GB |
| SSD form factor | M.2 |
| Interface | Serial ATA III |
| NVMe | No |
| Memory type | 3D TLC NAND |
| Component for | Server/workstation |
| Hardware encryption | Yes |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Data transfer rate | 6 Gbit/s |
| Read speed | 520 MB/s |
| Write speed | 520 MB/s |
| Random read (4KB) | 90000 IOPS |
| Random write (4KB) | 15000 IOPS |
| Random latency - read (up to) | 120 µs |
| Random latency - write (up to) | 70 µs |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| H/W PLP function | Yes |
| Native Command Queuing (NCQ) | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Drive writes per day (DWPD) | 1 |
| Certification | CE UL BSMI RoHS |
| Power | |
| Power consumption (read) | 3.5 W |
| Power consumption (write) | 3.8 W |
| Weight & dimensions | |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 3.65 mm |
| Weight | 10 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Non-operating shock | 1500 G |
| Other features | |
| Compliance certificates | RoHS |
