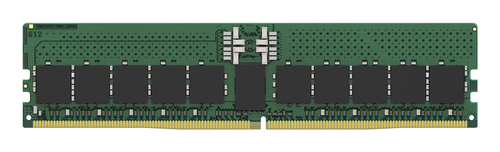

Kingston Technology KSM56R46BD8-32MH memory module
KSM56R46BD8-32MH - 740617360325
Kingston Technology 32GB 5600MT/s DDR5 ECC Reg CL46 DIMM 2Rx8 Micron H
- Brand
- Kingston
- Product code
- KSM56R46BD8-32MH
- SKU
- R1SU30NYSL590
- EAN/GTIN
- 740617360325
- Server 32 GB DDR5 5600 MT/s
- 288-pin DIMM 1 x 32 GB
- CAS latency: 46
- 1.1 V
- ECC
€1145.33
(Inc. VAT)
(Delivery 2-4 working days)
Product Info
32GB 5600MT/s DDR5 ECC Reg CL46 DIMM 2Rx8 Micron H
Kingston Technology 32GB 5600MT/s DDR5 ECC Reg CL46 DIMM 2Rx8 Micron H. Component for: Server, Internal memory: 32 GB, Memory layout (modules x size): 1 x 32 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 46, ECC
Kingston's KSM56R46BD8-32MH is a 4G x 80-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components.
The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
Specifications
Features
On-Die ECC
Yes
CAS latency
46
Internal memory
32 GB
Memory layout (modules x size)
1 x 32 GB
Internal memory type
DDR5
Memory data transfer rate
5600 MT/s
Component for
Server
Memory form factor
288-pin DIMM
ECC
Yes
Buffered memory type
Registered (buffered)
Memory ranking
2
Memory voltage
1.1 V
Module configuration
4096M x 80
Row cycle time
48 ns
Refresh row cycle time
295 ns
Row active time
32 ns
Row Precharge Time (TRP)
16
SPD profile
Yes
JEDEC standard
Yes
Operational conditions
Operating temperature (T-T)
0 - 95 °C
Storage temperature (T-T)
-55 - 100 °C
Sustainability
Compliance certificates
RoHS
Weight & dimensions
Width
133.3 mm
Height
31.2 mm
