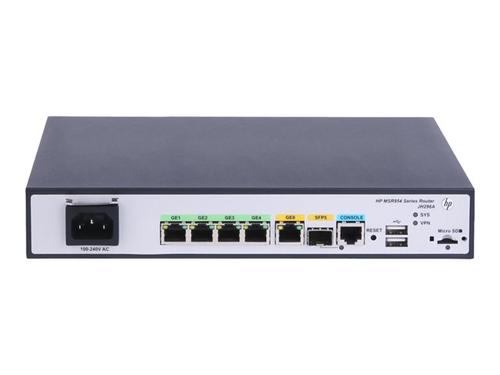

HPE MSR954 - router - rack-mountable
JH296A#ACC - 889296338277
HPE MSR954 - router - rack-mountable
- Brand
- Hewlett Packard Enterprise
- Product code
- JH296A#ACC
- SKU
- 3WFJSQUNCDDRD
- EAN/GTIN
- 889296338277
- Router 4-port switch
- 1GbE
- rack-mountable
- Weight: 1.72 KG
- Reduces complexity and simplifies your network
- Enhances time to service and branch performance
- Boosts agility and resiliency
€790.01
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
The HPE MSR954 router delivers high-performance, small-branch routing in a single form factor. Featuring integrated routing, switching, wireless, security, and SIP, this router can boost your service delivery while simplifying the management of your corporate WAN. The MSR954 router provides for flexible deployment models with zero-touch provisioning and LTE connectivity. It also brings you enhanced performance to provide investment protection.
Description
Reduces complexity and simplifies your network This HPE router provides a Converged Infrastructure with integrated routing, switching, security, voice, and cellular WAN delivering high-performance small-branch routing. It reduces management complexity with zero-touch deployment (ZTP) and ADVPN and delivers increased flexibility across all environments across multiple routers. Enhances time to service and branch performance This router offers high-performance routing with forwarding. It simplifies your network with OpenFlow and zero-touch deployment; supports branch services with a comprehensive feature set, including IPv4 and IPv6 routing, MPLS, QoS, NAT, and VPN services. The router also deploys rich features with dual Gigabit WAN ports that support fiber and copper connections. Boosts agility and resiliency The HPE MSR954 router delivers branch service and business continuity with dual Gigabit WAN, 4G / LTE and 3G WAN, and built-in WLAN. With advanced hardware architecture, it provides reliable, high-performance functionality and gives you an open approach to your network infrastructure.| General | |
|---|---|
| Flash Memory | 256 MB |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Connectivity Technology | Wired |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Enclosure Type | Rack-mountable - 1U |
| Encryption Algorithm | DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES |
| RAM | 1 GB DDR3 SDRAM |
| Device Type | Router - 4-port switch (integrated) |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, TFTP, CLI |
| Network / Transport Protocol | TCP/IP, UDP/IP, NTP, IPSec, ARP |
| Routing Protocol | OSPF, EGP, BGP-4, IS-IS, RIP-1, RIP-2, IGMPv2, IGMP, IGMPv3, OSPFv3, Bidirectional PIM, MSDP, static IPv4 routing, static IPv6 routing, ECMP, BGP-4+, BGP+ |
| Processor | 1 x Marvell A370 800 MHz |
| Capacity | VPN tunnels: 100IPv4 routing table entries: 10000IPv6 routing table entries: 5000IPv4 forwarding table entries: 10000IPv6 forwarding table entries: 5000 |
| Performance | Forwarding performance: up to 300 KppsEncryption throughput: up to 160 MbpsThroughput (64-byte packet size): up to 300 Kpps |
| Compliant Standards | IEEE 802.2, IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, ETSI, EN55022, ICES-003 Class B, FCC Part 68 / CS03 Issue 8, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, RoHS, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, FDA, FCC CFR47 Part 15 B, EN 60825-1, AS/NZS 60950, ANSI C63.4, EN 60825-2, CAN/CSA C22.2 No. 60950-1-03, EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005, EN 61000-4-11:2004, EMC 2004/108/EC, EN 300 386 V1.3.3, AS/NZS CISPR 22 Class B, CAN/CSA-C22.2 No. 60950-1, EN 55024:1998+A1:2001+A2:2003 |
| Features | NAT support, VLAN support, port mirroring, WRED, sFlow, STP support, RSTP support, MSTP support, tunnelling, ACL support, QoS, CAR, URPF, DHCP relay, MIB, port isolation, packet storm protection, CoS, Loopback, DVPN, MBGP, RED |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000 - SFP (mini-GBIC)WAN: 1 x Ethernet 1000 - RJ-45LAN: 4 x Ethernet 1000 - RJ-452 x USB 2.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Localisation | English / United Kingdom |
| Power | |
| Voltage Required | AC 120/230 V |
| Software / System Requirements | |
| OS Provided | Comware v7 |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 5 - 92% (non-condensing) |
| Dimensions & Weight | |
| Weight | 1 kg |
| Width | 26.6 cm |
| Depth | 16.1 cm |
| Height | 4.36 cm |
