DELL Pro QVS1260
N10P6 - 5397184978764

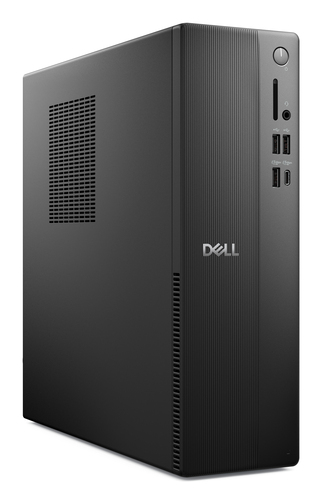

DELL Pro QVS1260 Intel Core Ultra 5 225 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Slim PC PC Black
- Brand
- Dell
- Product Family
- Pro
- Product code
- N10P6
- SKU
- EXI2WN6S296FQ
- EAN/GTIN
- 5397184978764
- Windows 11 Pro 64-bit
- Intel Core Ultra 5 225 (20MB Cache)
- 16GB DDR5-SDRAM (1 x 16) & 512GB SSD
Product Info
Intel Core Ultra 5 225 (20MB Cache), 16GB DDR5-SDRAM, 512GB SSD, Intel Graphics, LAN, WLAN, Bluetooth, Windows 11 Pro 64-bit
DELL Pro QVS1260. Processor family: Intel Core Ultra 5, Processor model: 225. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Wi-Fi. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 180 W. Chassis type: Slim PC. Product type: PC. Product colour: Black

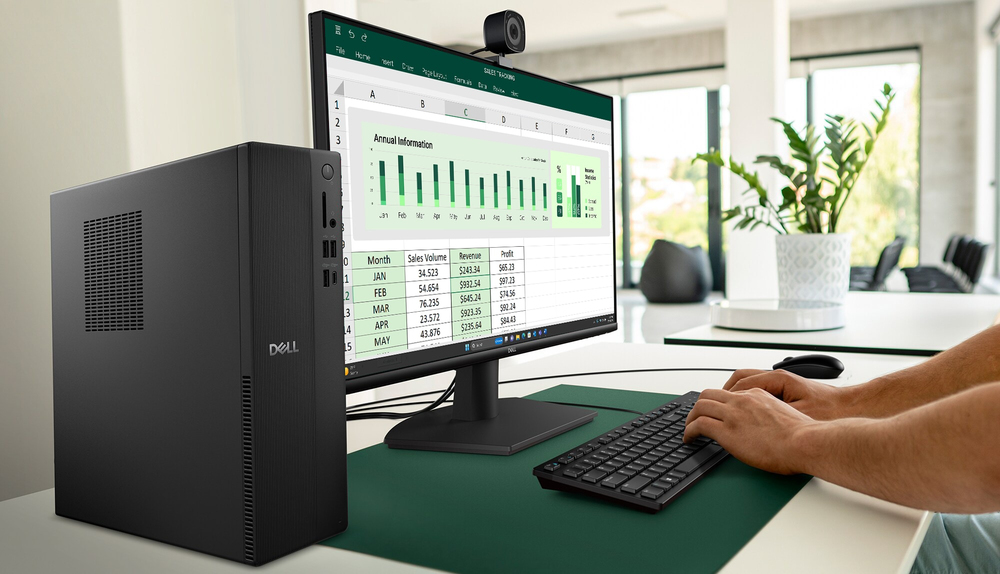

Compact design. Ready for your daily business demands.
Boost productivity with this space saving business-ready desktop, built to handle everyday workloads with reliable performance and essential security features.
Description
Performance for day to day demands Tackle everyday tasks with this space saving desktop offering reliable performance and essential security.
Effortless multitasking: DDR5 memory up to 4800 MT/s enables faster data transfer and improved responsiveness, helping you run demanding applications and multiple tasks smoothly.
Built-in security: Protect your data with Trusted Platform Module (TPM) 2.0, a security chip that offers hardware-based security, secure startup and safe handling of encryption keys.
Secure your desktop: When you need to step away from your desk, simply secure your desktop using the built-in lock slot or padlock loop.
Peace of mind: Invest in uninterrupted productivity and long-term confidence with an extended warranty of up to 5 years.
Supports multiple monitors: Connect up to four FHD monitors using DisplayPort™ 1.4 and Daisy Chaining. Or connect two 4K displays using HDMI 2.1 port and DisplayPort.1.4

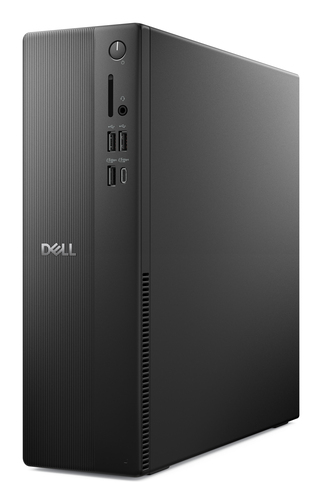

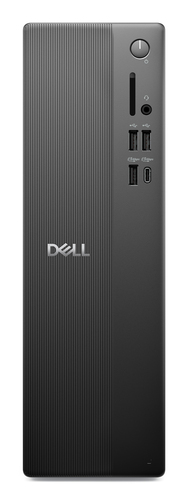

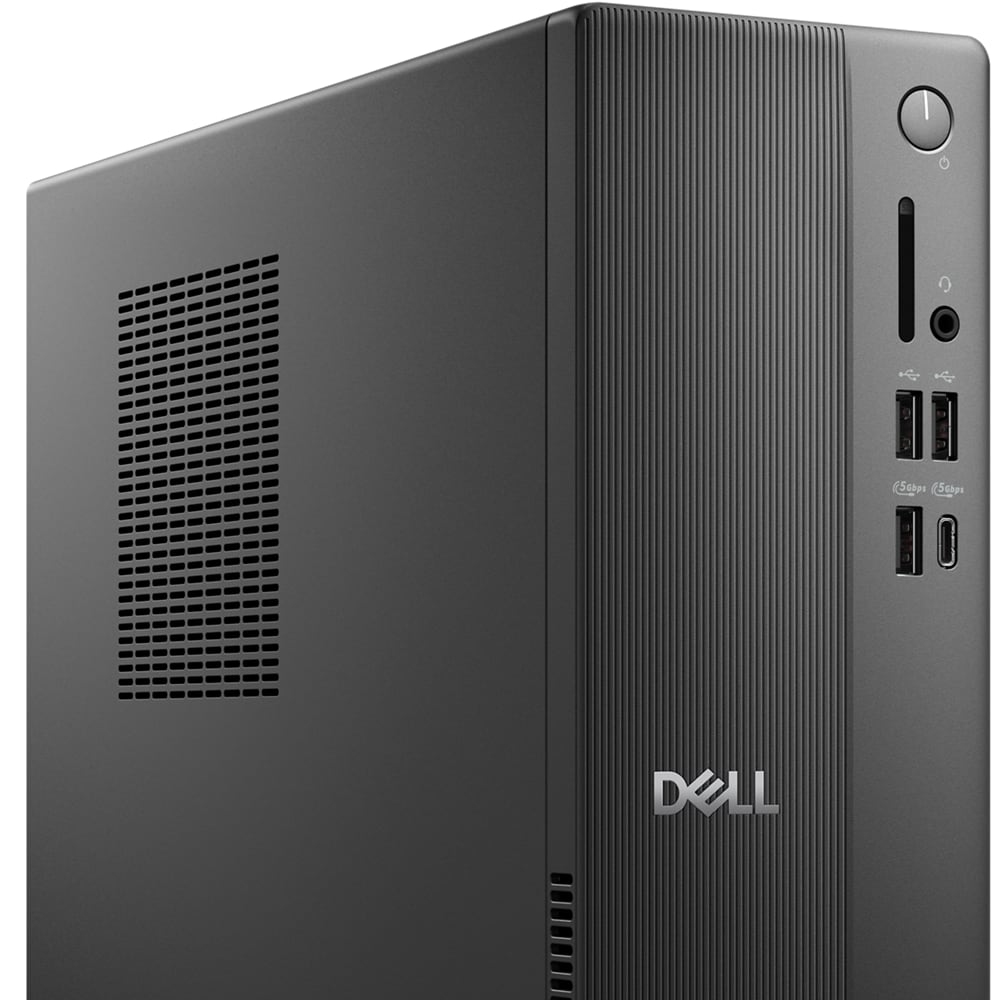

Connect all your devices: 8 total USB ports, including 4 convenient front-facing ports.
Easy access to external storage: Quickly transfer RAW images, videos and backups from your SD card with an optional SD card reader.
Wi-Fi 6/6E: Get faster downloads and avoid lag, buffering and congestion while working or video conferencing.
Effortless upgrades: The tool-less entry and removable side panel let you quickly access the internal components, making upgrades convenient and stress-free.
Maximise memory: Add up to 32GB DDR5 memory with two DIMM slots.
Expand storage: Your desktop is designed to support up to 2TB SSD and 2TB HDD storage, giving you the option to upgrade storage in the future.
Room to grow: Add additional sound cards or network cards with three PCIe expansion slots.
In addition, Dell products are developed with design for the environment in mind. Our environmental stewardship program drives conservation of product energy consumption, develops methods to reduce or eliminate materials for disposal, prolongs product life span, and provides effective and convenient equipment recovery solutions.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 5 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 225 |
| Processor cores | 10 |
| Processor threads | 10 |
| Processor boost frequency | 4.9 GHz |
| Performance cores | 6 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 4.9 GHz |
| Efficient-core Max Turbo Frequency | 4.4 GHz |
| Performance-core base frequency | 3.3 GHz |
| Efficient-core base frequency | 2.7 GHz |
| Processor cache | 20 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor base power | 65 W |
| Maximum turbo power | 121 W |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 23 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 4 TOPs |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x DIMM |
| Buffered memory type | Unregistered (unbuffered) |
| Memory data transfer rate | 4800 MT/s |
| Storage | |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 3.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Realtek RTL8111KD |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN controller manufacturer | MediaTek |
| WLAN controller model | MediaTek MT7920 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| MU-MIMO | Yes |

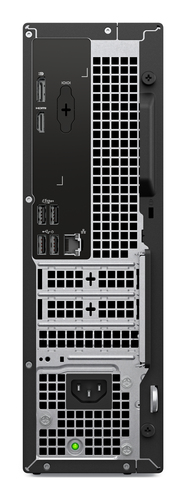

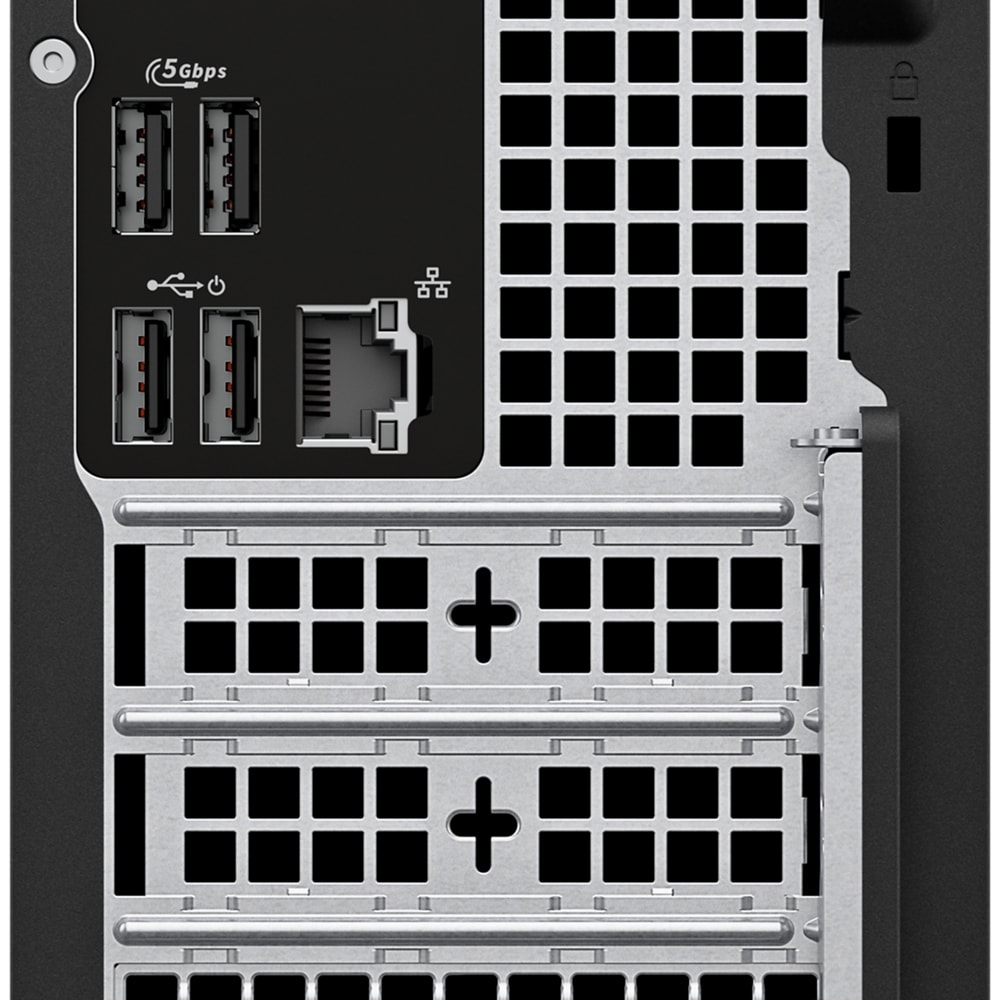

| Ports & interfaces | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Number of rear USB ports | 4 |
| Number of front USB ports | 4 |
| Number of SATA III connectors | 1 |
| Expansion slots | |
| PCI Express x1 slots | 3 |
| PCI Express x16 slots | 1 |
| Design | |
| Chassis type | Slim PC |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Performance | |
| Motherboard chipset | Intel Q670 |
| Audio chip | Realtek ALC3204 |
| Audio system | High Definition Audio |
| Trusted Platform Module (TPM) | Yes |
| Product type | PC |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Trial software | McAfee® Business Protection 1-year,Activate Your Microsoft 365 For A 30 Day Trial |
| Power | |
| Power supply | 180 W |
| Power supply input voltage | 90 - 264 V |
| Power supply input frequency | 47 - 63 Hz |
| 80 PLUS certification | 80 PLUS Bronze |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating vibration | 0.26 G |
| Non-operating vibration | 1.37 G |
| Operating shock | 40 G |
| Non-operating shock | 105 G |
| Weight & dimensions | |
| Width | 95 mm |
| Depth | 293 mm |
| Height | 303.5 mm |
| Packaging content | |
| Mouse included on selected markets | Dell Optical Mouse - MS116 (Black) |
| Keyboard included on selected markets | Dell Wired Keyboard - KB216 - UK (QWERTY) - Black |
| Cables included | AC |
| Carbon footprint | |
| Total carbon footprint (kg of CO2e) | 143 |
| Carbon emissions, manufacturing (kg of CO2e) | 68.068 |
| Carbon emissions, logistics (kg of CO2e) | 9.152 |
| Carbon emissions, energy usage (kg of CO2e) | 62.777 |
| Carbon emissions, end-of-life (kg of CO2e) | 3.003 |
| PAIA version | GaBi version 1, 2025 |
| Display | |
| Display included | No |
