D-Link DUF-E01/B laptop dock/port replicator
DUF-E01/B

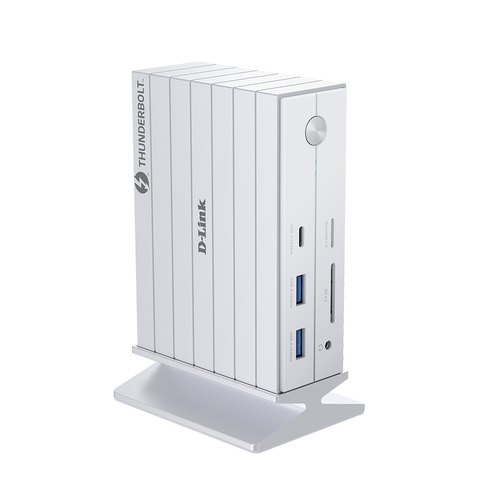

D-Link DUF-E01/B 14-in-1 Thunderbolt 4 Docking Station
- Brand
- D-Link
- Product code
- DUF-E01/B
- SKU
- GAP6UZC59V5AO
- Boost Productivity at Home: Use a USB docking station to elevate your workstation’s multitasking capabilities.
- Ultra-Fast Data Transfer: Thunderbolt 4 port delivers speeds up to 40 Gbps¹, ideal for external storage and recording devices.
- Centralised Port Control: A single power button switches all ports on or off simultaneously for convenience.
- Triple Display Support: HDMI 2.1, DisplayPort 1.4, and Thunderbolt 4 ports enable screen extension or mirroring across three displays.
- Efficient Thermal Design: Aluminium alloy casing with a detachable base enhances heat dissipation.
- Reliable Laptop Charging: Thunderbolt 4 port supports up to 60W of power delivery for fast and stable charging.
- Integrated Audio Support: 3.5mm combo audio jack allows for both audio output and microphone input.
- Stable Wired Connectivity: Gigabit Ethernet port ensures high-speed, reliable network access.
- Expanded Storage Options: SD and microSD card slots support SD 3.0 standard and cards up to 2 TB each.
Product Info
14-in-1 Thunderbolt 4 Docking Station
D-Link DUF-E01/B 14-in-1 Thunderbolt 4 Docking Station. Connectivity technology: Wired, Host interface: Thunderbolt 4. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: White, Compatible memory cards: MicroSD (TransFlash), Maximum memory card size: 2 TB. Power source type: Thunderbolt 4, Power supply: 135 W, Output voltage: 24 V. Width: 188 mm, Depth: 40 mm, Height: 125 mm
Expand from One Port to Fourteen:
Do more, Faster, with Thunderbolt 4
Docking Station
Boost productivity with a sleek USB docking station featuring triple display support, 40Gbps Thunderbolt 4, 60W charging, Gigabit Ethernet, SD slots, and one-touch power control.
Maximised Work Productivity
The consolidated connectivity answers your demand of any kind of connectivity through a single Thunderbolt 4 port connection
Clutter-free Desk
The all-in-one docking station connects to a host of devices and accessories to ease data accessibility for seamless gaming and streaming experiences
Time Efficiency
Thunderbolt 4's exceptional bandwidth boosts productivity in video production and data-intensive workflows, effortlessly managing multiple projects across several monitors
Streamlined Workflow
The variety of the connectors make it ideal for any workloads and optimal for multitasking in video editing or media streaming
Superior Multimedia Experience
Multiple displays provide immersive experience with 8K true-to-life visuals during content creation and gameplay
Fast Charging
Keep your devices fully charged with the simultaneous 60W and 15W power supplies while you work, eliminating downtime

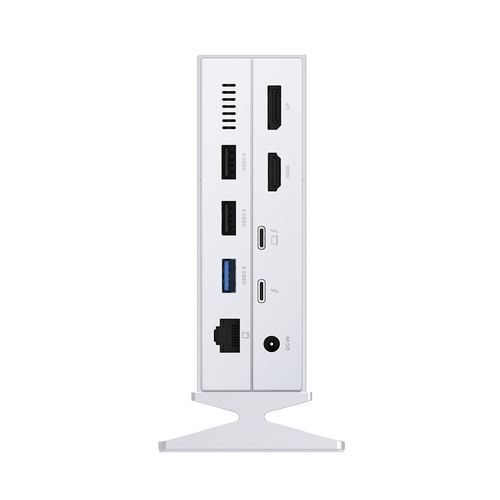

| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Thunderbolt 4 ports quantity | 1 |
| Headphone outputs | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 2 TB |
| HD type | 8K Ultra HD |
| Maximum digital resolution | 7680 x 4320 pixels |
| Product colour | White |
| Compatibility | FCC; CE |
| Power | |
| Power source type | Thunderbolt 4 |
| Power supply | 135 W |
| Output voltage | 24 V |
| Output current | 5.63 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 188 mm |
| Depth | 40 mm |
| Height | 125 mm |
| Weight | 1.2 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Cables included | Thunderbolt |
| AC adapter included | Yes |
| Quick start guide | Yes |
