D-Link DMC-F02SC/B network media converter

DMC-F02SC/B - 790069470042

D-Link 10/100BaseTX to 100BaseFX SC Multi-mode Media Converter (2 km)

Brand: D-Link
Product code: DMC-F02SC/B
SKU: S1CIRK63562S3
EAN/GTIN: 790069470042

Wired
100 Mbit/s 2000 m
Ethernet LAN (RJ-45) ports: 1 DC-in jack
SC
Black

€48.4 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

10/100Base-TX to 100Base-FX SC Multi-Mode Media Converter (2 km)

D-Link 10/100BaseTX to 100BaseFX SC Multi-mode Media Converter (2 km). Maximum data transfer rate: 100 Mbit/s, Converter input interface: 100Base-TX, Converter output interface: 100Base-FX. Maximum transfer distance: 2000 m. Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 5 V, Input current: 0.55 A, Power consumption (typical): 1.5 W

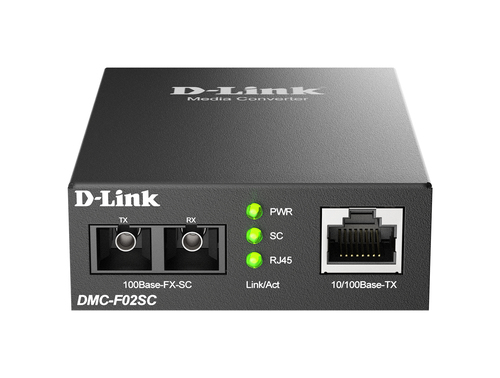

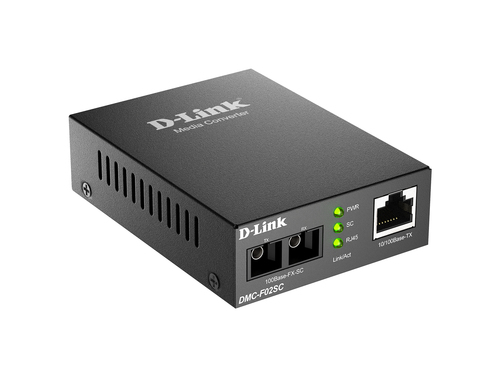

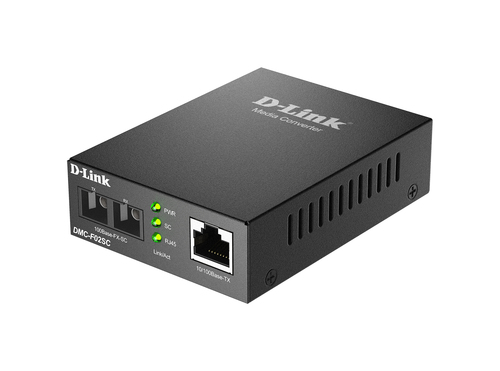

The DMC-F02SC is a standalone media converter designed to convert a twisted-pair 10/100Base- TX Fast Ethernet connection to a multi-mode fibre 100Base-FX Fast Ethernet connection to extend a connection distance (up to 2 km) between two devices. This media converter is equipped with one RJ-45 for twisted-pair and one fibre optic SC port.

Network
Maximum data transfer rate	100 Mbit/s
Converter input interface	100Base-TX
Converter output interface	100Base-FX
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet interface type	Fast Ethernet
Auto MDI/MDI-X	Yes
Performance
Maximum transfer distance	2000 m
Features
Internal	No
LED indicators	Yes
Product colour	Black
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber optic connector	SC

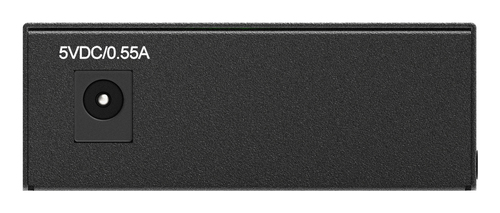

DC-in jack	Yes
Power
Input voltage	5 V
Input current	0.55 A
Power consumption (typical)	1.5 W
Weight & dimensions
Width	93.5 mm
Depth	70.5 mm
Height	26 mm
Weight	134 g
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Certificates
Safety	LVD
Certification	CE Class B
