D-Link DMC-G02SC/B network media converter

DMC-G02SC/B

D-Link 100/1000Base-t to 1000Base-SX SC Multi-mode Media Converter (550m)

Brand: D-Link
Product code: DMC-G02SC/B
SKU: FTZR7YLR9HULJ

Wired
1000 Mbit/s 550 m
Ethernet LAN (RJ-45) ports: 1 DC-in jack
Multi-mode SC

€67.62 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

100/1000Base-T to 1000Base-SX SC Multi-Mode Media Converter (550 m)

D-Link 100/1000Base-t to 1000Base-SX SC Multi-mode Media Converter (550m). Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-T, 1000Base-T, Converter output interface: 1000Base-SX. Maximum transfer distance: 550 m, Fiber mode structure: Multi-mode. LED indicators: Activity, Link, Power. Fiber optic connector: SC, Connectivity technology: Wired. Output voltage: 5 V, Output current: 0.55 A, Power consumption (max): 1.65 W

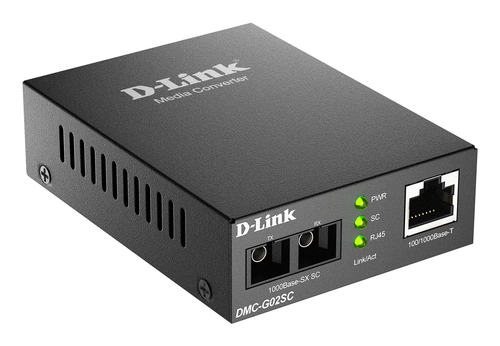

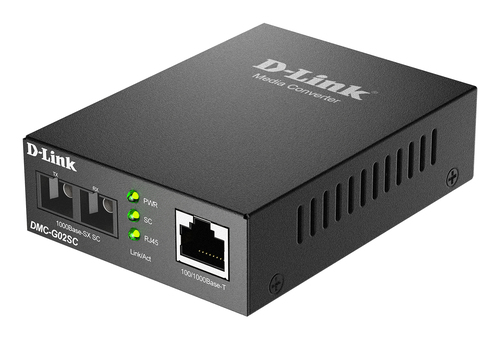

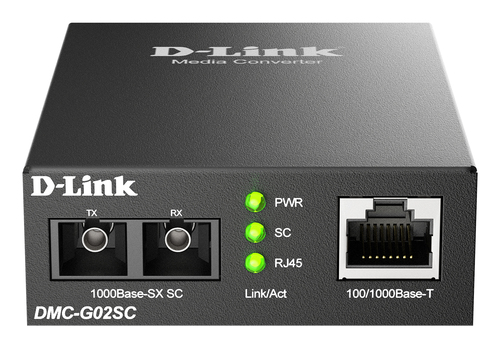

The DMC-G02SC is a media converter designed to convert a twisted-pair 100/1000Base-T Gigabit Ethernet connection to a multi-mode fibre 1000Base-SX Gigabit Ethernet connection to extend a connection distance (up to 550 m) between two devices. This media converter is equipped with one RJ-45 for twisted-pair and one fibre optic SC port.

Specifications

Network

Maximum data transfer rate 1000 Mbit/s

Converter input interface 10Base-T, 100Base-T, 1000Base-T

Converter output interface 1000Base-SX

Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Auto MDI/MDI-X Yes

Performance

Maximum transfer distance 550 m

Fiber mode structure Multi-mode

Features

Internal No

LED indicators Activity, Link, Power

Ports & interfaces

Connectivity technology Wired

Ethernet LAN (RJ-45) ports 1

Fiber optic connector SC

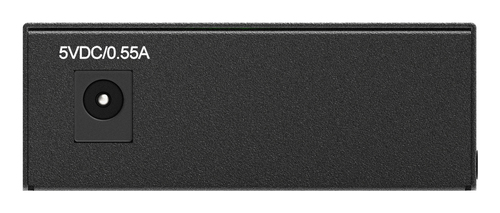

DC-in jack Yes

Power

Output voltage 5 V

Output current 0.55 A

Power consumption (max) 1.65 W

Weight & dimensions

Width 93.5 mm

Depth 70.5 mm

Height 26 mm

Weight 124 g

Operational conditions

Operating temperature (T-T) 0 - 55 °C

Storage temperature (T-T) -25 - 70 °C

Operating relative humidity (H-H) 20 - 80%
