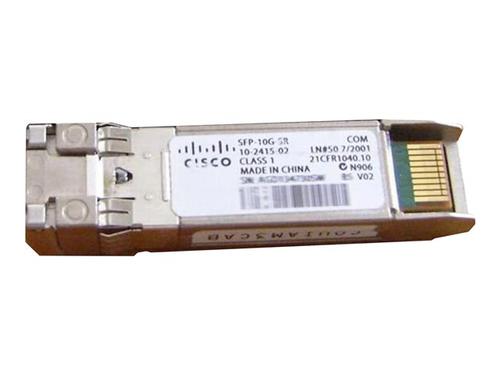

Cisco - SFP+ transceiver module - 10GbE

SFP-10G-SR-S= - 882658782466

Brand: Cisco
Product code: SFP-10G-SR-S=
SKU: LCUYJT2DRKTAC
EAN/GTIN: 882658782466

SFP+ transceiver module
10GbE
10GBase-SR
LC/PC multi-mode
up to 400 m
850 nm
Weight: 0.03 KG
Smallest 10G form factor
Commercial temperature (0 to 70°C) only
Supports 10GBASE Ethernet only
Hot-swappable input/output device that plugs in to an Ethernet SFP+ port of Cisco platforms
Provides flexibility of interface choice
Supports digital optical monitoring capability
Cisco quality identification (ID) feature that enables a Cisco platform to identify - optics supported by Cisco technology
Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link

€377.63 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

The Cisco 10GBASE-SR-S SFP Module delivers a wide variety of 10-Gigabit Ethernet connectivity options for data centre, enterprise server room and service provider transport applications. This hot-swappable input/output transceiver plugs into an Ethernet SFP+ port of a Cisco switch and offers optical interoperability with 10GBASE XENPAK, 10GBASE X2 and 10GBASE XFP interfaces on the same link.

Description

LINK LENGTH

Supports link lengths of 26 m on standard FDDI-grade multimode fiber; up to 300 m link lengths possible using OM3 and 400 m using OM4 (this model does not support Fiber Channel over Ethernet [FCoE])

COMPACT

Industry-smallest 10G form factor for greatest density per chassis

HOT SWAPPABLE

Plugs into an Ethernet SFP+ port of a Cisco switch with no need to shut down if installing or replacing

VERSATILITY

SFP receiver/transceiver module supports 'pay-as-you-populate' model for investment protection and ease of technology migration

PEACE OF MIND

5-year standard replacement warranty

Specifications

General

Form Factor Plug-in module

Device Type SFP+ transceiver module

Expansion / Connectivity

Interfaces 1 x Ethernet 10GBase-SR - LC/PC multi-mode x 2

Manufacturer Warranty

Service & Support Limited warranty - 1 year

Networking

Data Transfer Rate 10 Gbps

Optical Wave Length 850 nm

Max Transfer Distance 400 m

Compliant Standards IEEE 802.3ae

Connectivity Technology Wired

Cabling Type 10GBase-SR

Data Link Protocol 10GbE

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 70 °C

Dimensions & Weight

Width 1.3 cm

Depth 5.7 cm

Height 0.9 cm

Weight 75 g
