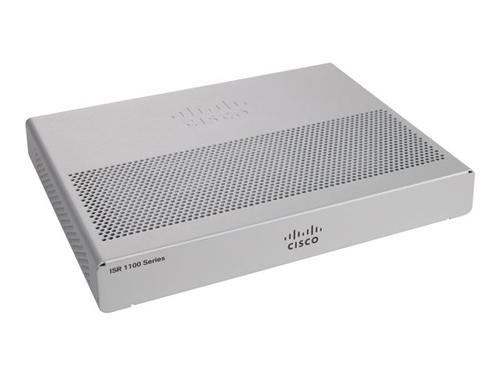

Cisco Integrated Services Router 1101 - router - rack-mountable

C1101-4P - 889728131049

Brand: Cisco
Product code: C1101-4P
SKU: 8KMEYD679CAPA
EAN/GTIN: 889728131049

Router 4-port switch
1GbE
rack-mountable
Weight: 1.64 KG
Perfect connectivity
Increased performance
Integrated enterprise-class security
Advanced wireless LAN

€1120.76 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

The Cisco C1101-4P Integrated Services Router with Cisco IOS XE Software combines wired and wireless internet connectivity and comprehensive security in a single, high-performance device. Lightweight and compact with low power consumption, this business router is an excellent choice for environments where space, heat dissipation and low power consumption are critical factors.

Description

PORT COUNT

4-port managed Gigabit Ethernet switch

CONNECTIVITY

Gigabit WAN port with integrated USB 3. 0 console

SECURITY

Multi-layer, robust security and high-performance VPNs encrypt all data from the WAN edge to the cloud

PERFORMANCE

Business router designed for broadband network speeds while running secure, concurrent data, voice, video and wireless services

PEACE OF MIND

1-year limited hardware warranty with 10-day advanced replacement

Specifications

General

Enclosure Type Rack-mountable

RAM 4 GB

Flash Memory 4 GB

Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet

Authentication Method RADIUS

Connectivity Technology Wired

Device Type Router - 4-port switch (integrated)

Network / Transport Protocol IPSec, PPPoE, DHCP, DNS, L2TPv3

Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP

Remote Management Protocol SNMP, RMON, CLI, TR-069

Encryption Algorithm DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA

Performance Encryption throughput: 350 Mbps

Compliant Standards IEEE 802.1Q, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.11r, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1, EN 60950-1, VCCI V-3, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, EN 300 386, IEC 60950-1 First Edition, CAN/CSA-C22.2 No. 60950-1, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13

Features CBWFQ, WRED, ACL support, QoS, DMVPN, NetFlow, MRC, IPFIX, CSD, LISP, packet aggregation A-MPDU, packet aggregation A-MSDU, MIB II, AVC, AAA, DFS, ERSPAN, EEM

Expansion / Connectivity

Interfaces WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFPLAN: 4 x 1000Base-T - RJ-45USB 3.0: 1 x

Manufacturer Warranty

Service & Support Limited warranty - advance parts replacement - 1 year - response time: 10 days

Miscellaneous

Rack Mounting Kit Optional

Power

Voltage Required AC 100-240 V (50/60 Hz)

Power Consumption Operational 30 watt

Power Device External power adapter - 30 watt

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 40 °C

Humidity Range Operating 10 - 85% (non-condensing)

Dimensions & Weight

Depth 15.24 cm

Width 19.05 cm

Height 2.79 cm

Weight 1.76 kg
