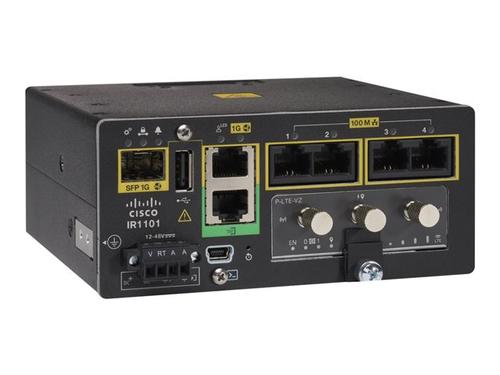

Cisco Industrial Integrated Services Router 1101 - router - desktop

IR1101-K9-DST

Brand: Cisco
Product code: IR1101-K9-DST
SKU: YVXPPLM1A89BV

Router 4-port switch
1GbE
WAN ports: 2
Future-proof your IoT deployments
Connect reliably, concurrently, and at a high speed
Install it almost anywhere
Scale, with simplicity and unified management
Qualify and securely deploy services more quickly

€1512.28 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

Cisco IR1101 delivers secure IoT connectivity for today and the future. Its 5G ready modular design allows you to upgrade to new communications protocols when they become available, avoiding costly rip-and-replace. Add or upgrade WAN, edge compute and storage components as technologies and your needs evolve. With its rugged hardware and compact form-factor, you can install it almost anywhere.

Description

Modularity and investment protection

A single form factor with multiple WAN (LTE, LTE-Advanced, SFP Ethernet) and storage options enable flexibility to add or upgrade modules as technologies evolve.

Industrial security

Multi-layer security for mission-critical deployments. Cisco Trust Anchor technologies to ensure authenticity of hardware and software; hardware-accelerated next-generation encryption and Quantum computer-resistant algorithms; firewall and VPN services; and alerts and notifications for physical and cyber security.

Specifications

General

Enclosure Type Desktop

RAM 4 GB

Flash Memory 4 GB

Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet

Connectivity Technology Wired

Device Type Router - 4-port switch (integrated)

Compliant Standards IP30

Remote Management Protocol DHCP, IPv4, IPv6, MIB

Network / Transport Protocol DHCP, DDNS, IPv4, IPv6, L2TPv3, IPSec, HTTP, HTTPs, FTP, RTP, cRTP

Routing Protocol RIP-1, RIP-2, GRE, MGRE, STP, OSPFv2, OSPFv3, EIGRP, BGP, VRF, NHRP, RSVP, VRRP, HSRP

Encryption Algorithm SSL, PKI, 256-bit AES, 384-bit SHA, 512-bit SHA

Features NAT support, DHCP server, DHCP relay, DHCP client, DNS proxy, DNS spoofing, ACL support, Cisco IP SLA, NAT transparency, DMVPN, Stateful Failover, SPI, Port Security, VRF, CoPP, QoS, LLQ, WFQ, CBWFQ, CBTS, CBTP, policy based routing, CoS, DSCP support, CBWRED, DiffServ support, HQoS, Backhaul Technology

Expansion / Connectivity

Expansion Slots 1 (total) / 1 (free) x expansion slot

Interfaces WAN: 1 x 1000Base-T - RJ-45WAN: 1 x 1000Base-X - SFP (mini-GBIC)USB 2.0: 1 x 4 pin USB Type ASerial: 1 x RJ-45LAN: 4 x 100Base-TX - RJ-45Console: 1 x USB 2.0 - mini-USB Type A

Manufacturer Warranty

Service & Support Limited warranty - replacement - 5 years - response time: 10 days

Power

Voltage Required DC 12 - 48 V

Power Device External power adapter

Software / System Requirements

OS Required Cisco IOS XE 16.10.1 or later

Environmental Parameters

Max Operating Temperature 60 °C

Min Operating Temperature -40 °C

Dimensions & Weight

Height 6 cm

Weight 1.02 kg

Width 13.25 cm

Depth 12.49 cm
