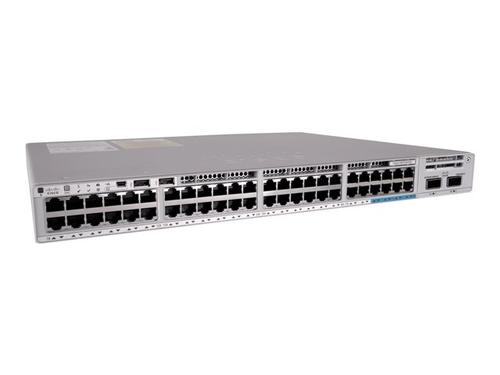

Cisco Catalyst 9200L - Network Essentials - switch - 48 ports - Managed - rack-mountable

C9200L-48PXG-4X-E - 889728170222

Brand: Cisco
Product code: C9200L-48PXG-4X-E
SKU: X2YN9BZ9MSIZZ
EAN/GTIN: 889728170222

Network Essentials
switch
L3
Managed
12 x 100/1000/2.5G/5G/10GBase-T + 36 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)
rack-mountable
PoE+ (1440 W)
Weight: 8.36 KG

€6739.73 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

The Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT SIMPLIFIED.

Description

CONFIGURATION

12 x 1/2. 5/5/10G Ethernet with PoE+, 36 x 10/100/1000M Ethernet with PoE+, 4 x 10G SFP+ uplinks, 740W total PoE budget

IT SIMPLIFIED

Catalyst 9200 Series switches simplify complexity, optimize IT, and reduce operational costs with Cisco UADP ASIC and Cisco IOS XE providing consistency, intelligence and automation

SECURE

Enhanced security with MACsec encryption, full flexible NetFlow, and trustworthy solutions that protect the integrity of the hardware as well as the software and all data that flows through the switch

ALWAYS-ON

Differentiated resiliency with Field-Replaceable Units (FRU) and redundant power supplies, redundant fans, 80 Gbps backplane stacking, and layer 3 support

MANAGEMENT

Choice of CLI, Cisco Catalyst Center (formerly Cisco DNA Center) on-premises management, or cloud monitoring for Catalyst on Meraki dashboard

Specifications

General

Enclosure Type Rack-mountable

RAM 2 GB

Flash Memory 4 GB

Subtype Gigabit Ethernet

PoE Budget 1440 W

Encryption Algorithm 128-bit AES

Power Over Ethernet (PoE) PoE+

Device Type Switch - 48 ports - L3 - Managed - stackable

MAC Address Table Size 16000 entries

Jumbo Frame Support 9198 bytes

Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF

Capacity Virtual networks: 1IPv4 routes: 11000IPv4 routing table entries: 3000IPv6 routing table entries: 1500Multicast scale: 1000ACL scale entries: 1500FNF entries: 16000VLANs supported: 1024Switched virtual interfaces (SVIs): 512QoS hardware queues per port: 8

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bz

Routing Protocol OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP

Ports 12 x 100/1000/2.5G/5G/10GBase-T + 36 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)

Performance Stacking bandwidth: 80 GbpsSwitching capacity: 392 GbpsForwarding rate: 291.66 Mpps

Features QoS, Cisco StackWise Technology, Rapid PVST+, SRR, PXE support, RSPAN, NetFlow, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, 6MB packet buffer, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR

Expansion / Connectivity

Interfaces 12 x 100/1000/2.5G/5G/10GBase-T RJ-4536 x 1000Base-T RJ-45 PoE+4 x 10GBase-X SFP+ uplink1 x network stack device1 x management (LAN) RJ-451 x console RJ-45

Manufacturer Warranty

Service & Support Limited warranty - advance parts replacement - lifetime - response time: next business day

Miscellaneous

MTBF 337,360 hours

Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35

Power

Max Supported Qty 2

Power Redundancy Optional

Power Device Internal power supply - hot-plug

Voltage Required AC 100-240 V (50 - 60 Hz)

Environmental Parameters

Min Operating Temperature -5 °C

Max Operating Temperature 45 °C

Max Storage Temperature 70 °C

Min Storage Temperature -40 °C

Humidity Range Operating 5 - 90% (non-condensing)

Humidity Range Storage 5 - 90% (non-condensing)

Dimensions & Weight

Width 44.5 cm

Height 4.4 cm

Depth 35 cm

Weight 5.71 kg
