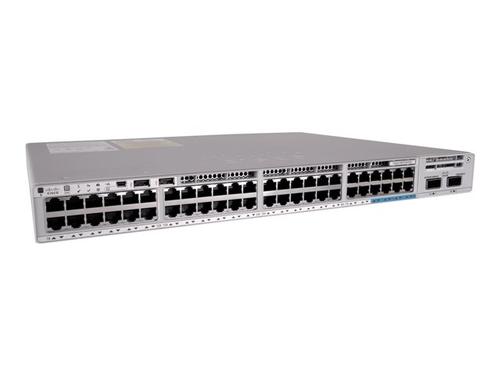

Cisco Catalyst 9200 - Network Essentials - switch - 48 ports - smart - rack-mountable
C9200-48PXG-E - 889728168274
Cisco Catalyst 9200 - Network Essentials - switch - 48 ports - smart - rack-mountable
- Brand
- Cisco
- Product code
- C9200-48PXG-E
- SKU
- ROF1944CIM3F5
- EAN/GTIN
- 889728168274
- Network Essentials
- switch
- L3
- smart
- 40 x 10/100/1000 (PoE+) + 8 x 100/1000/2.5G/5G/10GBase-T
- rack-mountable
- PoE+ (740 W)
- Weight: 8.12 KG
- Super secure
- Always on
€5716.64
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
The Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT SIMPLIFIED.
Description
CONFIGURATION 8 x 1/2. 5/5/10G Ethernet with PoE+, 40 x 10/100/1000M Ethernet with PoE+, 740W total PoE budget IT SIMPLIFIED Catalyst 9200 Series switches simplify complexity, optimize IT, and reduce operational costs with Cisco UADP ASIC and Cisco IOS XE providing consistency, intelligence and automation SECURE Enhanced security with MACsec encryption, full flexible NetFlow, and trustworthy solutions that protect the integrity of the hardware as well as the software and all data that flows through the switch ALWAYS-ON Differentiated resiliency with Field-Replaceable Units (FRU) and redundant power supplies and fans, modular uplinks, 160 Gbps backplane stacking and layer 3 support MANAGEMENT Choice of CLI, Cisco Catalyst Center (formerly Cisco DNA Center) on-premises management, or cloud monitoring for Catalyst on Meraki dashboard| General | |
|---|---|
| Enclosure Type | Rack-mountable |
| RAM | 4 GB |
| Flash Memory | 4 GB |
| Subtype | Gigabit Ethernet |
| Encryption Algorithm | 128-bit AES |
| PoE Budget | 740 W |
| Power Over Ethernet (PoE) | PoE+ |
| Built-in Devices | RFID tag |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Device Type | Switch - 48 ports - L3 - smart - stackable |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz |
| Routing Protocol | OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MSTP |
| Ports | 40 x 10/100/1000 (PoE+) + 8 x 100/1000/2.5G/5G/10GBase-T |
| Performance | Stacking bandwidth: 160 GbpsSwitching bandwidth: 400 GbpsSwitching capacity with stacking: 580 GbpsForwarding rate: 297.61 MppsForwarding rate with stacking: 431 Mpps |
| Capacity | QoS scale entries: 1000ACL scale entries: 1600IPv4 routing table entries: 4000IPv6 routing table entries: 2000Packet buffer size: 6 MBVLAN IDs: 4096Switched virtual interfaces (SVIs): 1000Flexible NetFlow entries: 16000 |
| Features | ARP support, STP support, QoS, Rapid PVST+, SRR, PXE support, RSPAN, Energy Efficient Ethernet, MIB, CoS, FNF, Cisco StackWise-160 technology, DSCP support, MACsec support, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x Expansion Slot |
| Interfaces | 40 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W8 x 100/1000/2.5G/5G/10GBase-T RJ-451 x management (LAN) RJ-451 x console RJ-451 x network stack device |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business dayTechnical support - phone consulting - 90 days |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
| MTBF | 320,440 hours |
| Power | |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Device | Internal power supply - hot-plug |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Power Provided | 1000 watt |
| Environmental Parameters | |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Height | 4.4 cm |
| Depth | 39 cm |
| Width | 44.4 cm |
| Weight | 5.44 kg |
