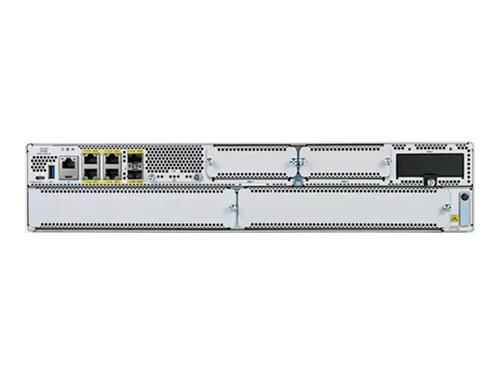

Cisco Catalyst 8300-2N2S-6T - router - rack-mountable

C8300-2N2S-6T - 889728309462

Brand: Cisco
Product code: C8300-2N2S-6T
SKU: 2W0EM6OXZG21W
EAN/GTIN: 889728309462

Router 1GbE
rack-mountable
for P/N: C8300-DNA, UCS-E1100D-M6
Weight: 17.80 KG
Intel x86 CPU with 8-GB memory default
High-performance multicore processors support high-speed WAN connections
Dynamic core allocation architecture that can leverage data plane cores for I/O and service plane as per-user configuration
Increases scalability for IPSec throughput needs for medium- and large-sized branches
SSL and crypto hardware acceleration
Hardware-anchored Secure Boot and Secure Unique Device Identification (SUDI) support for Plug-and-Play to verify the identity of the hardware and software

€11926.58 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

Cisco Catalyst 8300 series Edge Platforms (Catalyst 8300) with Cisco IOS XE SD-WAN Software deliver Cisco's secure, cloud-scale SD-WAN solution for the branch. The Catalyst 8300 series is purpose-built for high performance and integrated SD-WAN Services along with flexibility to deliver security and networking services together from the cloud or on premises. It provides higher WAN port density and a redundant power supply capability. Catalyst 8300 series Edge Platforms also come with Trustworthy Solutions 2.0 infrastructure that secures the platforms against threats and vulnerabilities with integrity verification and remediation of threats.

The Catalyst 8300 series Edge Platforms are well suited for medium-sized and large enterprise branch offices for high WAN IPSec performance with integrated SD-WAN services.

Description

Robust security Equipped with advanced encryption algorithms including 256-bit AES, Triple DES, and SHA-512, ensuring secure data protection and communication channels for all your network transactions. High-capacity performance Boasts impressive capacity with up to 1. 9 Gbps SD-WAN IPsec throughput, 19. 7 Gbps IPv4 forwarding throughput, and support for up to 1. 6 million IPv4 routes, catering to high-demand network environments. Comprehensive connectivity Features a wide array of interfaces including Ethernet 1000Base-T for WAN/LAN, USB, and expansion slots for service modules, NIM, and PIM, providing versatile connectivity options for various network setups. Advanced networking features Supports a suite of sophisticated networking features such as Application Aware Routing (AAR), Quality of Service (QoS), and SD-WAN support, enhancing network efficiency and reliability. Durable and reliable Designed for longevity with a mean time between failures (MTBF) of 710,300 hours and compliance with multiple safety and environmental standards, ensuring dependable operation in diverse conditions.

General
Device Type	Router
Data Link Protocol	Gigabit Ethernet
Processor	Intel
Flash Memory	8 GB
Hard Drive	16 GB
Connectivity Technology	Wired
Enclosure Type	Rack-mountable - 2U
RAM	8 GB (installed) / 32 GB (max)
Performance	SD-WAN IPsec throughput (1400Bytes, clear text): up to 1.9 GbpsSD-WAN IPsec throughput (IMIX, clear text): 1.75 GbpsIPv4 forwarding throughput (1400-byte packet size): 19.7 GbpsIPsec throughput (1400Bytes, clear text): up to 1.9 Gbps
Capacity	SD-WAN overlay tunnels scale: 6000IPsec SVTI tunnels: 4000ACL: 4000Access Control Entries (ACEs) per system (IPv4): 72000IPv4 routes: 1600000IPv6 routes: 1500000Queues: 16000NAT sessions: 1200000Firewall sessions: 512000Virtual Routing and Forwarding (VRF) entries: 4000
Network / Transport Protocol	IPSec, IPv4, IPv6, RSVP, DHCP, DNS, L2TPv3, PPPoE, RTP, RTCP, NTP
Routing Protocol	Static IP routing, RIP-1, RIP-2, OSPF, EIGRP, BGP, IS-IS, IGMPv3, PIM-SM, PIM-SSM, RSVP, LISP, HSRP, Bidirectional Forwarding Detection (BFD), GRE, policy-based routing (PBR), VRRP, MPLS, OSPFv3, DVMRP
Remote Management Protocol	DHCP, RADIUS, OMP, SNMP, NTP, SSH, SCP, NETCONF, CLI
Encryption Algorithm	SSL, IKE, DES, 128-bit AES, 256-bit AES, Triple DES, 1024-bit RSA, 2048-bit RSA, 748-bit RSA, ECDSA 256-bit, ECDSA 384-bit, MD5, SHA, 256-bit SHA, 384-bit SHA, 512-bit SHA, DTLS, TLS, PKI, HMAC, ESP, SHA-1, SHA-2, 256-bit AES-CBC, 256-bit AES-GCM
Authentication Method	RADIUS, Secure Shell (SSH)
Features	SD-WAN support, SUDI, QoS, firewall protection, NAT support, NBAR, FNF, Cisco UADP, ERSPAN, Cisco IPSLA, EEM, ACL support, EVC, AAA, AVC, PPP, MLPPP, MLFR, HDLC, CBWFQ, WRED, PfR, CAC, IVR, SAF, AAR, DNS client, DHCP client, PAT support, DHCP server, Syslog support, IPFIX, NTP server, FEC
Compliant Standards	IEEE 802.1ag, IEEE 802.3ah, IEEE 802.1Q, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1, IEC/EN 60825, FDA, AS/NZS CISPR 32 Class A, CISPR 32 Class A, CNS 13438 Class A, EN 300 386, EN 55032, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN55024, FCC CFR47 Part 15 B Class A, ICES-003 Class A, IEC 61000-3-2, IEC 61000-3-3, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, KN32 Class A, KN35
Expansion / Connectivity
Installed Modules Qty (Max)	0 (installed) / 5 (max)
Interfaces	WAN / LAN: 6 x 1000Base-TUSB: 1 x
Expansion Slots	2 (total) / 2 (free) x service module (SM)2 (total) / 2 (free) x NIM1 (total) / 1 (free) x Pluggable Interface Module (PIM)
Miscellaneous
MTBF	710,300 hours
Power
Power Device	Internal power supply
Software / System Requirements
OS Required	Cisco IOS XE 17.3.2
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	5 - 85% (non-condensing)
Dimensions & Weight
Width	43.8 cm
Depth	47 cm
Weight	18.1 kg
Height	8.89 cm
IP Telephony
VoIP Protocols	SIP, SRTP
Compatibility Information
Designed For	P/N: C8300-DNA, UCS-E1100D-M6
