Chief XSD1U-UK signage display mount
XSD1U-UK - 841872173368

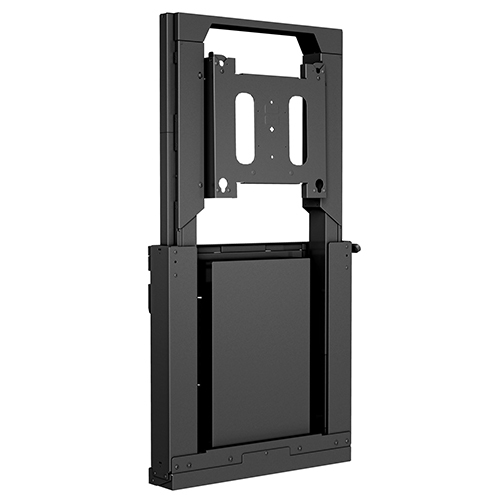

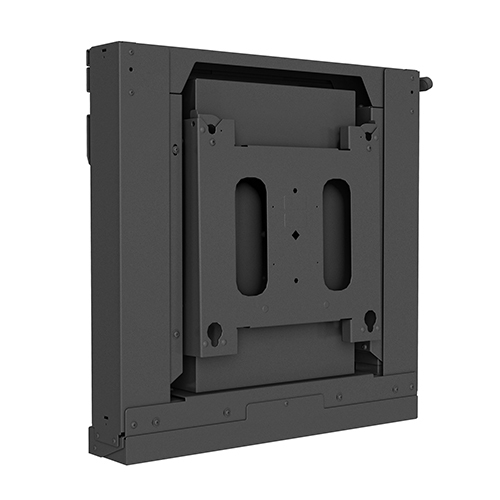

Chief XSD1U-UK signage display mount 2.03 m (80") Black
- Brand
- CHIEF MOUNTS
- Product code
- XSD1U-UK
- SKU
- P7A5UWPLCX5C8
- EAN/GTIN
- 841872173368
- Accommodates typical large displays between 50-80" up to 310 lbs (140.6 kg) with VESA® 200 x 200 – 860 x 510 mm
- Anti-collision sensor immediately halts, then reverses motion of display upon encountering an obstruction to avoid pinching fingers or damaging technology
- ControlZone for post-installation fine-tuning of height and leveling
- Ships fully assembled
- Integrated cable management and strain relief protects traveling cable from disconnecting
- Control pad included. Optional accessories sold separately; Remote Control Kit PACREM (includes remote and Bluetooth™ dongle) or choose Bluetooth Dongle PACBLU to access phone app
- A full line of accessories can be installed with mount, including shelves, padlock and speaker adapters
€1546.63
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
140 kg, VESA, 679.6 x 148 x 684.3 - 1335.4 mm, UK
Chief XSD1U-UK. Maximum weight capacity: 140.6 kg, Minimum screen size: 127 cm (50"), Maximum screen size: 2.03 m (80"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 860 x 510 mm. Height adjustment range: 0 - 660 mm. Product colour: Black
Ideal for interactive applications, this solution comes with electric height adjust capability to create better accessibility to technology in the boardroom and the classroom. The height adjustable solution provides 26” (660 mm) of vertical lift.
| Mounting | |
|---|---|
| Maximum weight capacity | 140.6 kg |
| Minimum screen size | 127 cm (50") |
| Number of displays supported | 1 |
| Maximum screen size | 2.03 m (80") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 860 x 510 mm |
| Panel mounting interface | 200 x 200,860 x 510 mm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Electric |
| Height adjustment range | 0 - 660 mm |
| Cable management | Yes |
| Design | |
| Product colour | Black |
| Certification | UL, TÜV |
| Weight & dimensions | |
| Width | 676.6 mm |
| Depth (max) | 14.8 cm |
| Height | 684.3 mm |
| Packaging content | |
| Mounting kit | Yes |
| Cables included | AC |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
