Chief TS318TU TV mount/stand
TS318TU - 841872149387

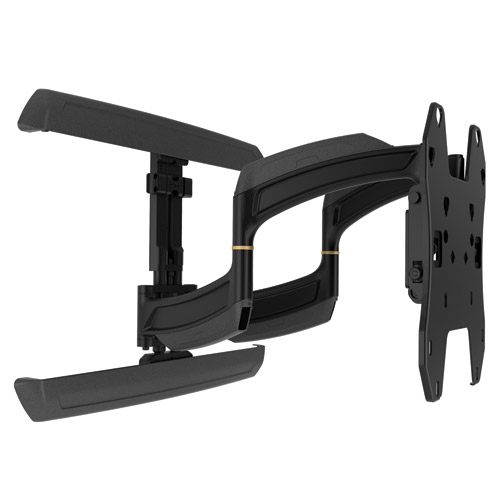

Chief TS318TU TV mount/stand 132.1 cm (52") Black
- Brand
- CHIEF MOUNTS
- Product code
- TS318TU
- SKU
- VU61BLHGL5MFV
- EAN/GTIN
- 841872149387
- Maximum weight capacity: 34 kg
- Minimum screen size: 66 cm (26") Maximum screen size: 132.1 cm (52") Wall
- Minimum VESA mount: 100 x 100 mm Maximum VESA mount: 600 x 400 mm
- Metal Black
Product Info
TS318TU, Medium THINSTALL Dual Swing Arm Wall Mount - 18" Extension
Chief TS318TU. Maximum weight capacity: 34 kg, Minimum screen size: 66 cm (26"), Maximum screen size: 132.1 cm (52"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: 15 - -15°, Swivel angle range: -90 - 90°, Distance to the wall (min): 12.7 cm, Distance to the wall (max): 46.2 cm. Product colour: Black
A lightweight, low-profile full-motion wall mount for TVs 26-52”. Easily installs with one person by mounting the top rail and sliding on the assembly.
Features

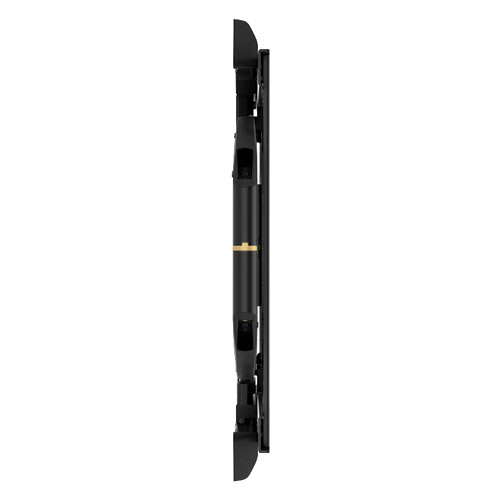

- Ultra Low Profile Sleek design collapses to 1.3” (33 mm), providingan ultra-low profile for all types of TVs, including LED, LCD and Plasma.
- Extends up to 18” (457 mm) Full extension maximizes viewing potential.
- Centris™ low-profile tilt Provides up to 15° of effortless fingertip tilt toachieve optimal viewing angles.
- Centerless™ Lateral Shift Post-installation lateral shift allows up to 16”(406 mm) of adjustment for limitless centering capability.
- Integrated Cable Management Enclosed, tool-free cable covers and a wideopen wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation.
- Post Installation Height Adjustment A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment
| Mounting | |
|---|---|
| Maximum weight capacity | 34 kg |
| Minimum screen size | 66 cm (26") |
| Maximum screen size | 132.1 cm (52") |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 100 x 100,200 x 200,600 x 400 |
| Mounting type | Wall |
| Ergonomics | |
| Tilt angle range | 15 - -15° |
| Swivel angle range | -90 - 90° |
| Distance to the wall (max) | 46.2 cm |
| Distance to the wall (min) | 12.7 cm |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| Certification | UL |
| Packaging content | |
| Manual | Yes |
| Weight & dimensions | |
| Width | 574 mm |
| Depth | 33 mm |
| Height | 437 mm |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
| Other features | |
| Quantity | 1 |
| Screen size compatibility | 660.4 - 1320.8 mm (26 - 52") |
